2.162 Changing the drivebelt
a) Removal of engine housing
b) Removal of alloy lid on the left half of the enginecase underneath the blower by unscrewing
the two upper and loosening the lower cylinderscrew.
c) Remove lower drivebelt disc (right-hand-thread) using a 19mm socket and remove disc.

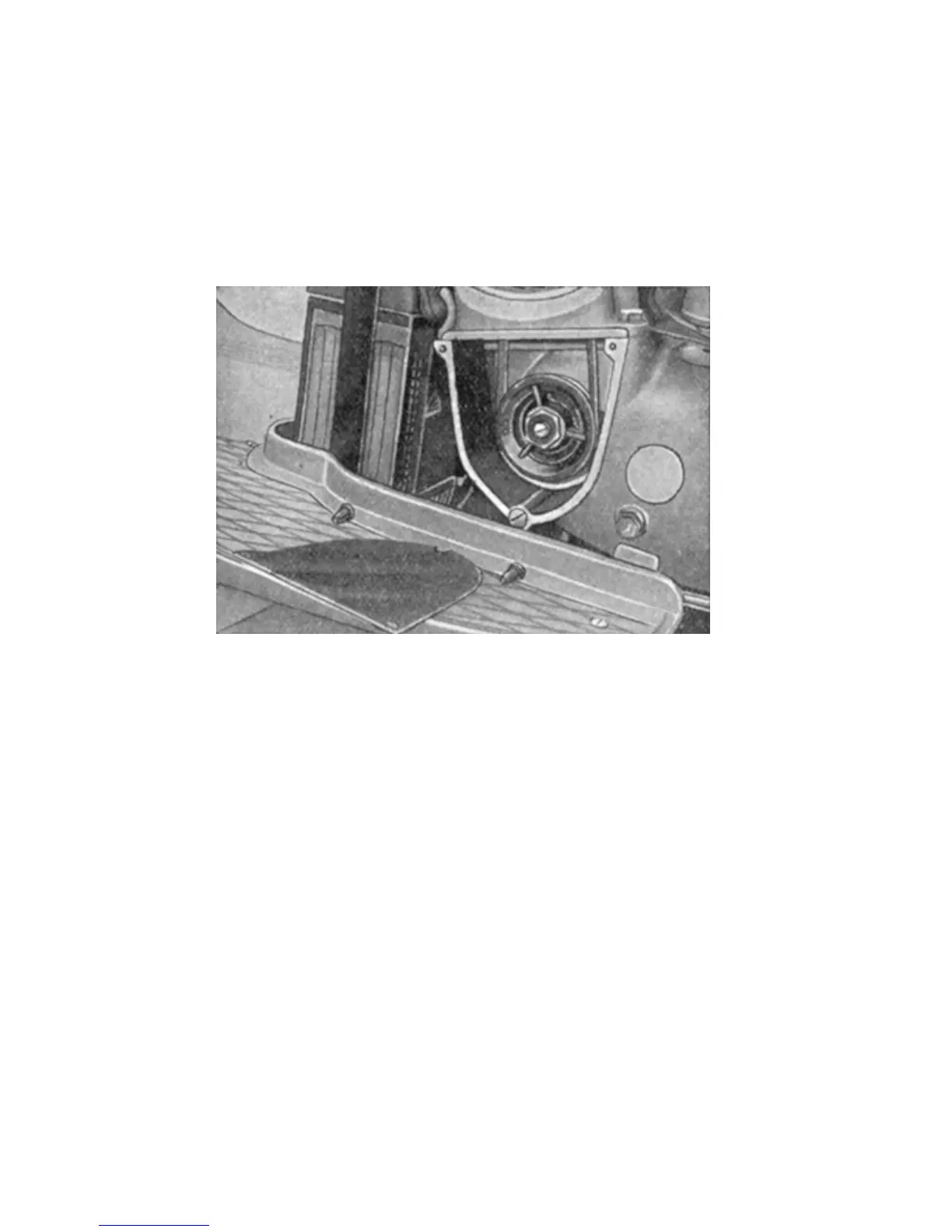

Image 15. Belt drive
d) Unscrew the three screws of the guide rim and remove the guide rim. On the extenstion of the
guide rim you you have the flywheel and the drivebelt disc. Now you can install the new drive belt.
(A reserve belt is in the toolbox).
e) Repeat steps a) through d) in reverse order.
