2.331 Disassembling the rear wheel suspension
1. Remove rear wheel (see section 2.351)
2. Remove rear hub with chain drive (see section 2.341)
3. Remove axle retainer by unscrewing the rear swinging bolts
4. The upper swinging arms can be removed by removing the long hexagonal at the
rubber bushing.

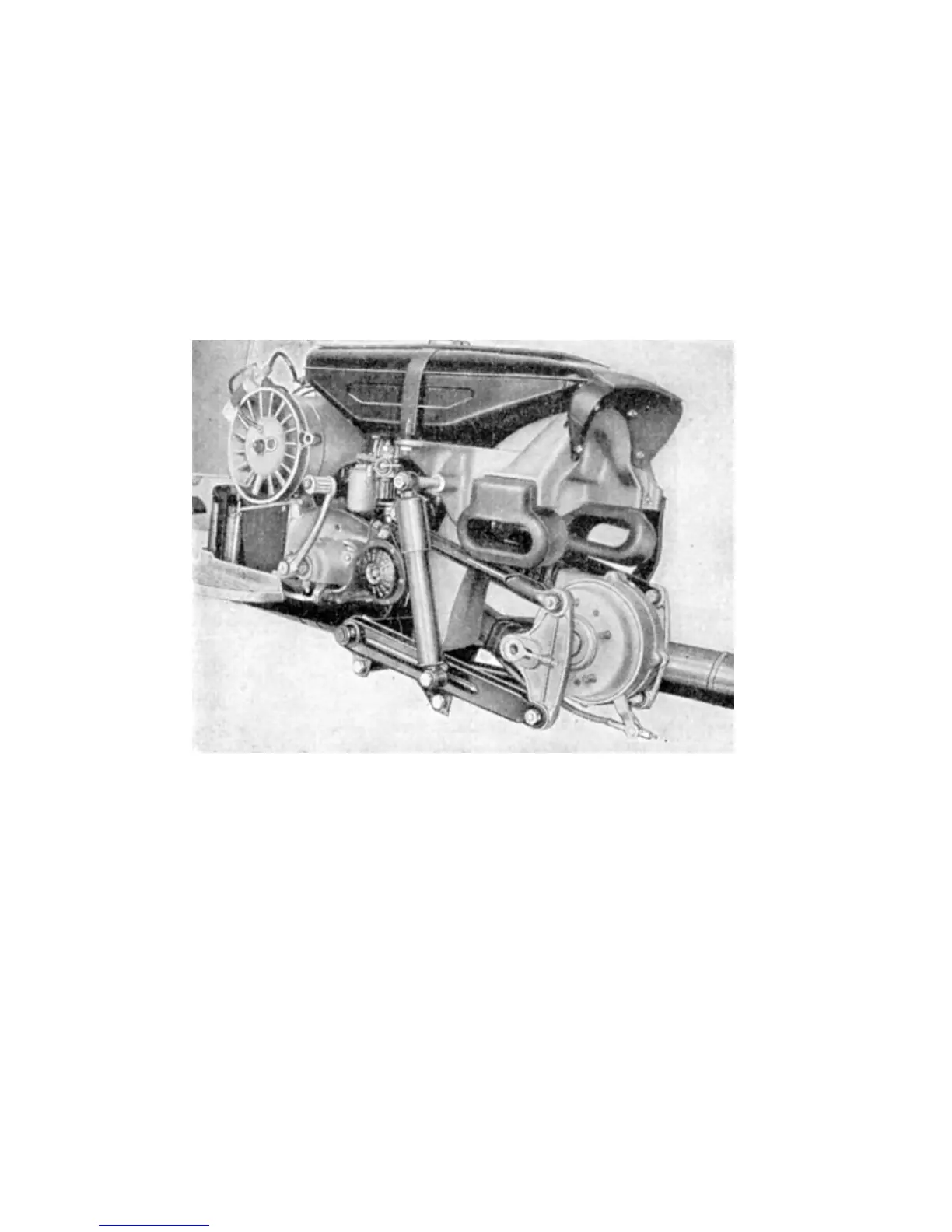

Image 37. Rear wheel rocker
5. Remove hydraulic shock.
6. Losen stabilizer by removing hexagonal nuts.
7. Remove lock rings from torsion spring
8. Using a hammer and a mandrel, the torsion spring can now be hammered out of its
sprocket seat. Caution: This task needs to be performed with great care, to avoid
damaging of the sprockets.
