3.101 Choke lever
The choke lever is mounted on the handlebar and controls the air slide gate of the carburetor. If the
lever is pushed forward (in driving direction), it closes the carburetor´s intake manifold partially
resulting in a thicker ratio necessary for cold start.
After startup, the lever should slowly be pulled back to avoid unwanted oversaturation of the ratio. If
the engine is still warm from previous use, the choked needn´t be closed (pushed forward) because
it tends to stall the engine. Applying the dabber also stalls an already warm engine.

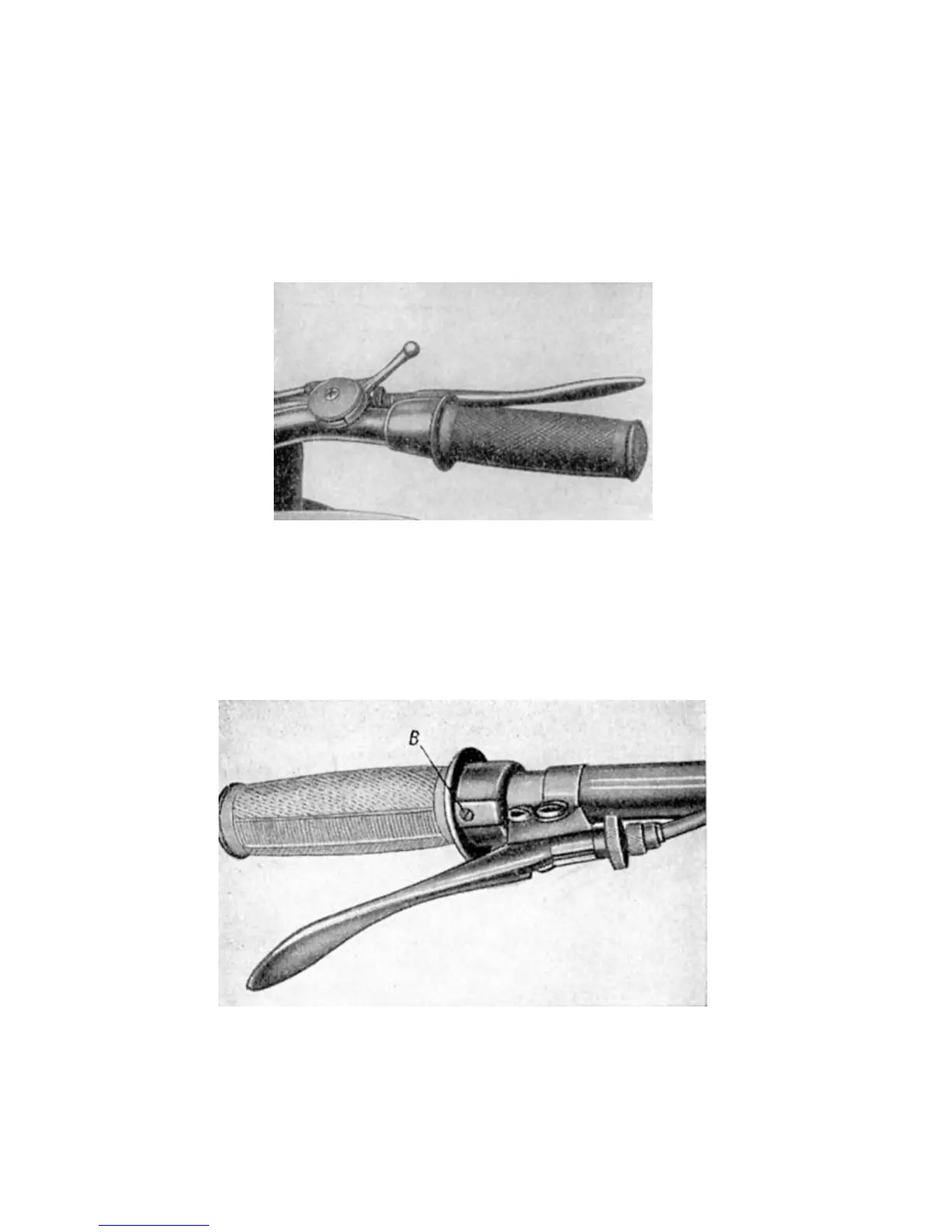

Image 51. Handlebar with choke
3.102 Throttle
The position of the carburetor´s round slidegate and thus the engines rpm´s are determined by the
throttle control on the right hand side of the handle bar.
Image 52. Throttle setting
(B) Adjusting screw for stoppage in the handle
An adjustment screw labled „Bremse“ (engl. Brake) is installed in the turning handle and can be
used to set the smooth running of the throttle according to the personal prefernce of the driver.
