3.107 Foot gear switch
The foot gear switch is located on the left hand side of the floor board. Actuating the gear switch will
cause the switch shaft, which is beared within sleeve shaft of the kickstart to change

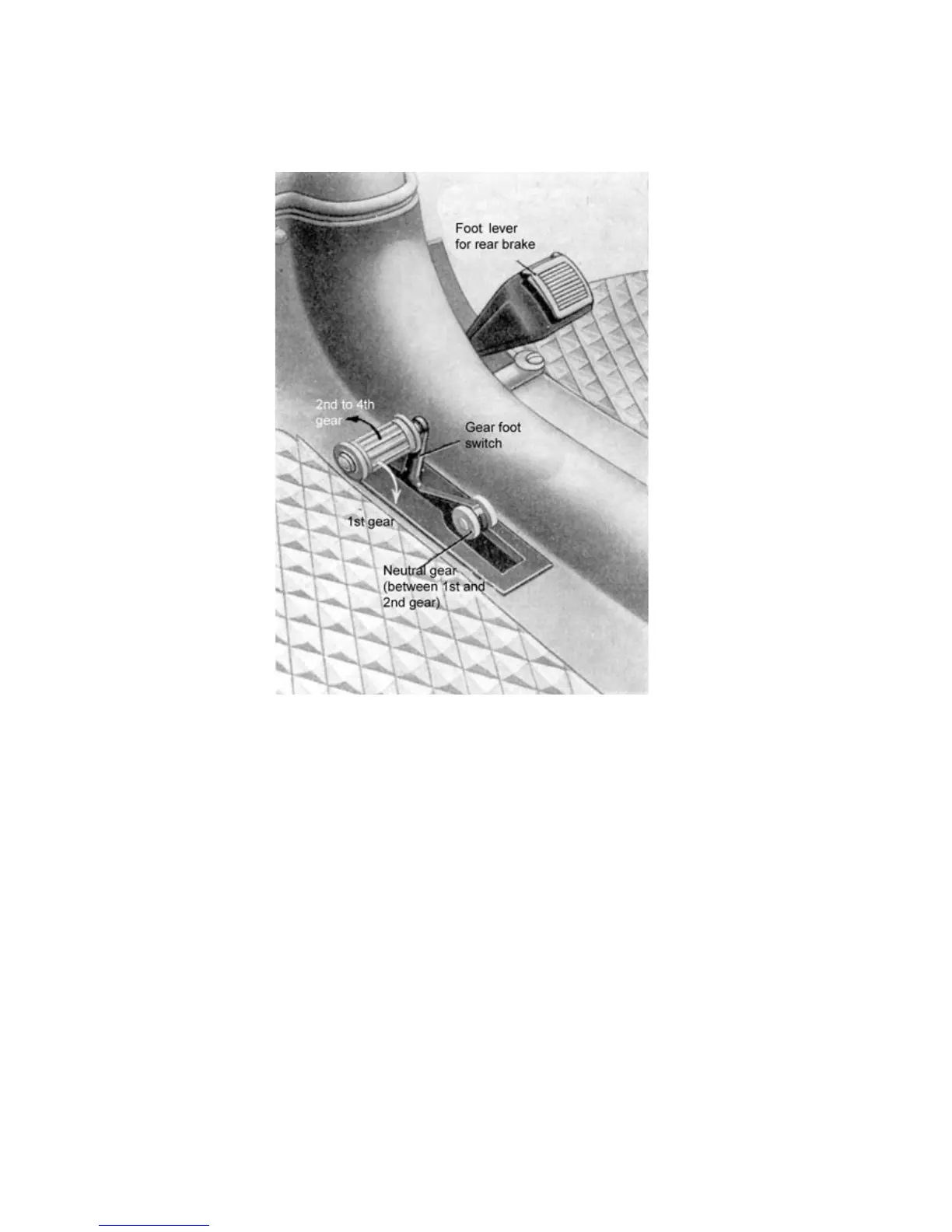

Image 56. Actuation of foot gear switch
the different gear ratios within the gear box. The gearbox has an automatic switch installed, that
returns the footswitch back into it´s original position after each switching operation. The foot gear
switch must be pushed forward to move the gears up into 2
nd
,3rd and 4
th
gear and down to switch
down again. To switch from neutral into 1
st
gear, the switch must also be pushed back.
To switch from:
Neutral to 1
st
gear push foot switch back
1
st
gear to 2
nd
gear push forward
2
nd
to 3
rd
gear push forward
3
rd
to 4
th
gear push forward
4
th
to 3
rd
gear push back
3
rd
to 2
nd
gear push back
2
nd
to 1
st
gear push back
Neutral is found inbetween 1
st
and 2
nd
gear. It can be located by applying slight pressure to the foot
switch (push back when coming down from 2
nd
gear and push forward when coming from 1
st
gear).
When neutral is found, the green pilot light on the left hand side of the instrument panel will also
light up.
