2.341 Brake maintenance
There are adjustment devices installed at the end of the rear brake cable and at the thrust bearing

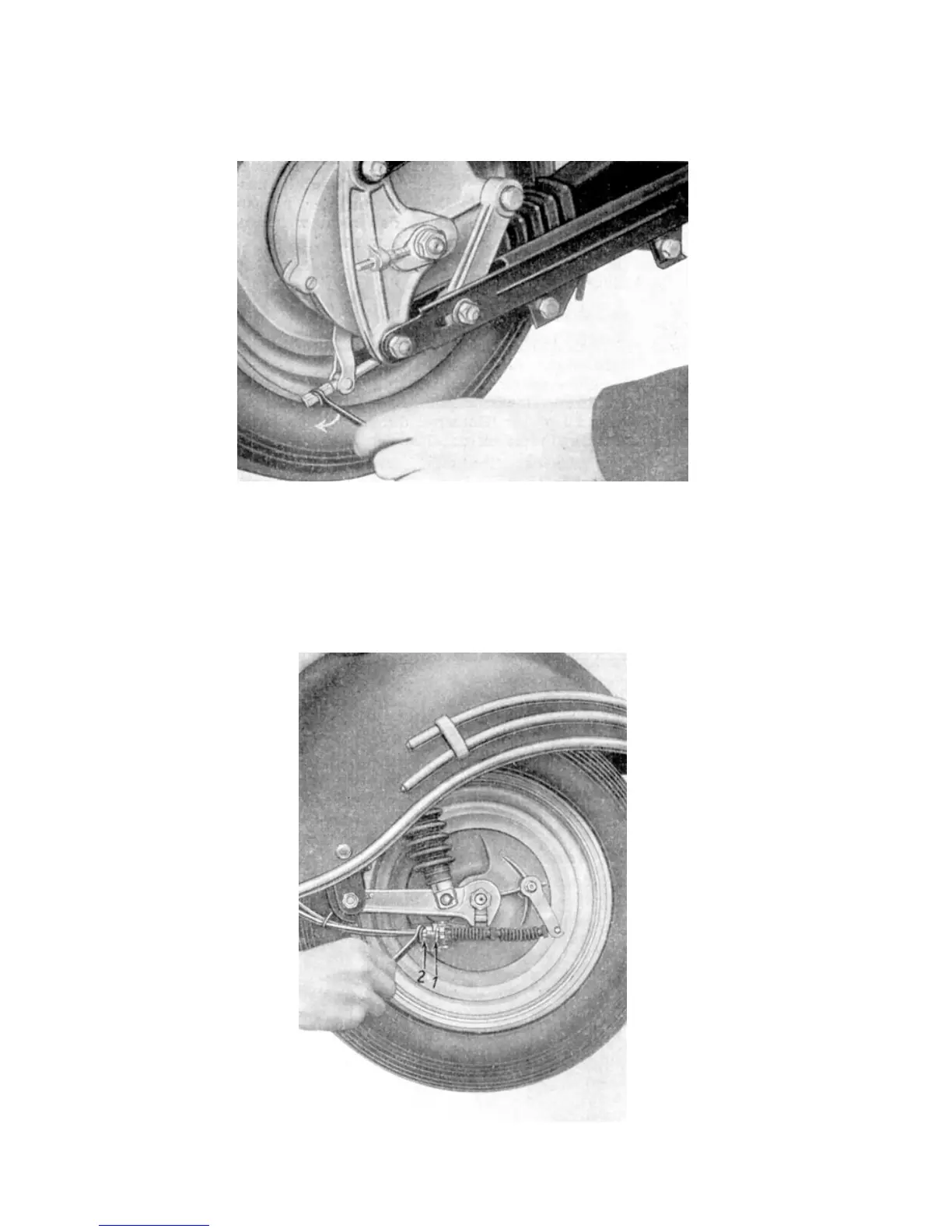

Image 39. Adjusting the rear brake
of the jacket of the front brake for the necessary adjustments that need to be done due to the wear
of the brake shoes.
The rear brake is adjusted merely by clockwise rotation (½ rotation at a time until snap) of the
adjustment nut.To adjust the front brake, first the hexagonal counter nut needs to be loosened
counterclockwise. Then the adjustment nut also needs to be turned counterclockwise. Afterwards
the counter nut needs to be tightened again. The same procedure should now be done at the brake
lever.
Image 40. Adjusting the front wheel brake
