2.38 Instrumentpanel and theft protection
The necessary pilot lights for the scooter as well as the electronic switches are mounted evidently
on the instrument panel.
The following lights, switches and instruments are to be found on the instrument panel:
left hand side: red pilot light and green neutral indicator light. Right hand side: orange supercharger
pilot light and a blind light which is mounted for the purpose of symmetry. It could be connected to
serve as a hi beam indicator for example. The speedometer is mounted on the right hand side of
the instrument panel, ignition and lightswitch on the left.
The theft protection is mounted in the center of the instrument panel and equipped with a cover
plate to protect it from water.
Operating the instrument panel:
1. Open cover plate
2. Insert key (also fits for opening base frame) and turn right
3. Turn handlebar to the left until the locking pin engages noticeably
4. Once the locking pin is engaged, the key can be turned by 180º and pulled out. Now
the scooter´s handlebar is arrested.

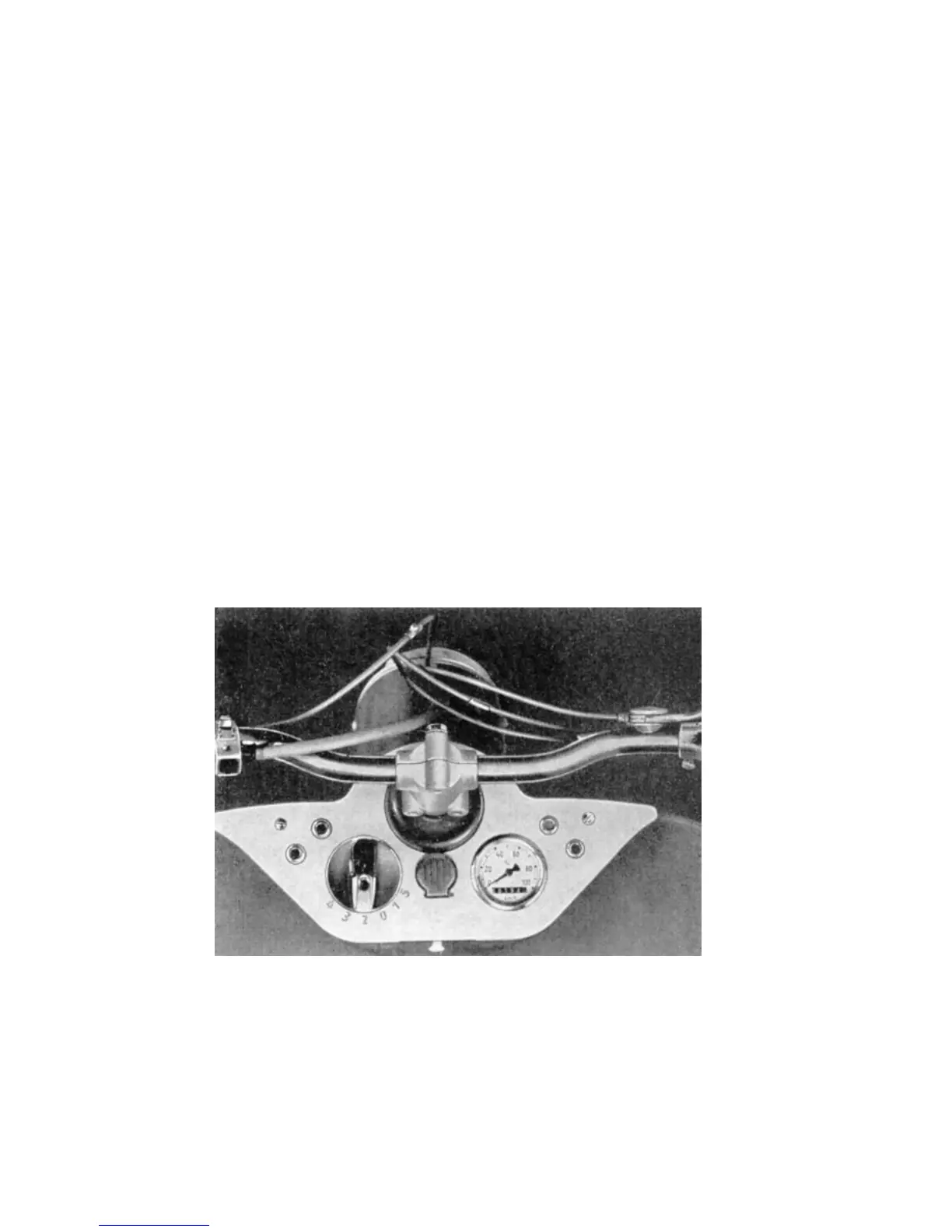

Image 48. Instrumentpanel
