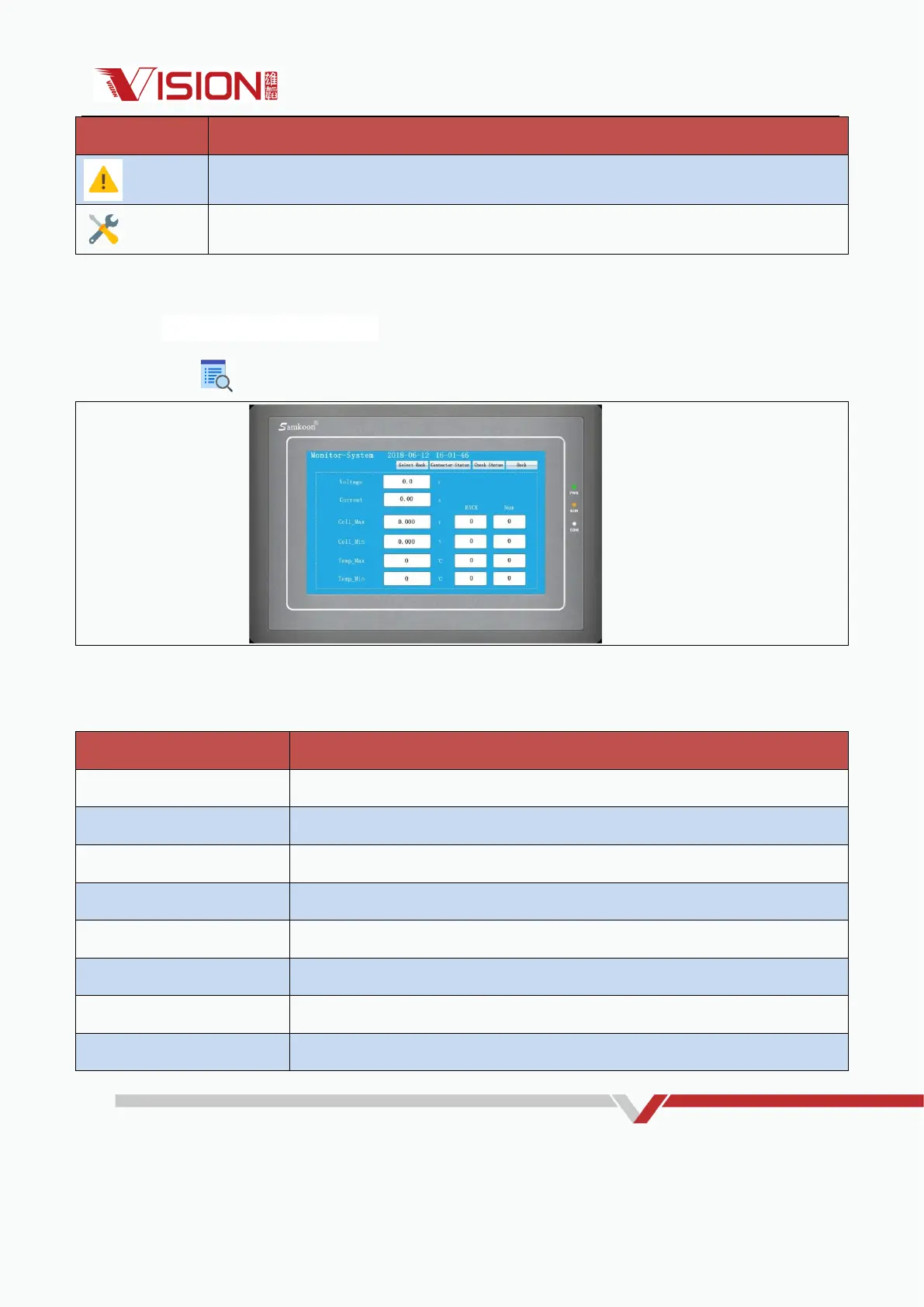

111
Item
Description
Warning
Click to view
the alarm statu
s
of the
s
ystem and
each CB
MS
Setting
Click to set
system related para
meters
12.1.4
Real-time monitoring
Click the icon
on the homepage to enter the re
al
-time monitoring page.
Figure 12.1-4 GBM
S homepage preview
T
able
12.1
-
2 parameters
Item
Description
Voltage
System voltage
Current
System current
Cell_Max
Maximum cell voltage
Cell_Min
Minimum cell voltage
Temp_Max
Maximum cell temperature
Temp_Min
Minimum cell temperature
RACK
CBMS number of Maximum value
Num.........
Module number of Maximum value
110
112
Table of Contents
Table of Contents
3
Overview
7
Range of Application
7
For the Reader
7
Manual
7
Product Description
8
Brief Introduction
8
Solution Introduction
8
Product Functions and Advantages
8
Product List
9
Safety Instruction
10
Label Description
10
Installation Tools
12
Attention Items
13
Manual
13
Identity Protection
13
Safety Warning Label
13
Personnel Requirement
14
Battery Protection
14
Electric Measurement
14
Expert Users Measuring Instrument
14
Maintenance and Repairing
15
Safety Notice
15
Module
20
Module Description
20
Module Specification
20
Cbms
23
CBMS Description
23
CBMS Specification
23
CBMS Function Panel
26
LED Indicator Status and Definition
28
Breaker
29
Gbms
31
GBMS Description
31
GBMS Specification
31
GBMS Function Panel and Definition
33
Cabinet
34
Cabinet Description
34
Cabinets Specification
34
Communication
36
Communication with UPS
36
System Installation
37
Unpacking and Inspection
37
Unpacking Steps
37
Loading List
46
Mechanical Installation
47
Installation Place
47
L-Shaped Rails Disassembly
52
Module Detection before Installed
54
Cable Connection
55
Connection Overview
55
Ground Connection
57
Module Installation
58
GBMS Installation
61
Fuse Installation
63
Interconnection Inside the Cabinet
66
Module Connection
66
Tie Position
71
Module Communication Cable Connection
72
Power Cable Routing Diagram
74
GBMS 24V Power Connection
76
CBMS Parallel Communication Connect
79
AC Power Connection
82
Set the Dial Switch
84
CAN/RS485 with UPS
88
Dry Contact Connection
89
GBMS DIP Switch Setting
90
UPS Parameter Setting
93
Running Test
93
Starting up Examination
93
Start-Up Checklist
93
Starting up Examination
95
SOC Validation and Calibration
95
Startup Steps
96
Troubleshooting
104
LED Display Fault
104
Routine Maintenance
108
System Monitoring
109
HMI Monitoring
109
Product Specifications
109
Performance
109
Homepage
110
Real-Time Monitoring
111
Cell Data
112
Alarm/Protection Page
113
Appendix
114
Factory Warranty
114
Limitation of Liability
115
About VISION
116
About Storage
117
Index of Figures
118
Index of the Tables
121
