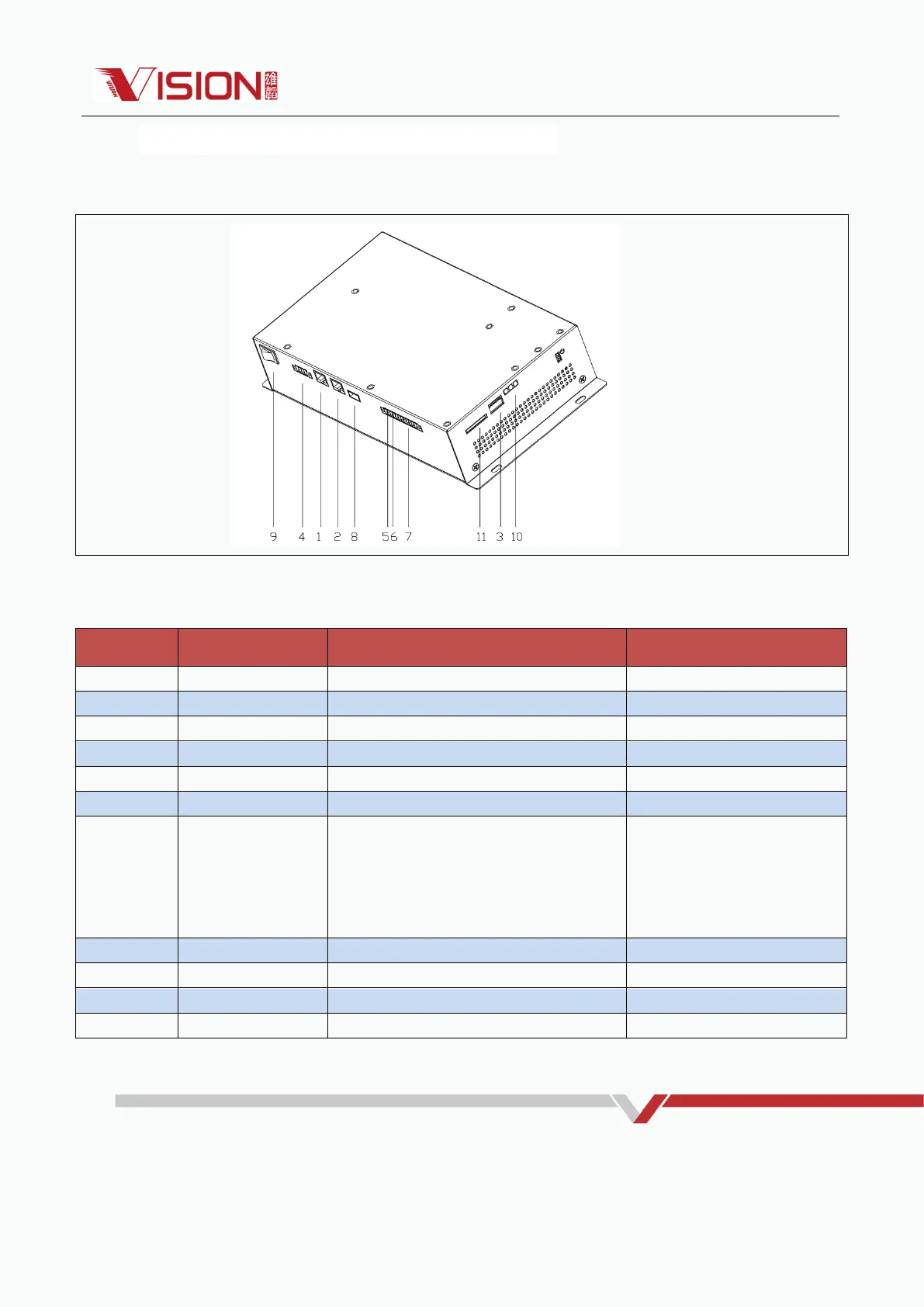

6.3 GBMS function panel and definition
Figure 6.3-1 GBMS description
Table 6.3-1 GBMS panel function definition description
Item
Designation
Description
Remarks
1
CBMS interface
The connector port with CBMS
CAN Communication
2
LAN
LAN interface
Updating GBMS program
3
Dial switch
Reserved function
GBMS in parallel
4
DC24V-IN
Supply power port to GBMS
Supplied by CBMS
5
CAN
Communicate port with UPS
CAN2.0
6
RS485
Communicate port with UPS
Mod bus RTU protocol
7
Dry contact
Input dry contact I1，Output dry contact D1~3
D1:NO
D2:NO
D3:NO
I1:NO
D1: Charger shutdown signal
D2: No discharge signal
D3: Secondary protection signal
I1:EPO(input) When EPO active open
8
HMI update
Update the HMI interface
9
ON/OFF
GBMS DC power supply switch
10
Indicator
GBMS running indicate
11
SD card
GBMS running data store 10000 records
