Vision REVO User Manual

SHENZHEN CENTER POWER TECH CO., LTD
Address: Rooms 9-12, 7F, Block B, Building 7, Zone 2, Shenzhen Bay Technological and
Ecological Park, Nanshan District, Shenzhen, China
Tel: 0755-66851118 Fax: 0755-66850678 Email: sales@vision-batt.com
Green Our Earth Power Your Vision
57

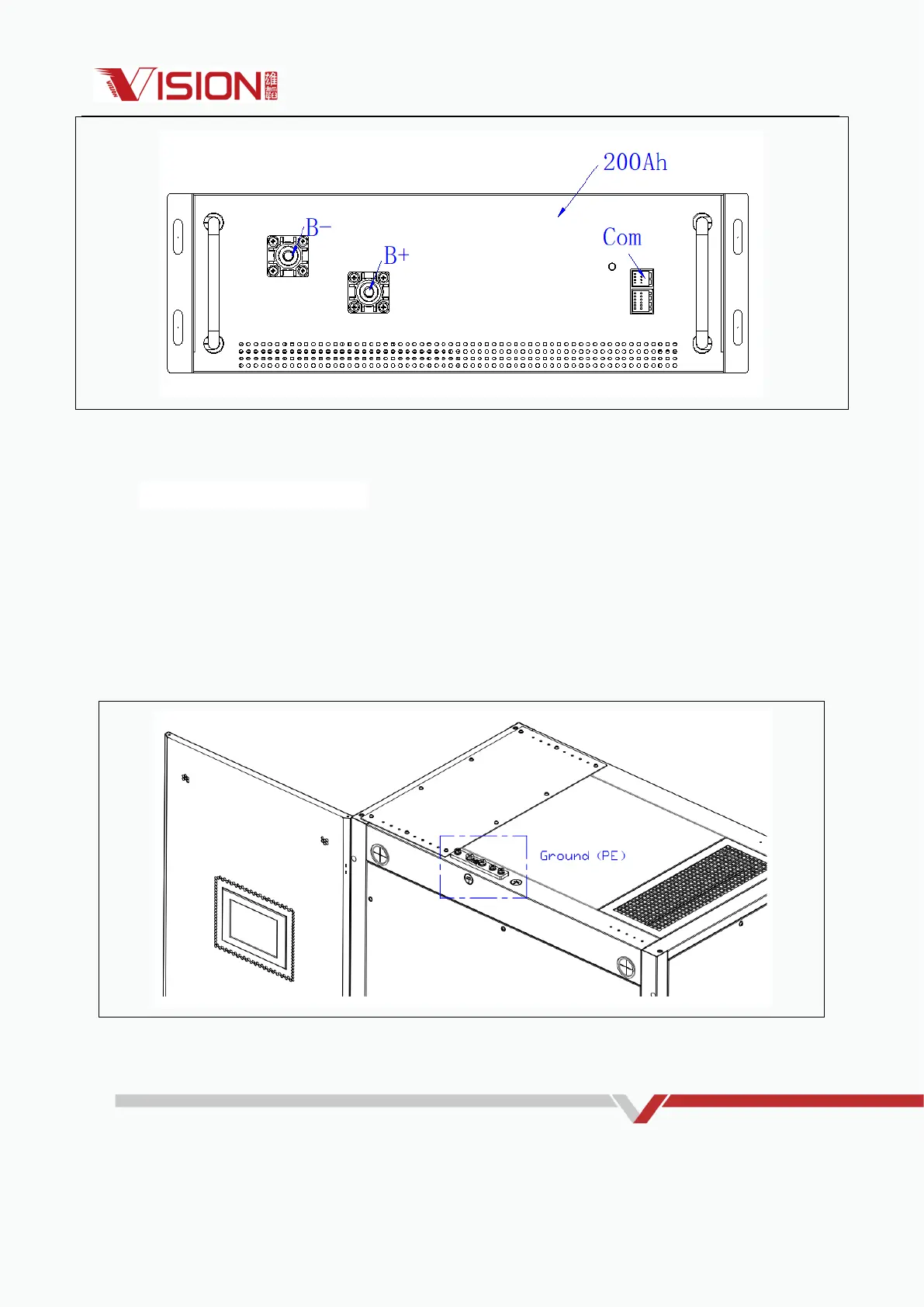

Figure 10.1-3 Overview of battery module
10.2 Ground connection
In a lithium-ion power system, all non-current-carrying metal components and equipment
casings must be connected to the ground and nearby. In the case of multi-system parallel operation,
the main grounding terminal of each device shall be connected to the conductor. The grounding
conductor shall be copper conductor, and follow the recommended external cable installation ground
cable, copper terminal must be installed, and must be firmly pressed.
Figure 10.2-1 Ground(PE) connect
