10.6.6 CBMS parallel communication connect
CBMS parallel communication adopts RJ45 physical interface, which is realized by
COM1/COM2 of CBMS. Refer to section 5.3 for an introduction to the CBMS interface.
The figure below is the schematic diagram of REVO series for parallels. The system
realizes communication connection in the form of communication Daisy chain. the
parallel number shall be ≤15 cabinets

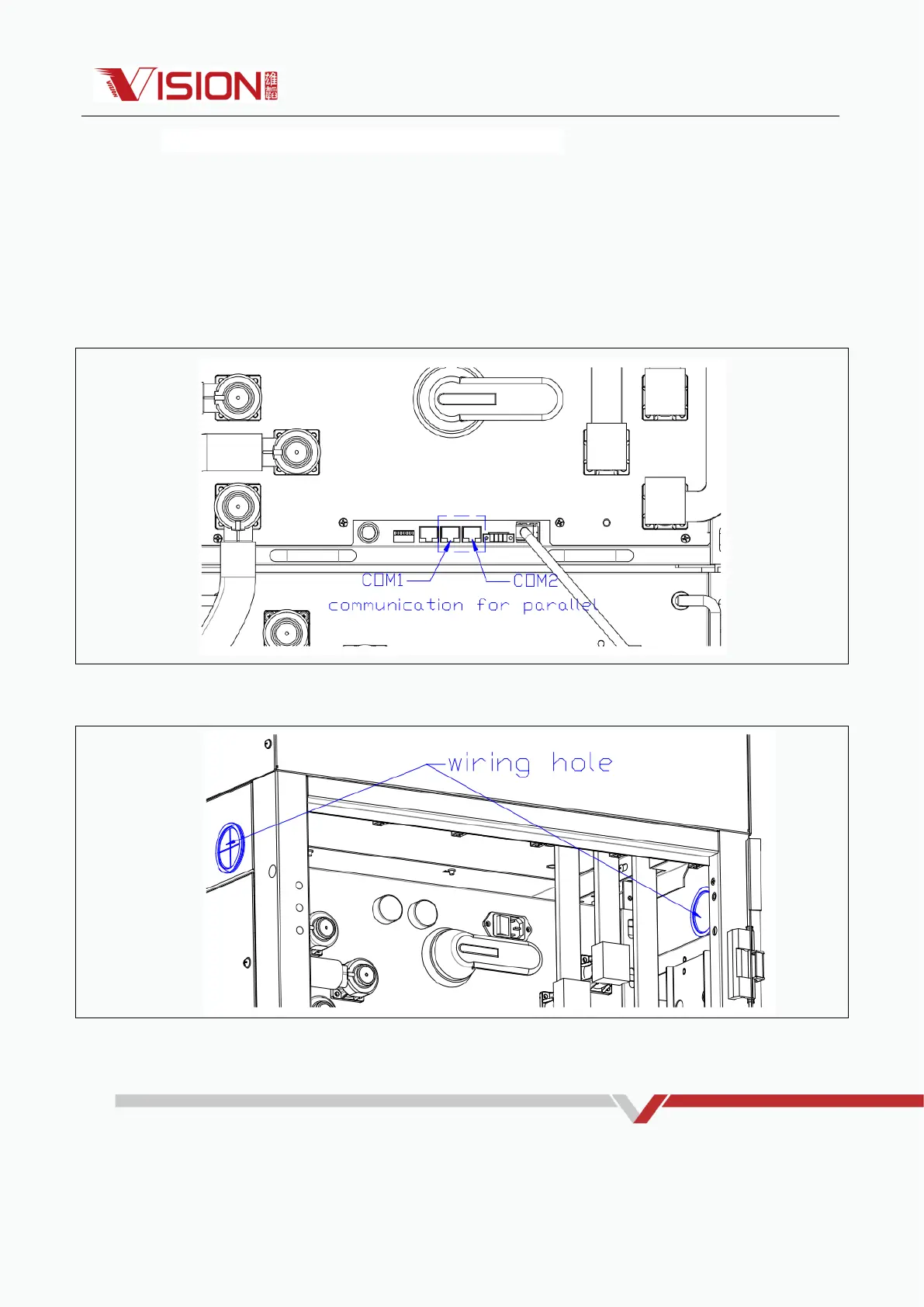

Figure 10.6-20 CBMS parallels communication connection
Figure 10.6-21 Hole details
