Instruments
This chapter describes the instrument and control panels sold by Volvo Penta for your engine.
If you want to supplement the instrumentation, or if your boat is equipped with instruments not described here,
or you are not sure about their function, please contact your Volvo Penta dealer.

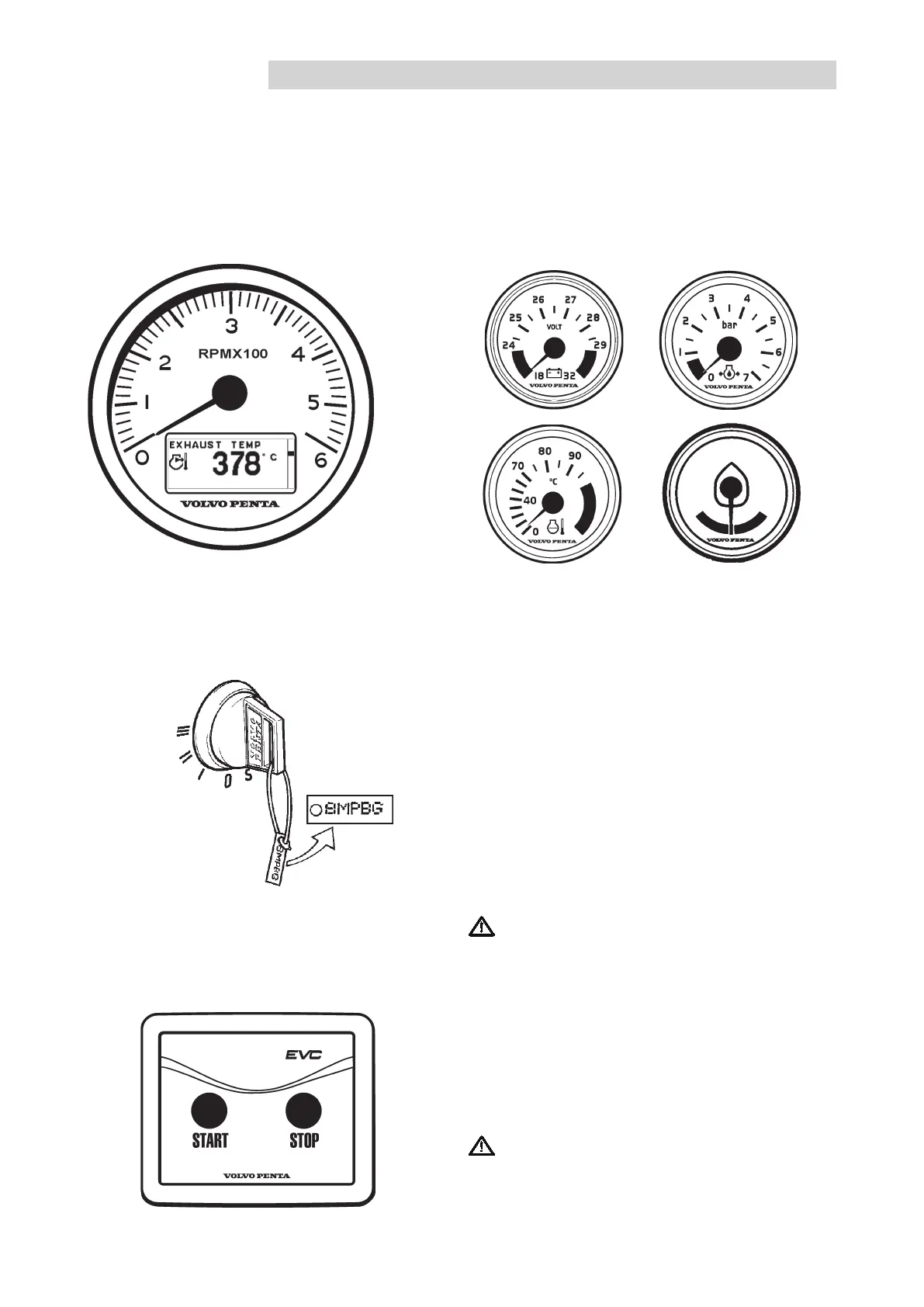

1. EVC System Tachometer
Ignition lock
A tab with the key code accompanies the ignition
keys, and is used to order extra ignition keys. Do not
store the code where it is accessible to unauthorized
persons.
S = Stop position.
0 = Key can be inserted and removed.
I = System voltage on (drive position).
II = Not used.
III = Start position.
IMPORTANT! Read the starting instructions in
the “Engine starting” chapter.
2.
3.
4.
5.
1.
Instruments
Start/stop panel
The start/stop panel is used to start or stop the engi-
ne. The starter key in the main control panel must be
in position “I” (driving position) for the engine to start.
The engine can only be stopped if the control panel
is activated.
IMPORTANT! Read the starting instructions in
the “Engine starting” chapter.
4. Temperature gauge
5. Rudder indicator
2. Voltmeter
3. Oil pressure gauge
