Navigation wheel
Used to navigate through the menus shown on the
tachometer EVC-system display. Navigate through
the menus by turning the wheel. Depress the wheel
to confi rm a selection.
Tachometer display selection (double instal-
lation, port or starboard tachometer)
Is used to select which of the engines menu systems
should be navigable from the control panel. The
menu is shown on the display of the corresponding
engines tachometer. Select port or starboard.
Indication (red/green):
Off: Not possible to navigate in menu.
Lit: Possible to navigate in menu for selected engi-
ne, port (red), starboard (green).
Multifunction button
Used to increase or decrease the instrument’s and
panel’s backlighting.
Depress the button for at least 1 second to turn the
backlighting on or off. The backlighting can be ad-
justed in fi ve stages by pressing the multifunction
button.
If the button is pressed on a inactive control panel,
operating information is shown on the display(s) and
it is possible to navigate in the menus.
Back button
Used to back a step in the menu.
IMPORTANT! Always press the buttons fi rmly,
Activation button
Used to activate the control panel so that the engine
can be controlled.
Indication (red):
Off: Control panel not activated.
Lit: Control panel activated.
Flashes: Control panel not activated due to the con-
trol lever not being in neutral or the system has been
locked from another control panel.
Padlock
The padlock symbol lights if the control panel is
locked manually by depressing the -button, or if
exchange has been activated by routine ”Change of
control panel during journey”.
Lit: The system is locked and the engine can only be
controlled from the activated control panel.
Neutral button
Used to disengage the drive/reverser so that the
engine speed can be increased without driving (with
overheating).
Also used for activating the lowspeed/trolling function
(option).
Indication (green):
Off: Drive/reverser engaged.
Lit: Control lever in neutral.
Flashes: Drive/reverser disengaged or system in ca-
libration mode.

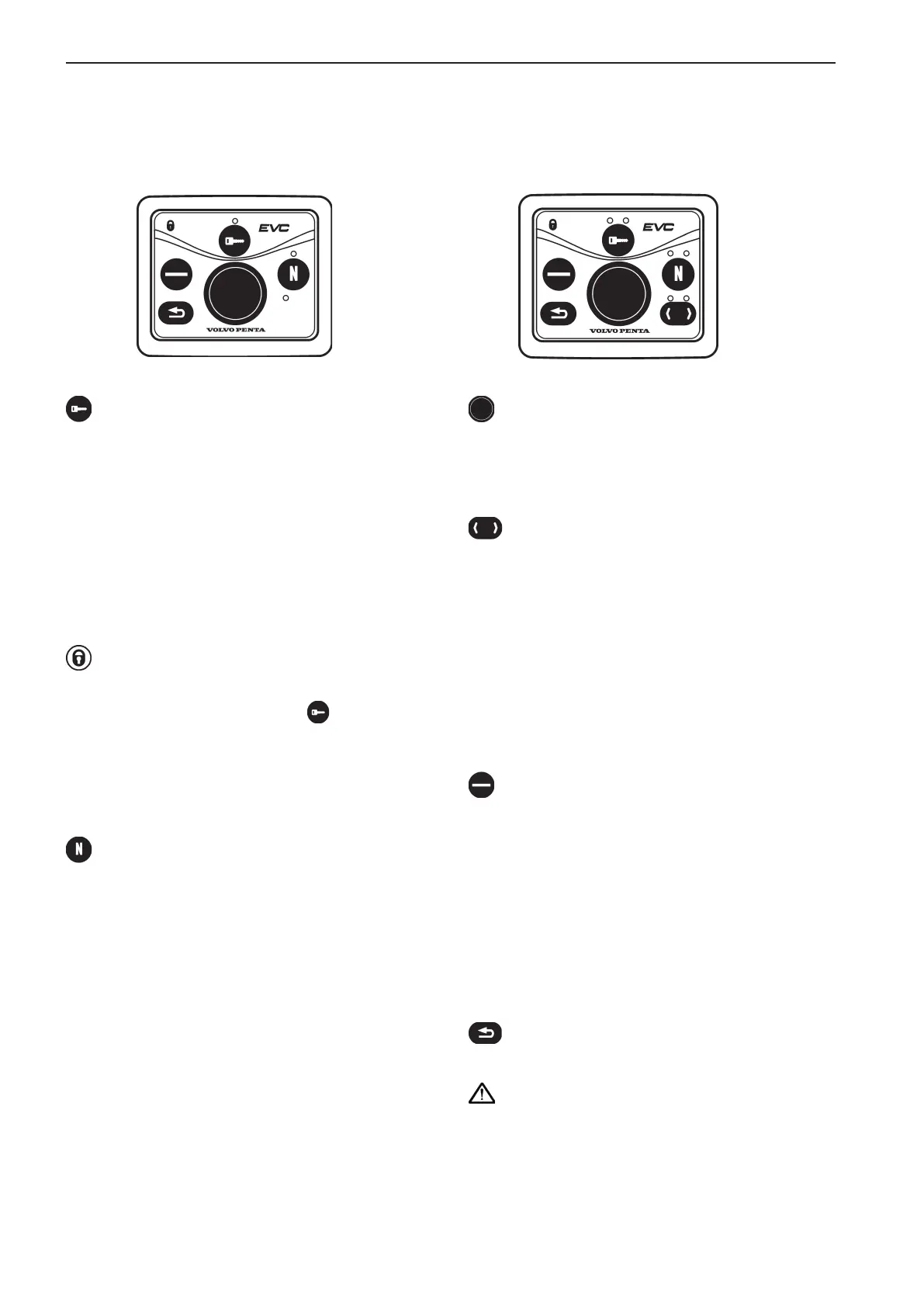

EVC control panel
The control panel is used in combination with the EVC-system tachometer. The tachometer display shows ope-
rating information and menus that can be navigated from the control panel. Control panel EVC is available in two
versions, for single or double engine installations.
20
Instruments
