6
Installation setup
Mount your new console (optional)
Tabletop to wall installation
To install your console in the wall installation position, make sure you first
unplug the power adapter from the electrical outlet and the telephone line cords
from the wall outlet.

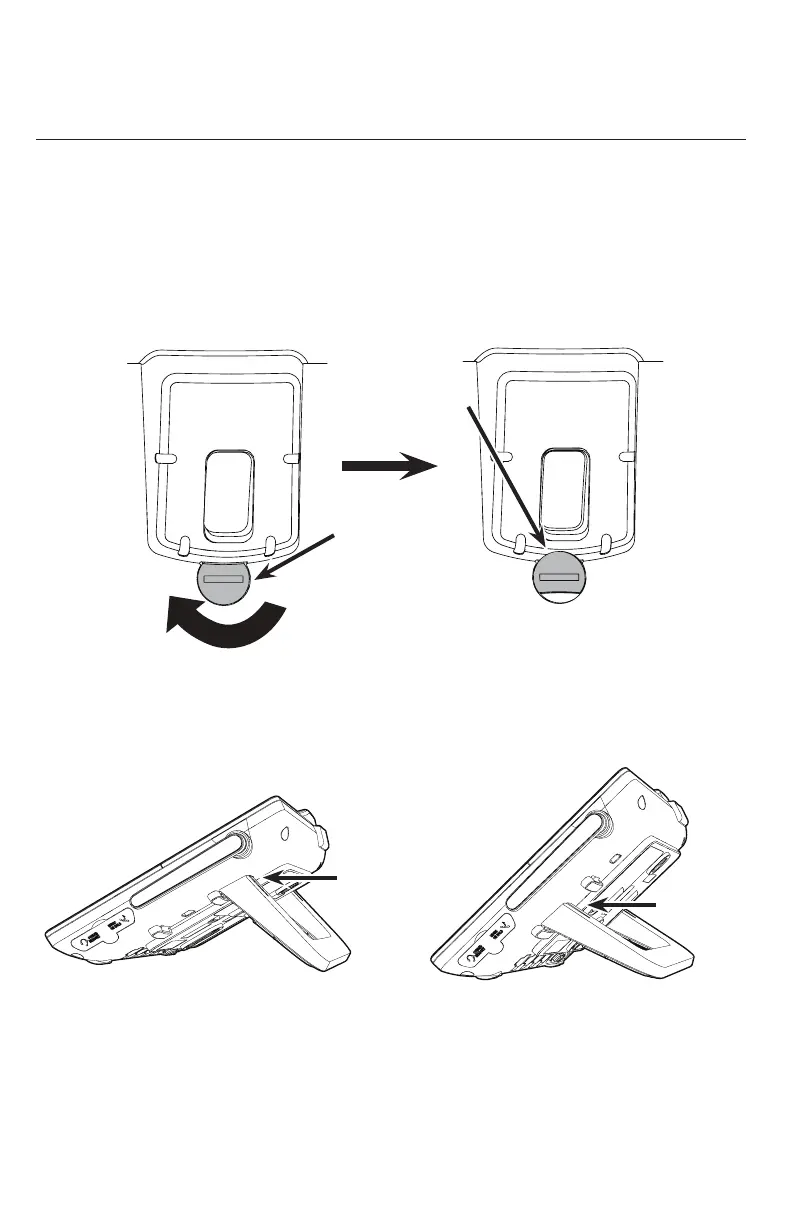

Place your corded handset aside. Use a coin to rotate the handset tab
180 degrees. The protruding edge holds the corded handset when the
console is mounted on the wall.
1.
2. Press in the direction indicated by the arrows to release and remove the
mounting bracket from the console.
Low tabletop position High tabletop position
3. Place the corded handset back to the console. Plug the small end of the
power adapter cord into the power jack on the back of the console.
Protruding edge
Handset tab
