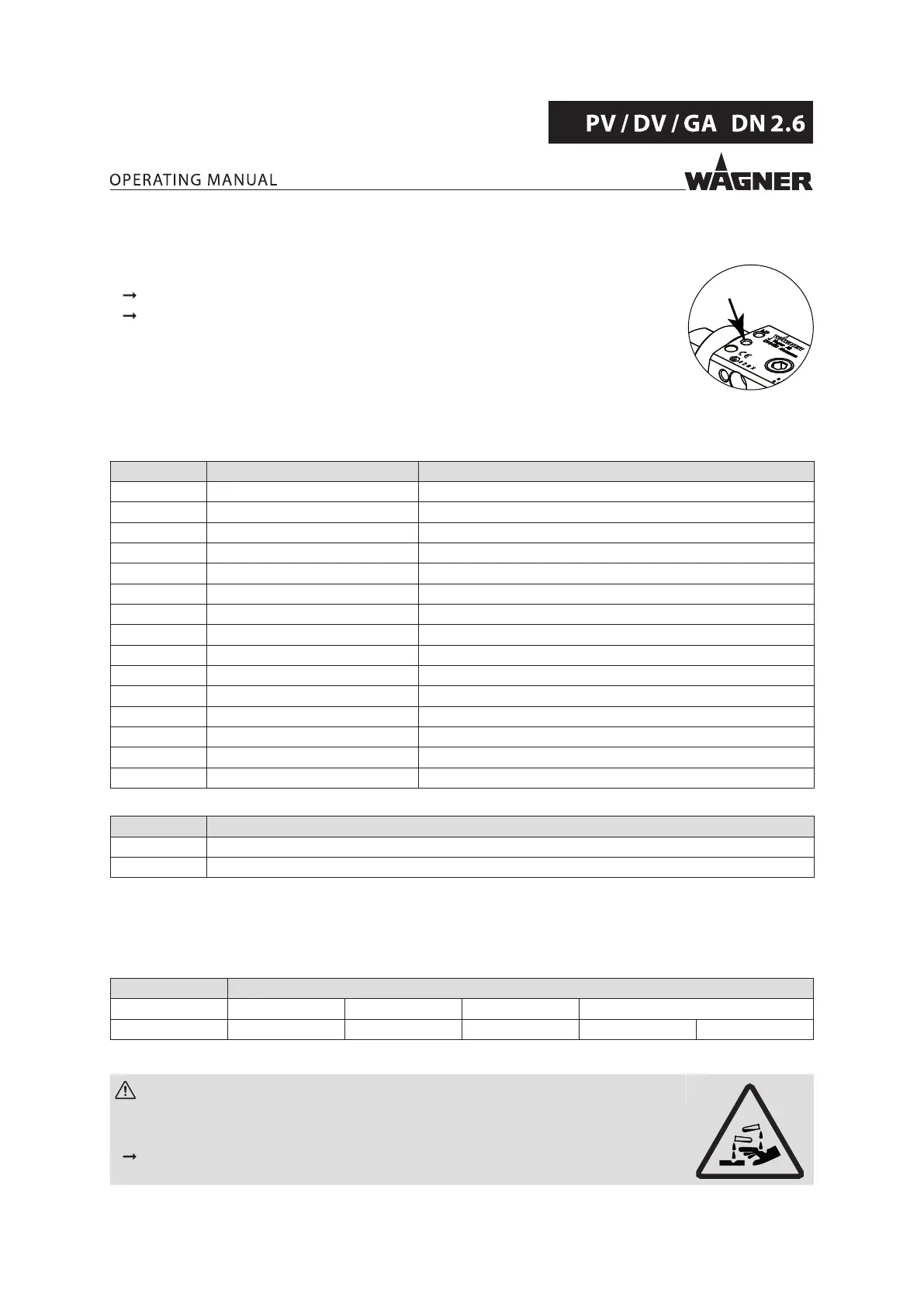

5.4 PROTECTIVE AND MONITORING EQUIPMENT
The following functions are provided for monitoring airtightness and product leaks.
B_03651
L
PTFE valves: leakage holes (L).
FFKM valves: connection for separating agent supply (L).
5.5 SCOPE OF DELIVERY
Available DN 2.6 valve types
Order No. Valve type Designation
2343364 Paint valve GA-250PV-DN2.6-PTFE-TC
2343360 Paint valve GA400PV-DN2.6-PTFE-TC
2343359 Dosing valve GA400DV-DN2.6-PTFE-SSt
2343362 Dosing valve GA400DV-DN2.6-PTFE-TC
2342809 Paint valve (double) PV100-DN2.6-PTFE-SSt
2342811 Paint valve (double) PV100-DN2.6-PTFE-TC
2342810 Dosing valve (double) DV100-DN2.6-PTFE-SSt
2342812 Dosing valve (double) DV100-DN2.6-PTFE-TC
2342804 Paint valve (double) PV400-DN2.6-PTFE-SSt
2342807 Paint valve (double) PV400-DN2.6-PTFE-TC
2342806 Dosing valve (double) DV400-DN2.6-PTFE-SSt
2342808 Dosing valve (double) DV400-DN2.6-PTFE-TC
2370685 Dosing valve (double) DV400-DN2.6-PTFE-TC-1.4404 (for acidic hardeners)
2332666 Dosing valve FFKM (double) DV400-DN2.6-FFKM-SSt (with separating agent supply)
2332670 Dosing valve FFKM (double) DV400-DN2.6-FFKM-TC (with separating agent supply)
The scope of delivery of a valve includes:
Order No. Designation
384923 Declaration of Conformity
2343299 Brief instructions are available in the German and English languages.
The delivery note shows the exact scope of delivery.
5.6 DATA
5.6.1 MATERIALS OF PAINTWETTED PARTS
Materials in direct contact with the products
PTFE valves Stainless steel* Carbide PTFE PE (UHMWPE)
FFKM valves Stainless steel Carbide PTFE PE (UHMWPE) FFKM
* Valve DV400-DN2.6-PTFE-TC-1.4404 for acidic hardeners: stainless steel 1.4404
WARNING
Acidic hardeners!
Risk of burns and injury for skin, tissue and organs.
Observe the lacquer manufacturer's safety data sheets and take prescribed safety
measures.
