WAGNER PV 100 User Manual

44
VERSION 06/2018
ORDER NUMBER DOC 2343275

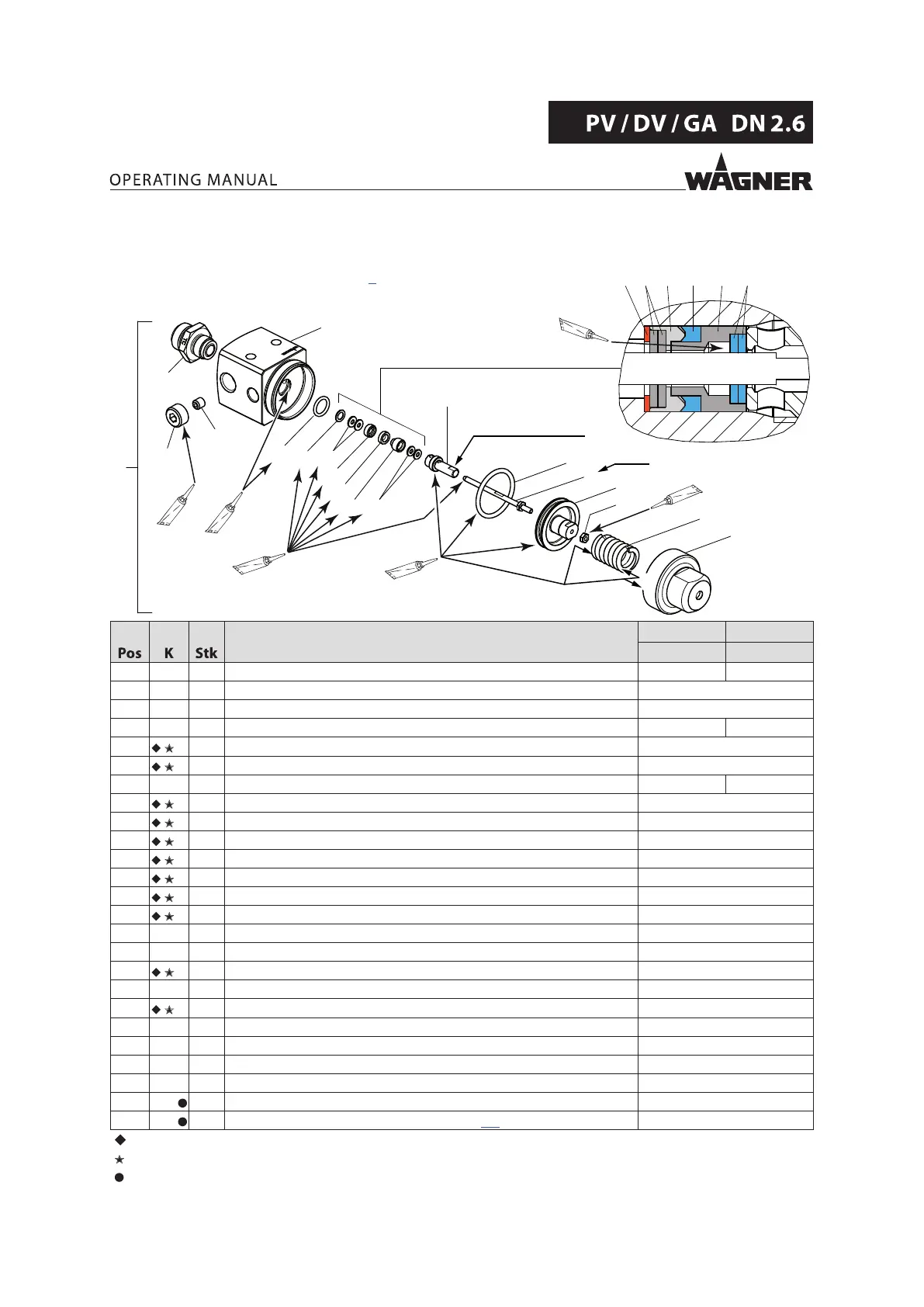

13.2.1 VALVES GA250PVDN2.6PTFETC AND GA400PVDN2.6PTFETC
8
6
5
19
12
13109 11 14
9
10
11
12
13 14
32
31
32
1.7 Nm; 1.25 lb ft
SW 5
30
SW 2
17
7
2
3
4
18
1
B_06783
15
16
31
33
Disassembly and assembly, see Chapter9.
Fill space with Mobil SHC
Polyrex™ 222
GA250PV GA400PV
Designation Order No. Order No.
1 1 Paint valve GA…-DN2.6-PTFE-TC 2343364 2343360
2 1 Piston 2330264
3 1 Hexagon nut 9913014
4 1 Pressure spring 350498 350482
5 1 O-ring 9974187
6 1 Valve rod, complete 350884
7 1 Valve housing ** **
8 1 Sealing screw 350485
9 1 Stop ring 2342203
10 2 Sealing ring at front 2342204
11 1 Support ring 2342205
12 1 Sealing collar 2342206
13 1 Sealing sleeve 2342207
14 2 Sealing ring at rear 2342208
15 1 Screw plug 350488
16 1 Plug 350418
17 1 Spacer, complete 350161
18 1 Clamping nut 350490
19 1 O-ring 9974065
30 1 Loctite® 243 9992511
31 1 Mobil SHC Polyrex™ 222 grease 2342273
32 1 Mobilux® EP 2 grease 9998808
33 1 Loctite® 542 9992831
1 Service set, GA DN2.6-PTFE-TC 2343816
1 Seal set (scope of delivery, see Chapter 9.4) 2342336
= Wearing parts
= Included in service set.
= Not part of the standard equipment but available as a special accessory.
** = The valve housing can only be ordered from the WAGNER Service Department.
