smartPRINTER Operating Instructions
smartPRINTER Operating Instructions 003/10.2017 21
6.5.8 Using Markers/WMB Inline
The following information will help you use you smartPRINTER safely.
The details of the graphical illustrations may differ from those of the current model.

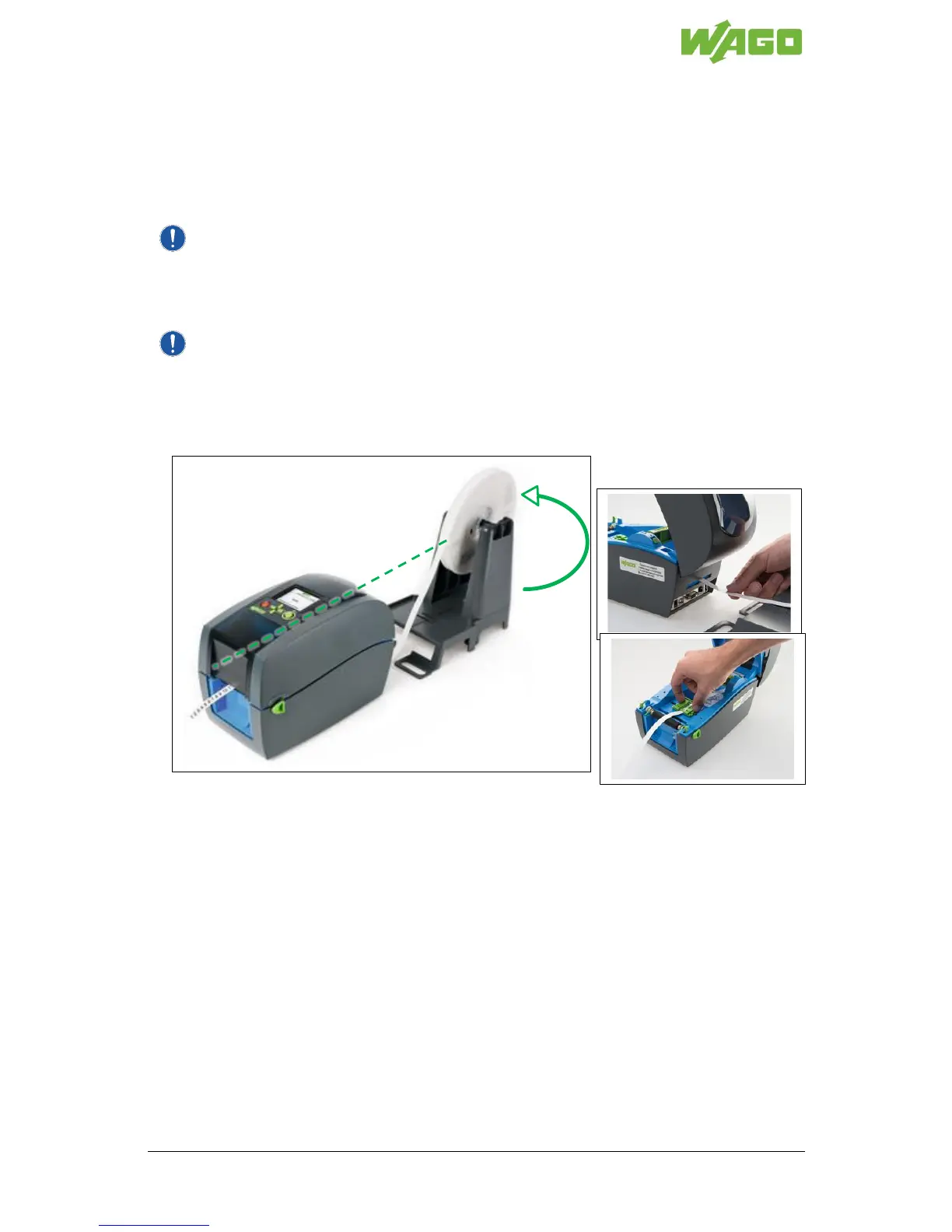

Insert markers on the roll in the external unwinder.
Important: Unrolling direction to the left!
The markers are fed into the printer in a counter-clockwise direction.
Position external unwinder with the print material behind the printer.
Important: The external unwinder with the print material on the roll is positioned in such a way
that the print material that is unwinding and material that is fed through the printer form an
imaginary line!
If the printer and print material in the external unwinder are not aligned with each other, this
leads to errors in the transport of the print material and the printed image.
Open the smartPRINTER. Tilt the top of the printer (print mechanism and housing cover) up
until it locks firmly in place.
Push the print material into the printer through the feed-through hole on the back of the
printer.
Adjust the media guide to the width of the markers.
The print material bulges if the media guide is set too narrow.
The print material escapes from the media guide if it is set too wide.
An incorrectly adjusted media guide leads to errors in the transport of the print
medium and the printed image.
Feed the markers through under the hold-down device and the media guide.
Align the markers exactly to the roller guide groove.
Pull the markers out of the printer in the direction of the print roller.
Close the smartPRINTER.
