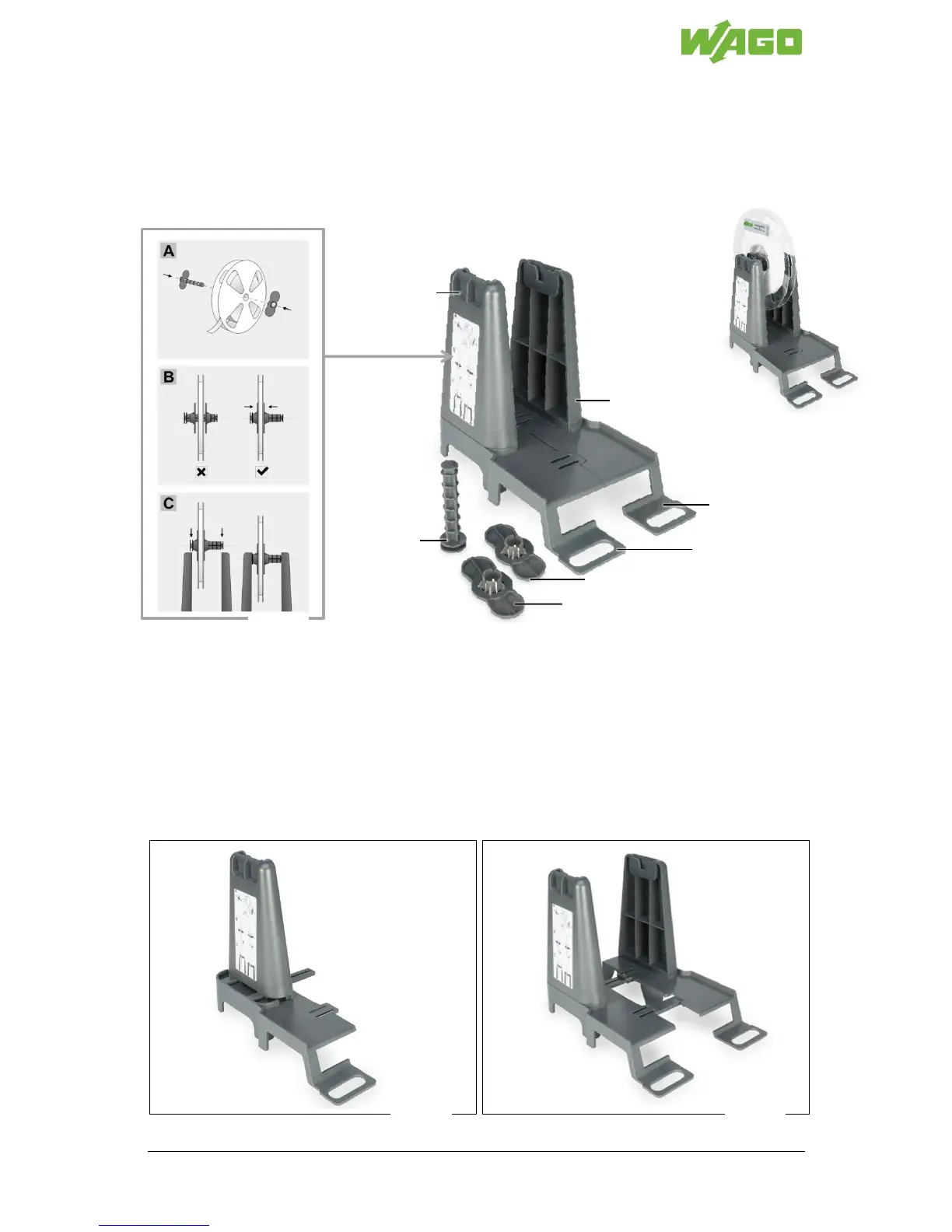

7.2.3 External Unwinder
The external unwinder is used for suspension and uniform supply of continuous printing materials
from the roll to the smartPRINTER.
The unwinder is enclosed with your printer and is to be assembled as described in these instructions.
Application note Fig. EA1 contains instructions for installing a print material roll.
Description
Assembly
Fig. EA2
 Slide the T-slot on the side element into the T-guide of the base plate to the stop.
Fig. EA3
 Connect the left and right sub-assemblies, sliding the guides in the base elements together to
the stop.
Side element
Side element
Base element, right
Base element, left
Plate
Axis
Plate
Fig. EA1
Fig. EA2
Fig. EA3
