Operating the Freedom SW with the SCP
Soft Key Navigation
Soft keys are the objects on the fifth line of the System Status
screen. The soft keys have arrows that point to a
corresponding physical button such as the Enter, Up arrow,
Down arrow, and Func buttons. They are called as such
because they perform functions in conjunction with pressing
the corresponding SCP button that each arrow points to.
In the next page, it will show how to navigate the soft keys to:
• Enable/disable inverter function (EnInv/DsInv)
• Enable/disable charger function (EnChg/DsChg)
• Change shore breaker ratings (Shr) - see also “AC In
Breaker” on page 51
• Select AGS trigger modes (AGS)

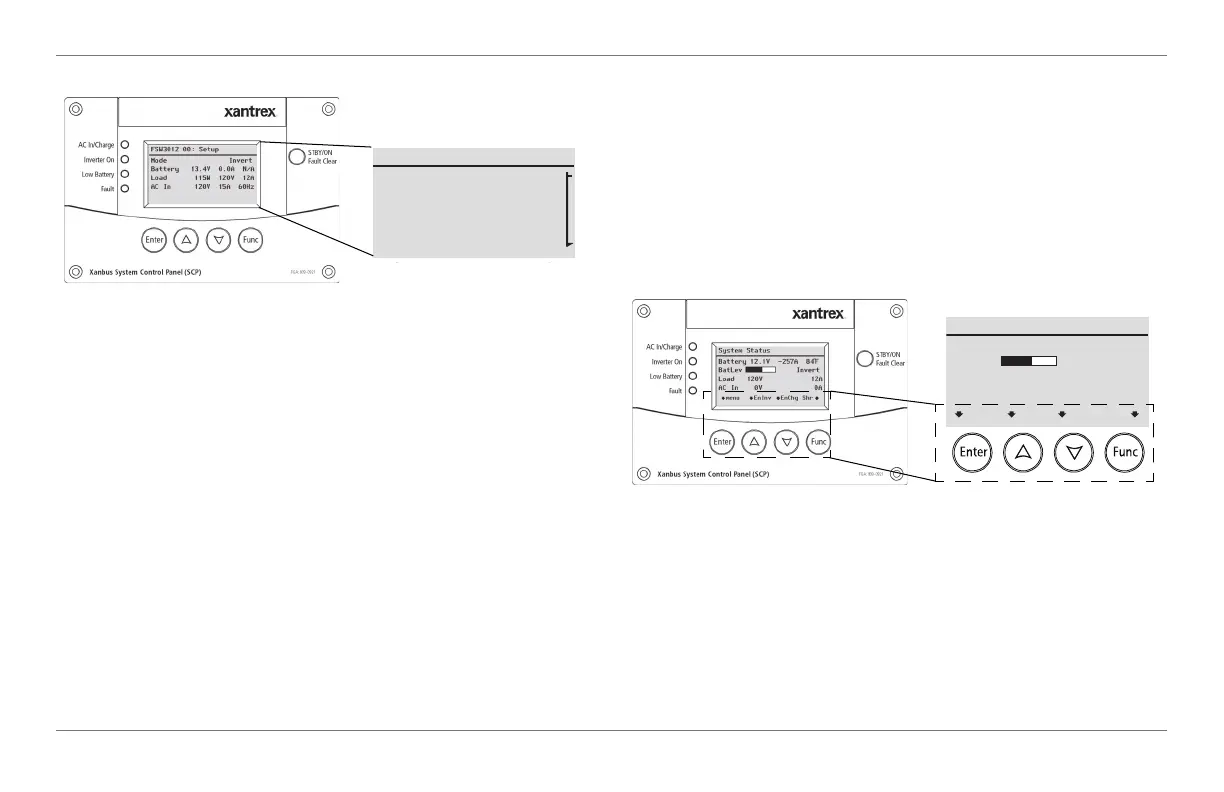

Figure 12 Freedom SW Device Screen
FSW3012 00: Setup
Mode
Battery
Load
AC In
Invert
11.8V -88.0A N/A
900W 120V 7A
0V 0A 0Hz
Figure 13 Soft Keys
System Status
Battery
BatLev
Load
AC In
12.1V -257A 84”F
Invert
120V 12A
0V 0A
menu EnInv EnChg Shr
