97-0019-01-01 33
Operating the Freedom SW with the SCP

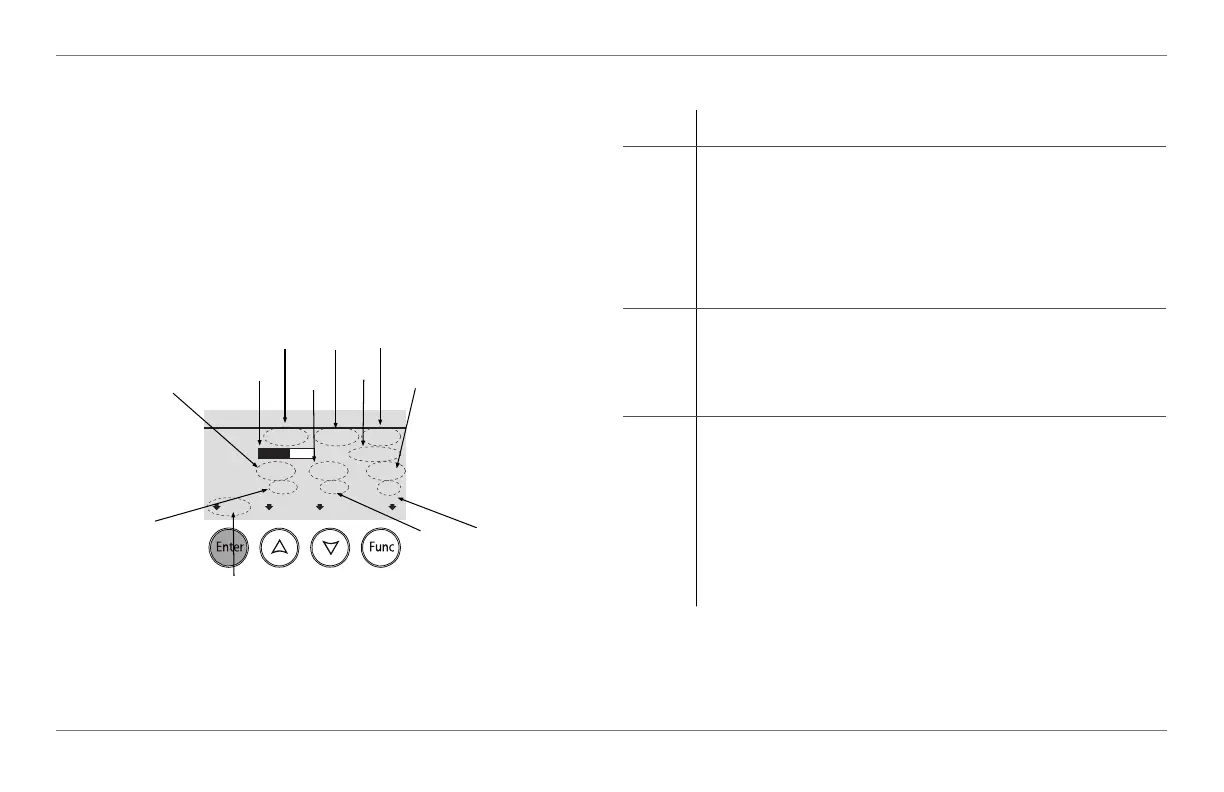

Reading the System Status Screen
The System Status screen displays:
• Battery-related information (see Line 2)
• Battery level and inverter/charger operating state (see
Line 3)
• Load information (see Line 4)
• AC Input information (see Line 5)
System Status
menu EnInv EnChg Shr
Battery
BatLev
Load
AC In
12.1V -257A 84”F
Invert
120V 10A 12A
0V 0A 0A
Menu arrow indicates the Enter
button. Pressing Enter displays
the Select Device menu.
Line 1
Line 2
Line 3
Line 4
Line 5
Field 1 Field 2 Field 3
Field 4
Field 5
Field 6 Field 8
Field 9 Field 10
Field 7
Field 11
Table 2 System Status Screen
Line 1 Label: “System Settings”
Line 2 Label: Battery
Field 1: Total battery current. Negative value if the
battery is discharging and positive value when charging.
Field 2: Battery voltage
Field 3: Battery temperature
a
. Also, displays the highest
temperature between stacked inverters that are installed.
Line 3 Label: BatLev
Field 4: Displays a bar graph showing the approximate
battery level.
Field 5: Freedom SW inverter/charger operating state
Line 4 Label: Load
Field 6: Inverter output voltage at load terminals of the
inverter/charger. Voltage is reported by the Master unit if
more than one inverter/charger is installed.
Field 7: Master current
b
Field 8: Sum of all load current from both inverter and
charger. Also, it displays Slave (or L2 Master) current
d
.
FSW Owners Guide.book Page 33 Tuesday, August 7, 2018 9:03 AM
