Addendum
Xerox 4112/4127 EPS 9-3
User Guide
Loading tabs in the OHCF
Note
If the optional GBC AdvancedPunch is attached to your machine, refer to the GBC
AdvancedPunch customer documentation for instructions on loading tab stock in the trays.
Use the following procedure to load tab stock into either tray of the OHCF.
1. Select the appropriate tab stock for your job.
2. Pull out the tray slowly until it stops.
3. Fan the tab paper before loading them into the tray.

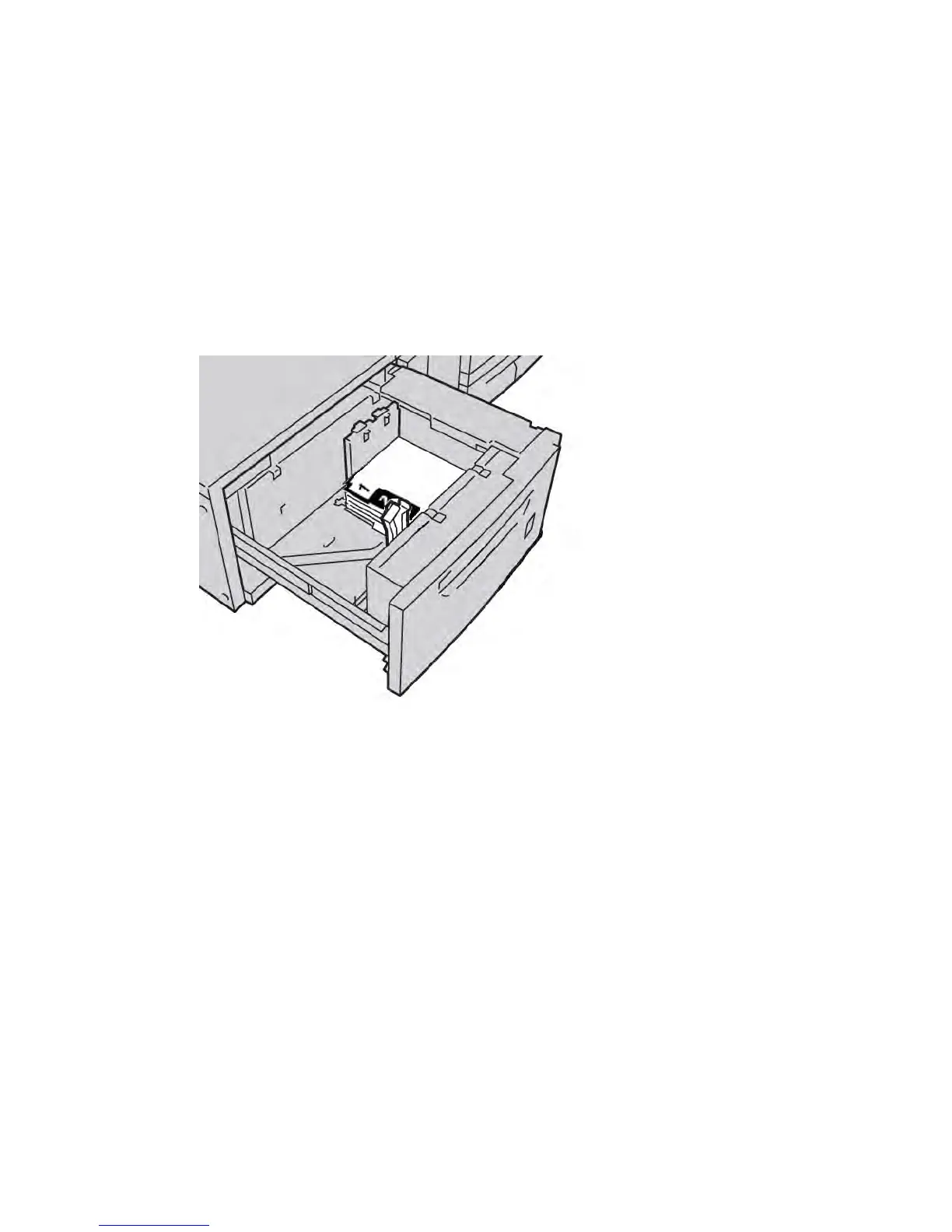

4. Load and align the edge of the tab paper against the right edge of the tray in the long
edge feed (LEF) direction as shown in the following illustration:
5. Adjust the paper guides by pressing in the guide release and carefully moving the Edge
Guide until it lightly touches the edge of the material in the tray.
Do not load materials above the MAX line located on the rear Edge Guide.
6. If necessary, set the skew adjustment levers to the desired position for your print job; refer
Skew adjustment levers on page 9-8.
7. Gently push in the tray until it comes to a stop.
