Paper and other Media
2-10 Xerox 4112/4127 EPS
User Guide

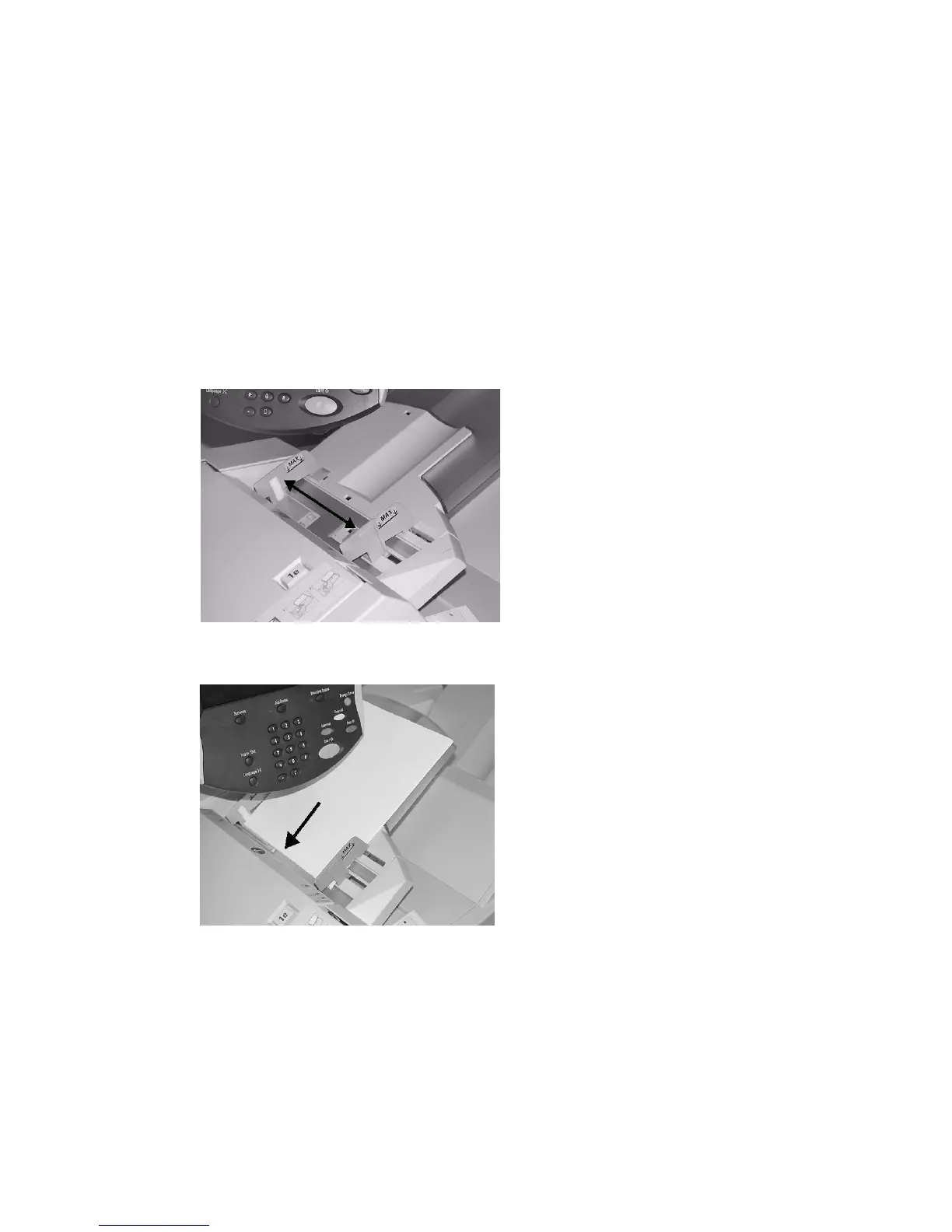

4. Push the tray in gently until it comes to a stop.
Note
When the loaded tray is closed, the tray position is automatically adjusted in the front/back
direction based on the paper size.
Loading paper into Tray 8 (Post-Process Inserter)
The Post-Process Inserter is designed for loading paper that will be used as separators and
covers. You cannot make copies using the Post-Process Inserter media.
Note
Remove any paper that remains loaded into the Inserter.
1. Hold the center of the paper guides and slide them to the desired paper size.
2. Load the paper, aligning to the front side of the tray. If the paper is preprinted, load the
paper with the printed side facing up and with the tab side to be fed first.
To Next Page
