XO FLEX – Installation instructions Installation
15
5 INSTALLATION
5.1 INSTALLATION KIT
The included installation kit contains all necessary components for the installation – both for
installation on concrete floor, wooden floor or on a steel installation plate.

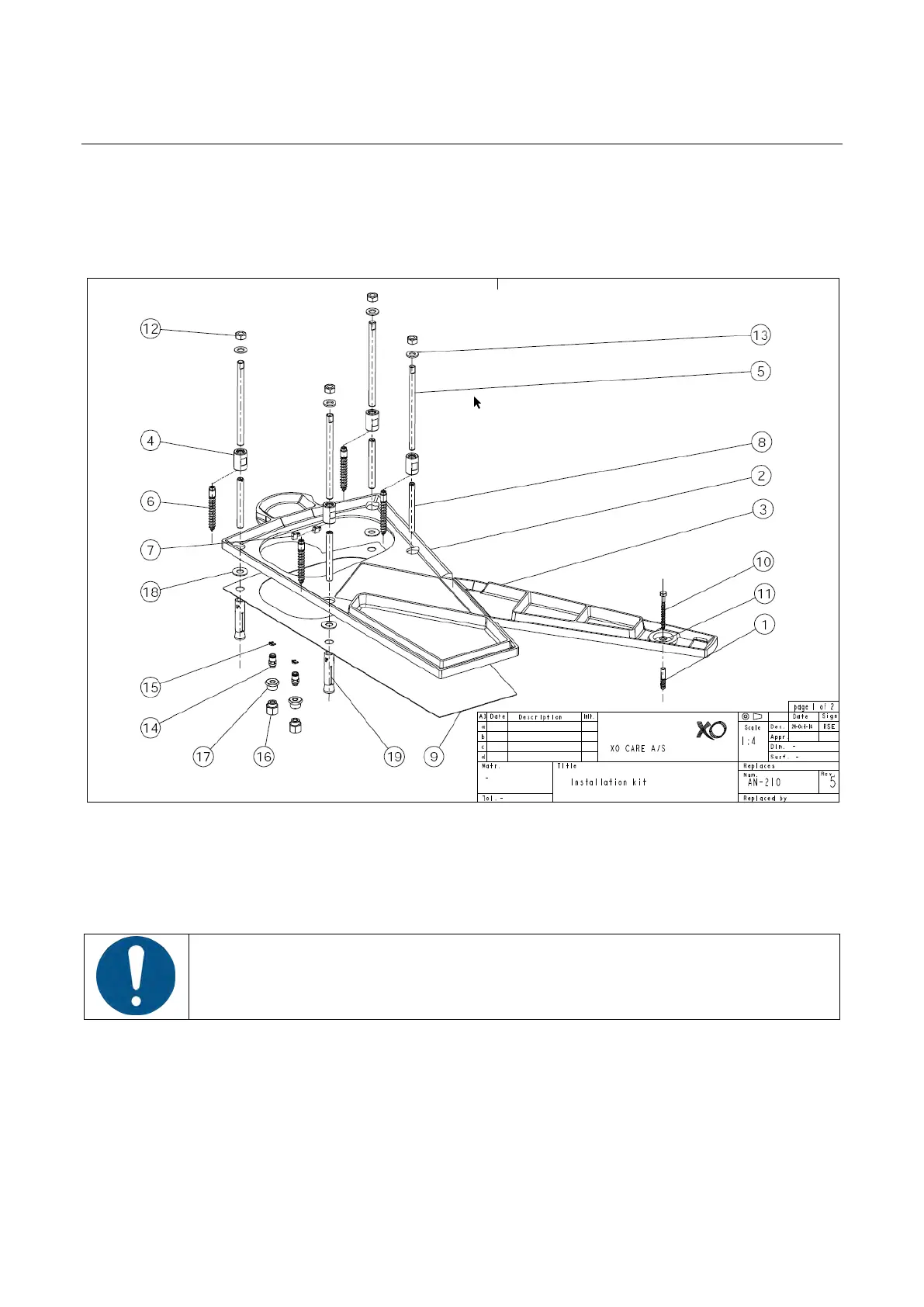

Figure 11 – Installation kit (AN-210)
5.2 INSTALLATION OF THE UNIT STAND
Make sure to place the unit stand correctly in the operatory. See Figure 1.
Prior to drilling holes in the floor, be sure that the supplies and connections have
been laid out correctly in accordance with the requirements mentioned in section 2.1.
Start by placing the 1:1 installation plan (YB-235) on the floor and mark the five hole-positions shown
on the drawing.
For this purpose, a steel drill template can be supplied (AP-919).
