XO FLEX – Installation instructions Installation
22
Figure 21 – Adjustment of the unit stand in the cross-wise direction (B)
5.2.5 ALIGNMENT OF THE SUPPORTING LEG
When the unit stand is plumb, adjustment of the supporting leg and the chair lift can be performed!
Please note that the supporting leg and the chair lift can be adjusted independently of the unit
stand.

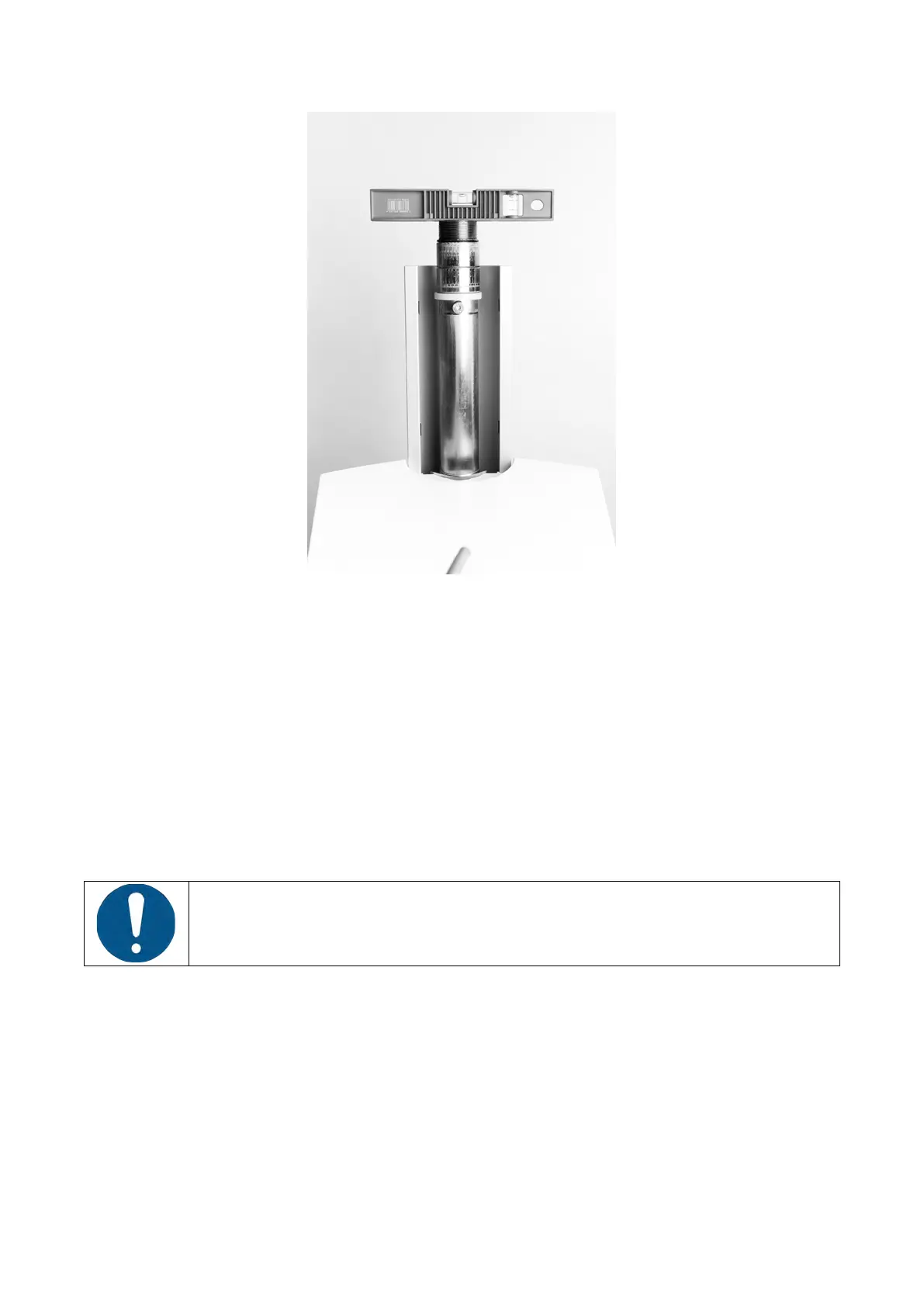

1. Place the spirit level on the chair lift post as shown in Figure 22.
2. The chair lift is adjusted by turning the adjustment bushing in the supporting leg. See Figure 23.
Use the special wrench (MG-416) for this adjustment.
3. When the chair lift is plumb, re-tighten the screw in the center of the adjustment bushing.
If necessary, disconnect the joystick cable during adjustment for better clearance.
Remember to connect the cable correctly.
