XO FLEX – Installation instructions Installation
39

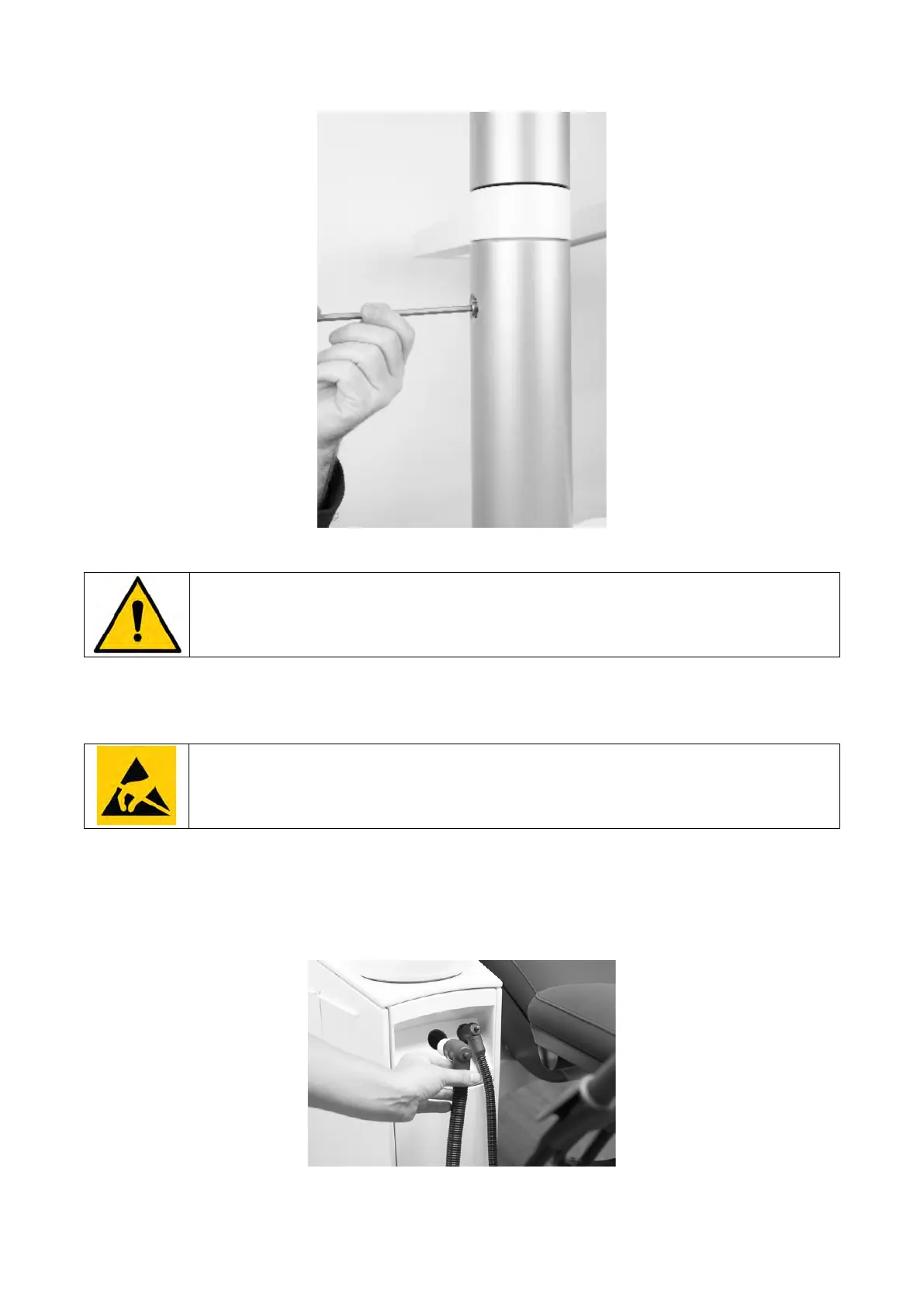

Figure 51 – Fitting the brake
Always remember to fit the cover plug into the hole of the outer cylinder after fitting
the brake.
5.8 ASSISTANT CALL
Connect the cable running from the call system on the Mains Board (marked J19,
CALL.).
5.9 SUCTION HOSES
Unpack the suction hoses and connect them in their designated places: the small hose is
positioned closest to the chair and the large furthest away from the chair. See Figure 52.
Figure 52 – Connection of suction hoses
