5.10 INSTALLATION OF DÜRR INTRA ORAL CAMERA
Please refer to duerrdental.com for installation software and instructions.
5.11 FINALIZING INSTALLATION OF THE INSTRUMENT BRIDGE
Fit the instrument pad and the bridge protection pad.
The instrument suspensions and instrument hoses are delivered separately and must be fitted to
their designated positions. Matching instrument hoses should be attached as instructed by the
customer in their designated positions (hoses marked with numbers 1–6). See Figure 53.

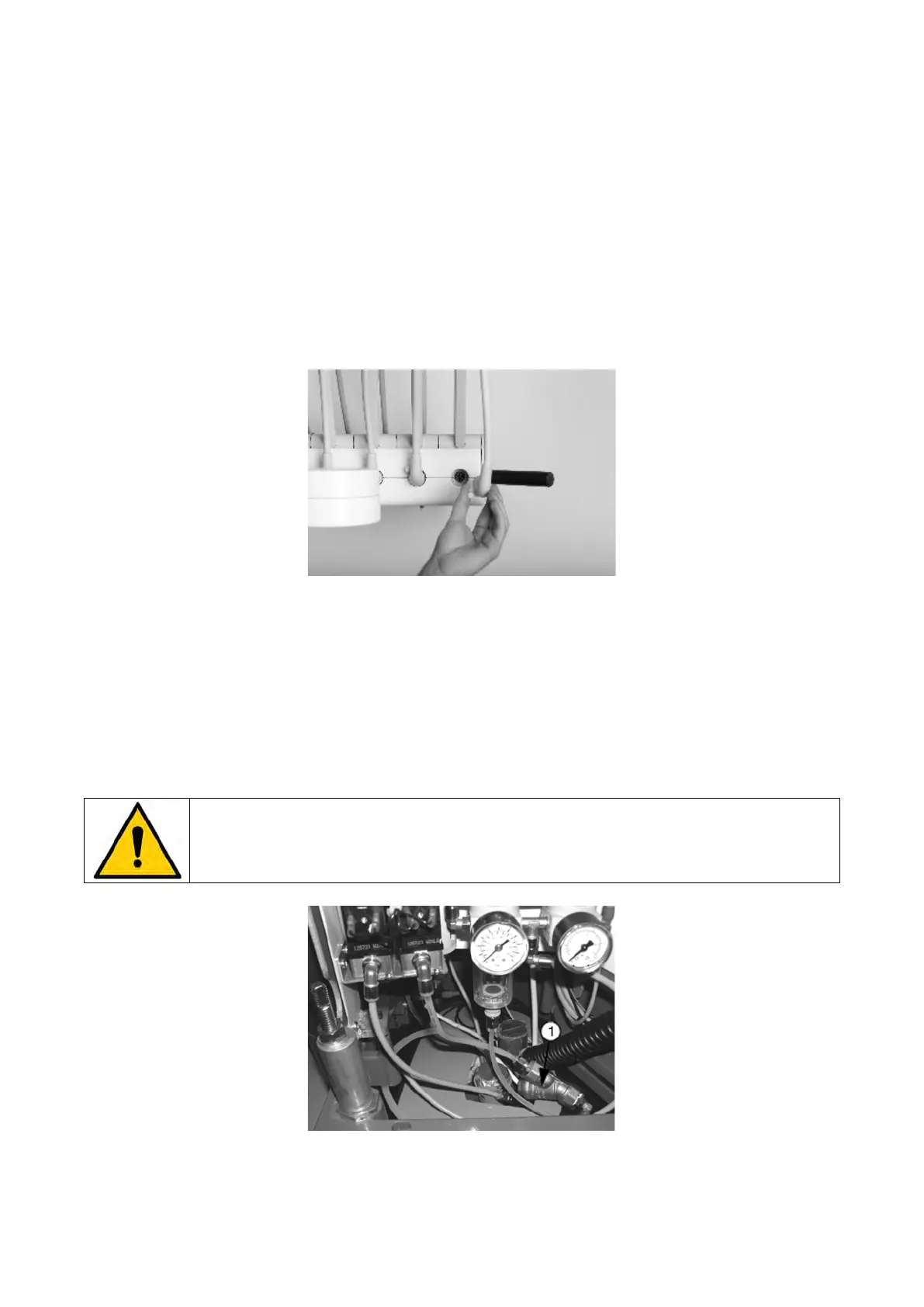

Figure 53 – Fitting the instrument suspensions and hoses
5.12 CONNECTING WATER, COMPRESSED AIR, SUCTION/DRAIN AND POWER SUPPLY
1. Attach the water and air fittings to the ball valve in the floor.
2. Connect the transparent water hose and blue air hose as shown in Figure 54. Secure the hoses
in the fittings with the locking clips supplied with the installation kit AN-210.
3. Connect the unit suction system to the suction installation.
4. Connect the drain hose from the unit to the wastewater installation.
Flush the water pipes and blow thoroughly through air pipe before connecting the
unit.
Figure 54 – Connecting incoming water and air
