XO FLEX – Installation instructions Installation
33
FITTING THE BRAKE
1. Turn the outer cylinder until the hole for the brake aligns with the hole in the outer cylinder. See
Figure 42.
2. Fit the brake in the rear arm of the operating light through the hole in the outer cylinder
3. Adjust the brake to the desired friction:
• Turn clockwise to increase friction
• Turn counter-clockwise to decrease friction
4. Fit the cover plug into the hole of the outer cylinder – see Figure 43.

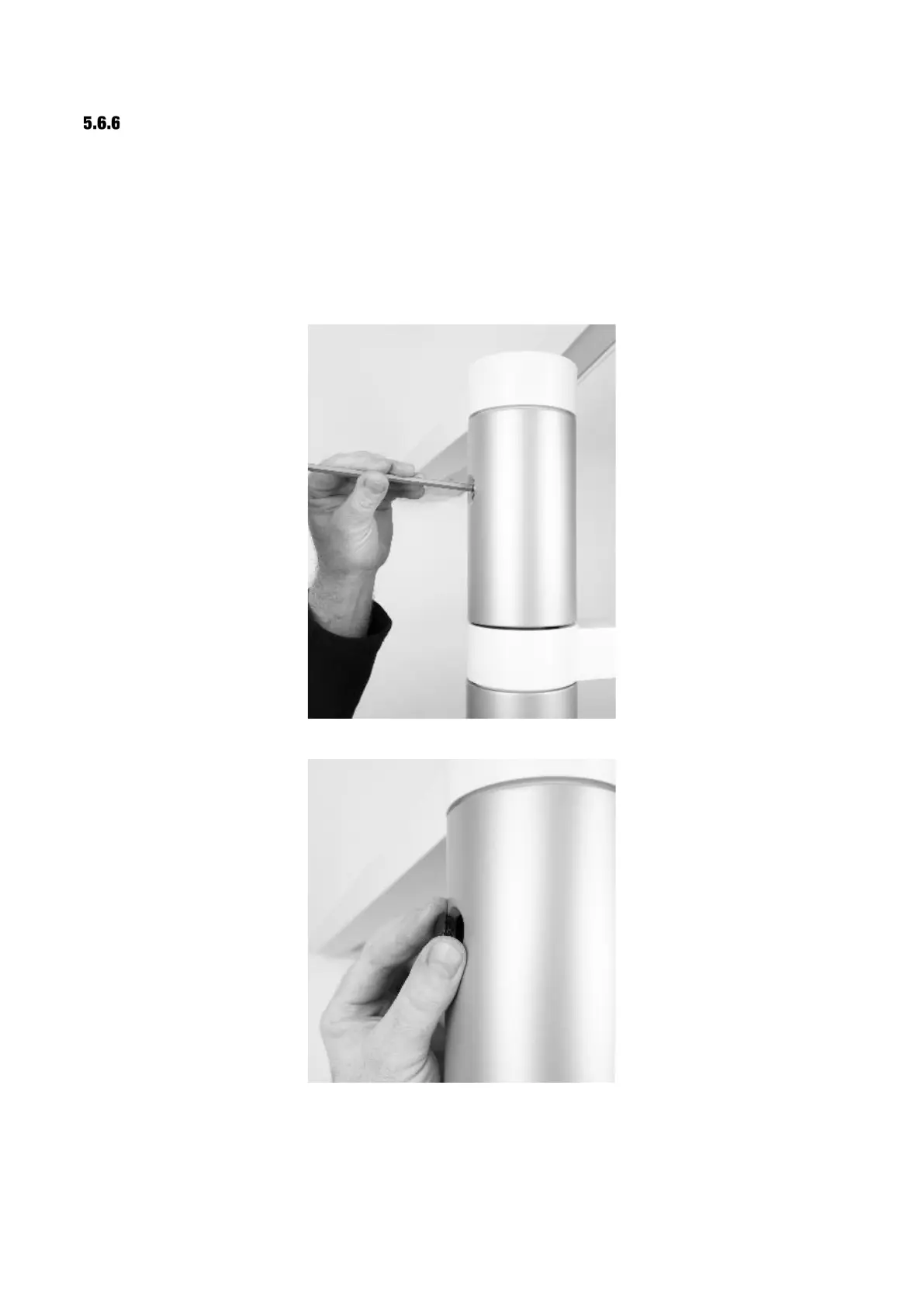

Figure 42 – Fitting the brake
Figure 43 – Fitting the cover plug
