XO FLEX – Installation instructions Installation
31

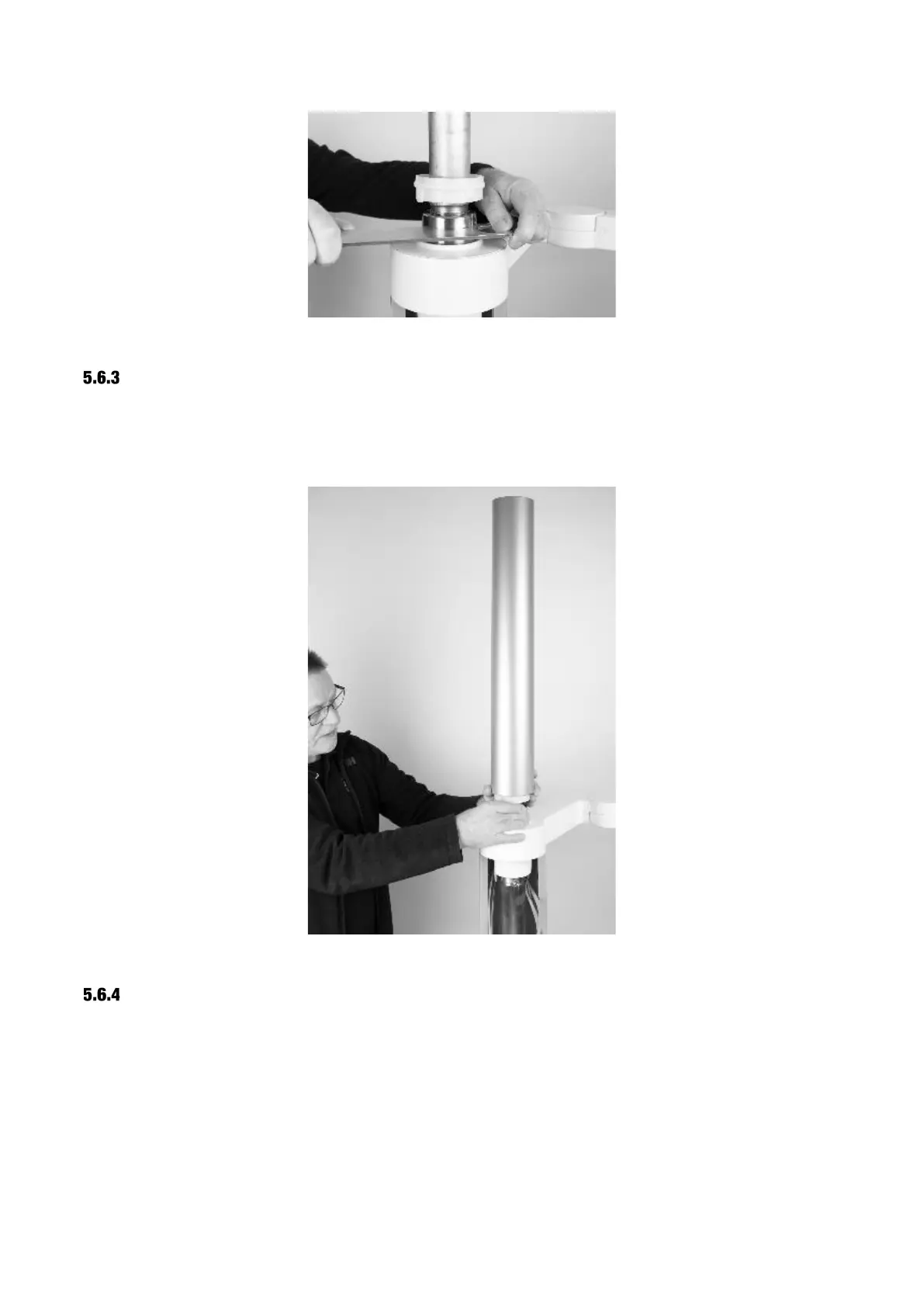

Figure 38 – Fitting the light arm post
FITTING THE LIGHT ARM CYLINDRIC COVER
Lower the Ø 100 outer cylinder over the light arm post; be careful not to push the O-rings in the
outer cylinder out of their grooves. The outer cylinder must rest against the adjustable plastic ring.
The plastic ring has been adjusted at the factory. See Figure 39.
Figure 39 – Fitting the outer cylinder
CEILING HEIGHT LESS THAN 255 CM
The ceiling height of the room needs to be at least 255 cm if the outer cylinder of the light is to be
fitted in the manner described.
If the ceiling height is less than 255 cm, however, the outer cylinder and the light arm post will need
to be fitted simultaneously. The outer cylinder may be raised, tilted and supported on top of the
lower plastic guide ring while the light arm post is fitted and fastened.
