Page 108 FT-2000D OPERATING MANUAL

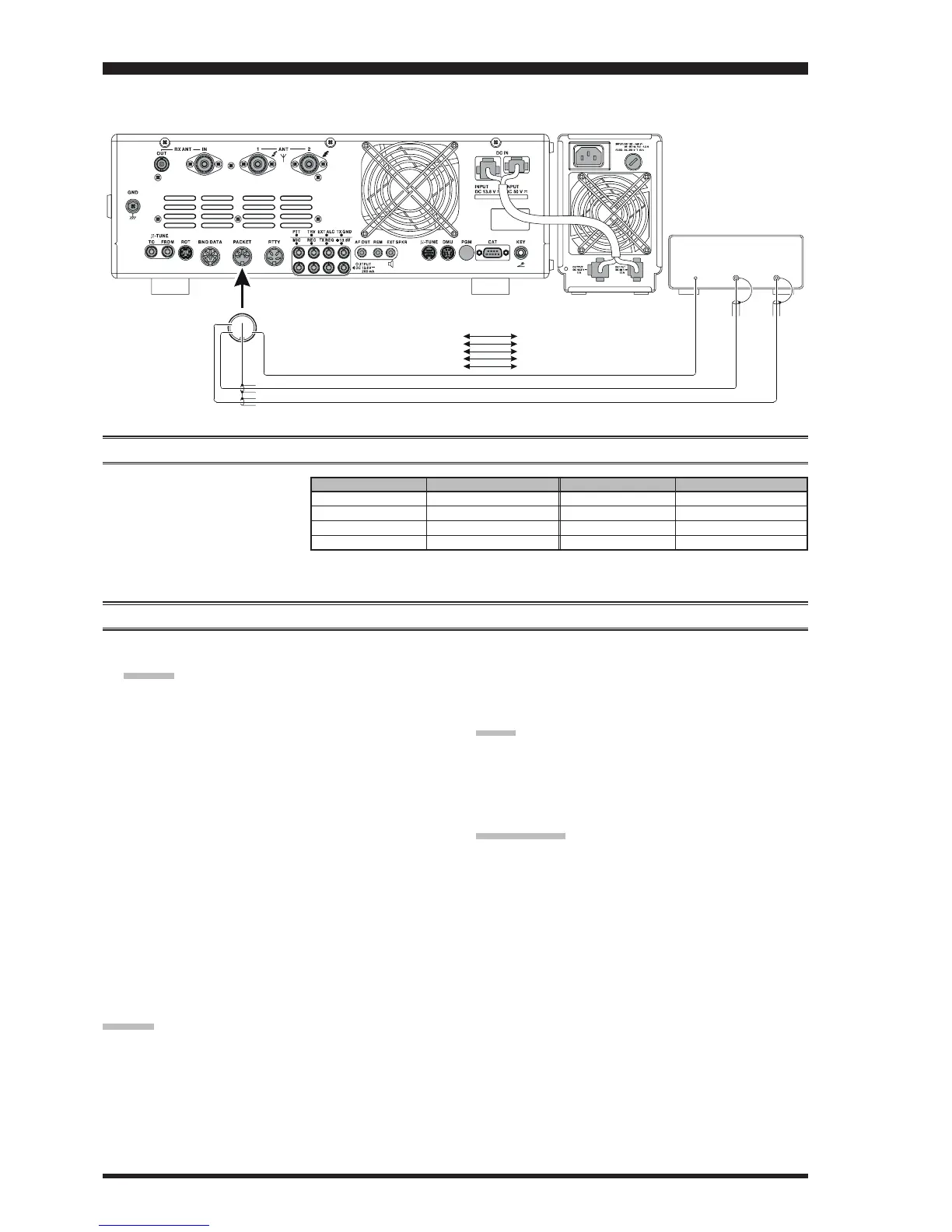

Packet operation is easily accomplished on the FT-2000D by connecting your TNC (Terminal Node Controller) to the
transceiver, per the illustration. “Packet” operation also applies to SSB-based AFSK data modes, such as PSK31, etc.
PACKET OPERATION
PACKET SETUP
(
INCLUDING SUBCARRIER FREQUENCY
)
Before operation can commence,
some basic setup procedures must
be performed, using the Menu, to
configure your radio for the data
mode to be used.
BASIC SETUP
1. Press the
[
PKT
]
button.
ADVICE:
 For HF operation, SSB-based Data operation is gen-
erally used. One press of the
[
PKT
]
button will
engage Packet operation in the “LSB” mode (by
default). Both the “PKT” and “LSB” LEDs will
become illuminated.
 If you need to do FM-based 1200-baud packet on
the 29/50 MHz bands, press the
[
PKT
]
button re-
peatedly to illuminate the “PKT” LED to orange,
to engage the “PKT-FM” mode.
 When both the “PKT” and “USB” LEDs are illu-
minated, the FT-2000D has engaged Packet op-
eration in the “USB” mode.
2. When the “transmit” command is received from the
TNC, the transmitter of the FT-2000D will automati-
cally be engaged. Likewise, the command to return to
receive will cause the radio to revert to the receive
mode.
ADVICE:
 If you need to adjust the output level from the “DATA
OUT” pin of the PACKET jack (pin 4) on the radio,
please use Menu item “069 dAtA OUT LVL.” For the
input level from the TNC, as applied to the DATA IN
pin of the PACKET jack (pin 1), please use Menu item
“067 dAtA DT GAIN.”
 During Packet operation via the rear panel’s PACKET
jack, the front panel MIC jack is cut off, so you won’t
have a “live microphone” problem during data opera-
tion.
NOTE:
If you anticipate making data transmissions of longer than
a few minutes, we recommend that you use the
[
RF PWR
]
knob to reduce the transmitter power to 1/3 ~ 1/2 of its
normal maximum.
QUICK POINT:
PACKET Jack Specifications
 DATA IN (Pin 1)
Input Level: 50 mVp-p
Input Impedance: 10 k-Ohms
 DATA OUT (Pin 4)
Fixed level, does not respond to setting of
[
AF GAIN
]
or
[
SQL
]
knob.
Output Level: 100 mVp-p max.
Output Impedance: 10 k-Ohms
MENU ITEM AVAILABLE VALUES
066 dAtA DATA IN dAtA
(
DATA
)
/ PC
(
PC
)
067 dAtA DT GAIN 0 ~ 100
068 dAtA DT OUT nAin
(
Main
)
/ Sub
(
Sub
)
069 dAtA OUT LVL 0 ~ 100
MENU ITEM AVAILABLE VALUES
070 dAtA VOX DLY 30 ~ 3000 msec
071 dAtA V GAIN 0 ~ 100
072 dAtA PKTDISP –3000 ~ +3000 Hz
073 dAtA PKT SFT –3000 ~ +3000 Hz
DATA
OUTPTT
DATA
IN
①
⑤④
③
②
PACKET
PACK ET JACK T NC
Pin 1
(
DATA IN
)
Pin 2
Pin 3
Pin 4
Pin 5
(
GND
)
(
PACKET PTT
)
(
DATA OUT
)
(
BUSY
)
DATA OUT
GND
PTT
DATA IN
(SQL Control)
