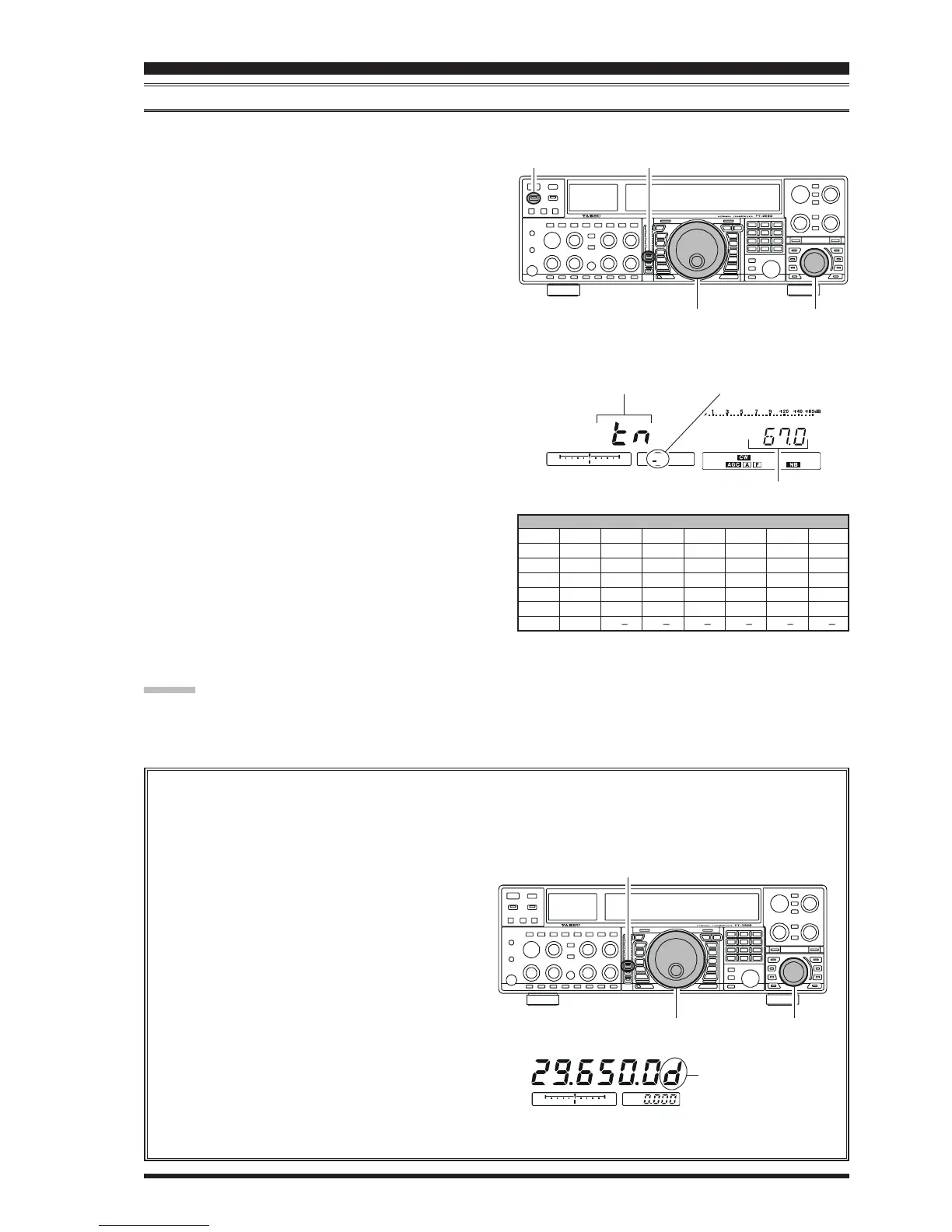

Page 97FT-2000D OPERATING MANUAL
FM MODE OPERATION
REPEATER OPERATION
[
AM/FM
]
Button
[
MOX
]
Button
CTCSS TONE FREQUENCY
(
Hz
)
67.0 69.3 71.9 74.4 77.0 79.7 82.5 85.4
88.5 91.5 94.8 97.4 100.0 103.5 107.2 110.9
114.8 118.8 123.0 127.3 131.8 136.5 141.3 146.2
151.4 156.7 159.8 162.2 165.5 167.9 171.3 173.8
177.3 179.9 183.5 186.2 189.9 192.8 196.6 199.5
203.5 206.5 210.7 218.1 225.7 229.1 233.6 241.8
250.3 251.4
You may also use “Tone Squelch” whereby your receiver will be kept silent until an incoming signal bearing a
matching CTCSS tone is receiver. Your receivers squelch will then open in response to the reception of the required
tone.
Main Tuning Dial Knob
[
SUB VFO-B
]
Knob
[
AM/FM
]
Button
Main Tuning Dial Knob
[
SUB VFO-B
]
Knob
The FT-2000D may be utilized on 29 MHz and 50 MHz repeaters.
ADVICE:
The conventional repeater shift used on 29 MHz is 100 kHz, while on the 50 MHz band the shift may vary between 500 kHz
and 1.7 MHz (or more). To program the proper repeater shift, use Menu items “076 F3E 28 RPT” (28 MHz) and “077 F3E
50 RPT” (50 MHz), as appropriate.
1. Rotate the Main tuning Dial to the output frequency
(downlink) from the repeater.
2. Press and hold in the
[
AM/FM
]
button for two sec-
onds to engage the CTCSS mode.
3. Rotate the Main Tuning Dial to choose “
tsts
tsts
ts” from
the available choices of
oFFoFF
oFFoFF
oFFÆ
tntn
tntn
tnÆ
tsts
tsts
tsÆ
oFFoFF
oFFoFF
oFF.”
4. Rotate the
[
SUB VFO-B
]
knob to select the de-
sired CTCSS Tone to be used. A total of 50 stan-
dard CTCSS tones are provided (see the CTCSS
Tone Chart).
5. Press and hold in the
[
AM/FM
]
button for two sec-
onds. On the display, just below the “10 Hz” fre-
quency digit, a small “
” will indicate that the Tone
Decoder is engaged.
1. Rotate the Main Tuning Dial knob to the output fre-
quency (downlink) from the repeater.
2. If CTCSS Tone operation is desired/needed, press and
hold in the
[
AM/FM
]
button for two seconds to en-
gage the CTCSS mode.
3. Rotate the Main Tuning Dial knob to select the desired
CTCSS mode. If you just need to send the uplink en-
coding tone, select “
tntn
tntn
tn.” For encode/decode operation,
choose “ts” instead. The available choices are
oFFoFF
oFFoFF
oFFÆ
tntn
tntn
tnÆ
tsts
tsts
tsÆ
oFFoFF
oFFoFF
oFF.”
4. Rotate the
[
SUB VFO-B
]
knob to select the desired
CTCSS Tone to be used. A total of 50 standard CTCSS
tones are provided (see the CTCSS Tone Chart).
5. Press the
[
AM/FM
]
Mode button to select the desired
repeater shift direction. The selections are
SS
SS
SÆ
++
++
+Æ
Æ
SS
SS
S
where “
SS
SS
S” represents “Simplex” operation (not used
on a repeater).
6. Press and hold in the
[
AM/FM
]
button for two seconds
to exit from the repeater setup mode.
7. Close the microphone’s PTT switch (or press the
[
MOX
]
button) to begin transmission. You will observe
that the frequency has shifted to correspond to the pro-
gramming you set up in the previous steps. Speak into
the microphone in a normal voice level, and release
the PTT switch or
[
MOX
]
button to return to the re-
ceive mode.
CTCSS Tone Frequency
CTCSS Operation
tntn
tntn
tn: Tone Encoder
tStS
tStS
tS: Tone Squelch
oFFoFF
oFFoFF
oFF: OFF
Repeater Shift Direction
: Minus Shift
++
++
+: Plus Shift
SS
SS
S: Simplex
Tone Decoder “ON”
