Throttle link

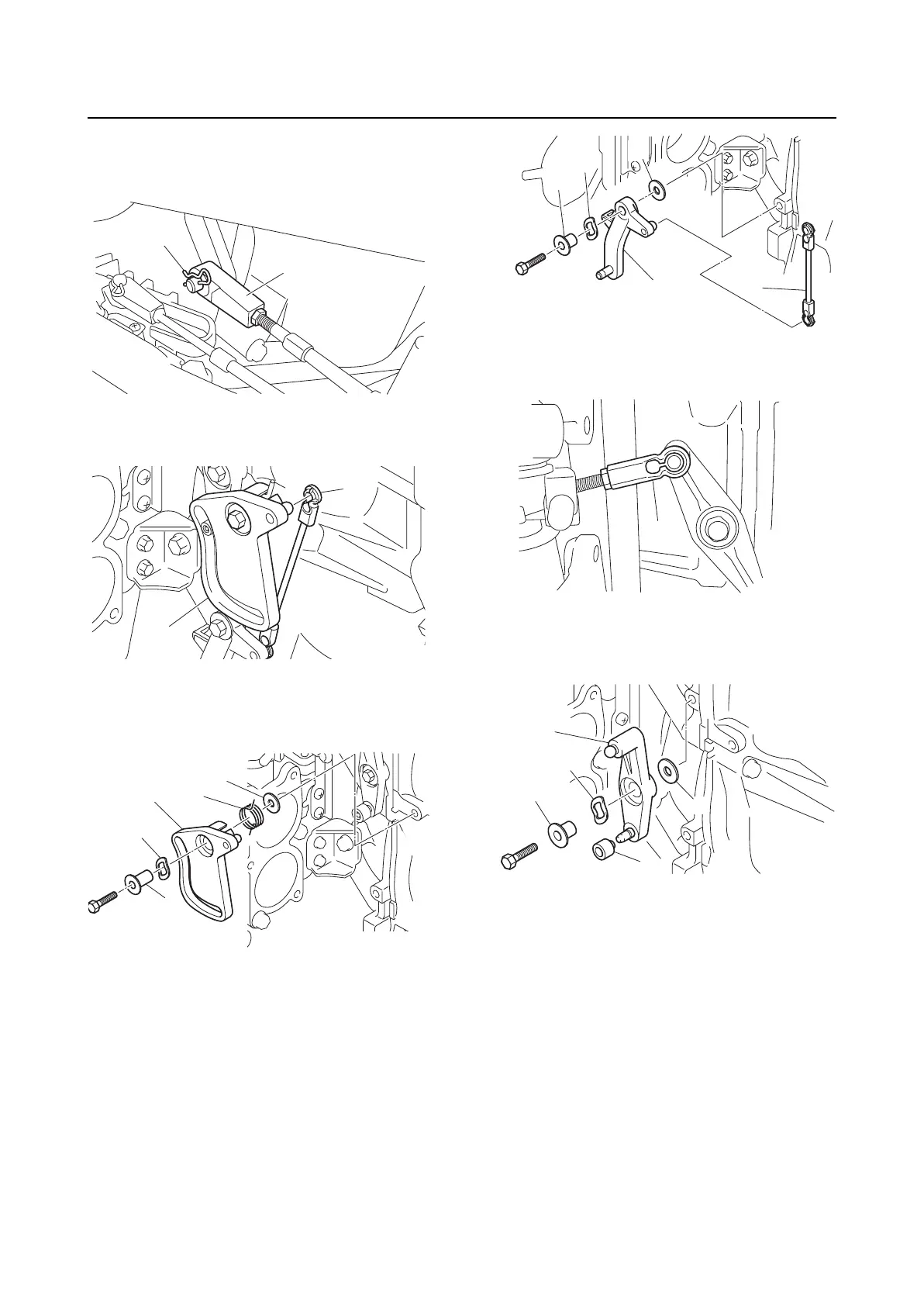

Removing the throttle link
1. Remove the clip “1” and throttle cable
joint “2”.
2. Remove the throttle link rod “1” from the
throttle cam “2”.
3. Remove the collar “1”, wave washer “2”,
throttle cam “3”, spring “4”, and washer
“5”.
4. Remove the collar “1”, wave washer “2”,
throttle lever 2 “3”, washer “4”, and throt-
tle link rod “5”.
5. Disconnect the throttle link joint assembly
“1”.
6. Remove the collar “1”, wave washer “2”,
throttle lever 1 “3”, washer “4”, and roller
“5”.
Checking the throttle link
1. Check throttle lever 1, roller, and throttle
cam. Replace if cracked or worn.
2. Check throttle lever 2 and throttle link
rod. Replace if cracked or worn.
3. Check the spring. Replace if deformed or
fatigued.
Installing the throttle link
1. Install the roller “1”, washer “2”, wave
washer “3”, and collar “4” onto throttle
lever 1 “5”.
2
1
2
1
4
3
5
2
1
5
4
2
1
3
1
5
4
2
1
3
