Yamaha F150A Service Manual

9-20
Oil pan and exhaust manifold
0
1
2
3
4
5
6
7
8
9
10
A

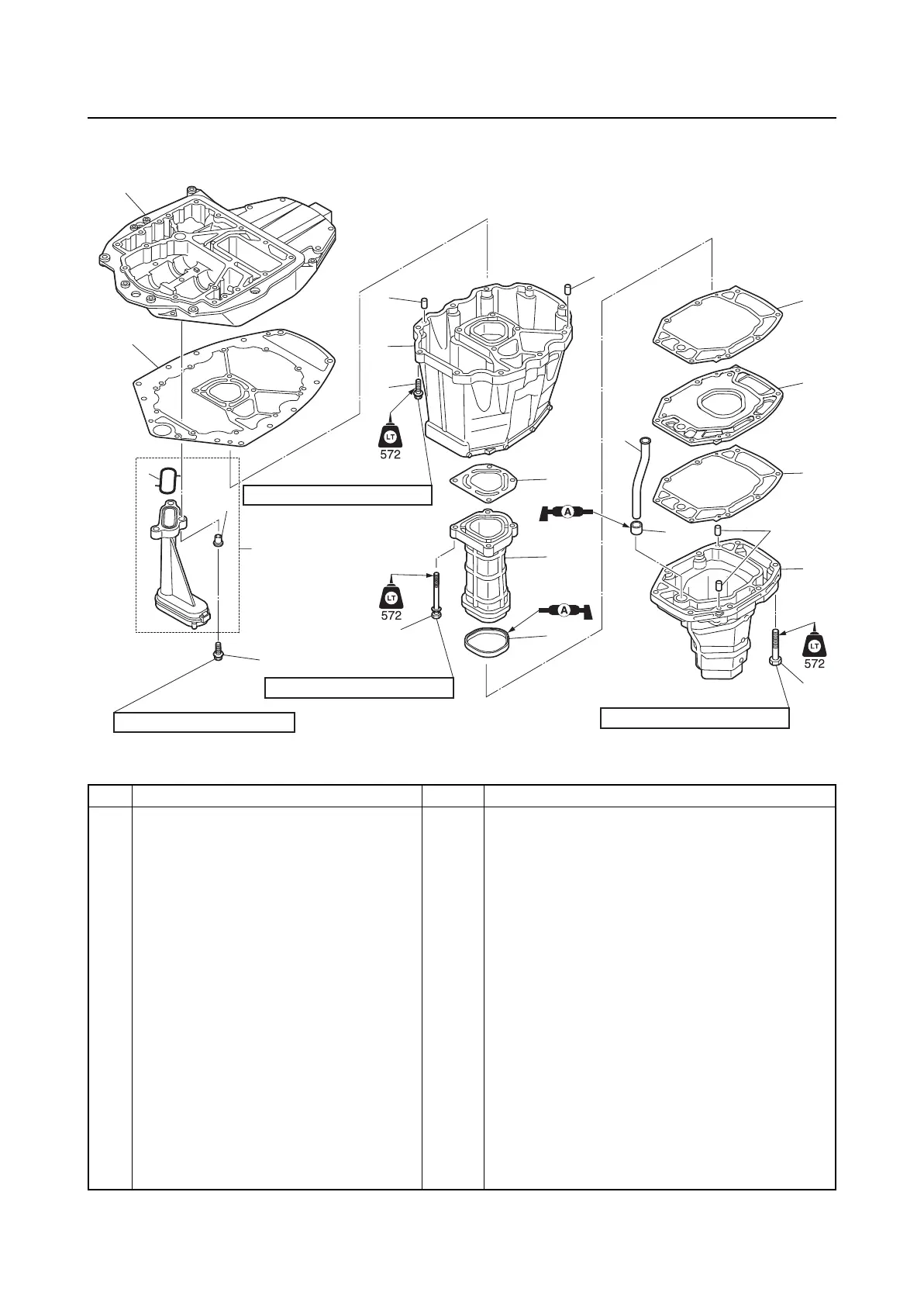

Oil pan and exhaust manifold
No. Part name Q’ty Remarks
1 Exhaust guide 1
2 Gasket 1 Not reusable
3 Gasket 1 Not reusable
4 Collar 3
5 Oil strainer 1
6Bolt 3 M6 × 25 mm
7Dowel 2
8 Oil pan 1
9Bolt 10 M8 × 35 mm
10 Bolt 4 M8 × 60 mm
11 Gasket 1 Not reusable
12 Exhaust manifold 1
13 Rubber seal 1
14 Gasket 2 Not reusable
15 Plate 1
16 Water pipe 1
17 Rubber seal 1
1
2
3
4
5
6
7
7
8
9
10
11
12
13
14
14
15
16
17
18
19
20
12 N·m (1.2 kgf·m, 8.9 ft·lb)
20 N·m (2.0 kgf·m, 14.8 ft·lb)
20 N·m (2.0 kgf·m, 14.8 ft·lb)
20 N·m (2.0 kgf·m, 14.8 ft·lb)
