Power unit assembly

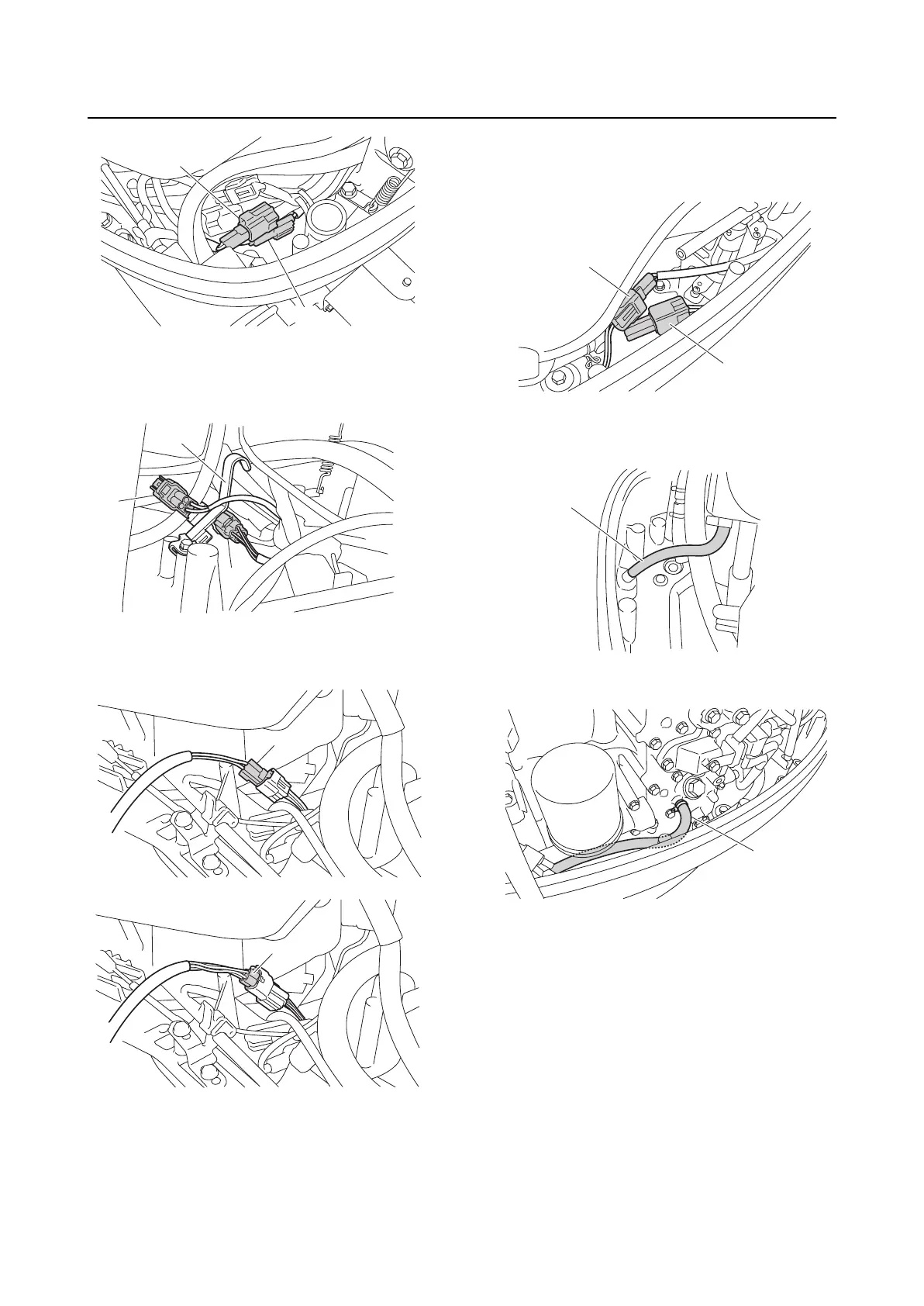

10. Remove the 6Y8 Multifunction Meter har-
ness coupler “a” and gauge harness cou-
pler “b” from the bracket “1”.
11. Disconnect the 6Y8 Multifunction Meter
harness coupler “a” or gauge coupler “b”.
A. 6Y8 Multifunction Meter
B. Conventional gauge
12. Disconnect the shift cut-off switch cou-
pler “a” and shift position switch coupler
“b”.
13. Disconnect the cooling water pilot hose
“1”.
14. Disconnect the flushing hose “1”.
15. Remove the apron “1”.
a
b
1
b
a
a
A
b
B
a
b
1
1
To Next Page
