3-10
Rigging grommet mounting
0
1
2
3
4
5
6
7
8
9
10
A

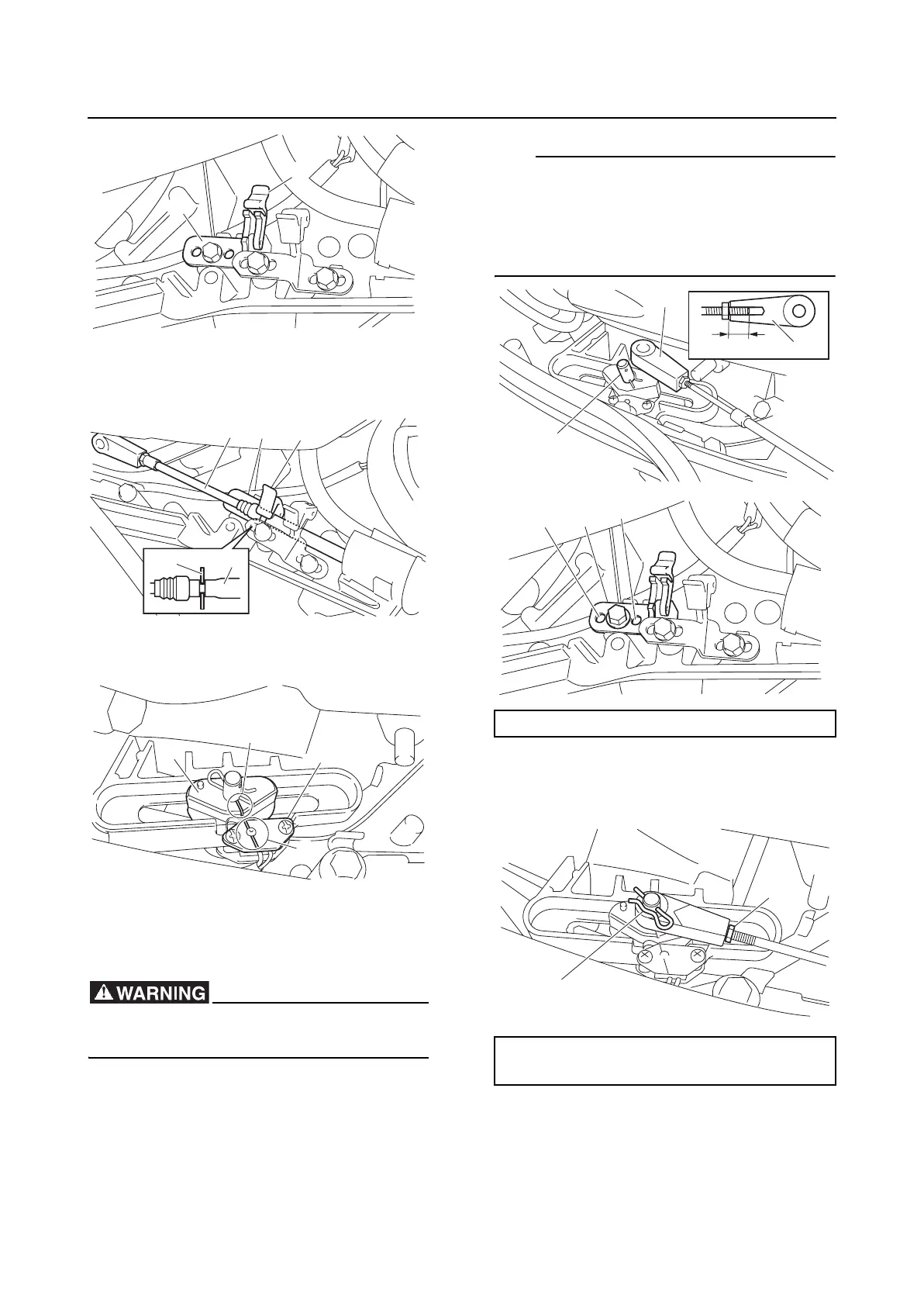

5. Install the shift cable “1” to the shift cable
holder “2” and fasten it using the holder
“3”.
6. Align the mark “a” on the bushing “1” with
the mark “b” on the plate “2”.
7. Adjust the shift cable joint “1”, and then
install the shift cable joint “1” to the pin
“2”.
The shift cable joint must be screwed in
8.0 mm (0.31 in) or more “a”.
TIP:
When it is not possible to ensure cable
screw-in length of 8.0 mm (0.31 in) or more,
remove the shift cable holder “3”, and then
reinstall it to the hole “b” or “c” to adjust the
length.
8. Install the clip “1”, and then tighten the
shift cable locknut “2” to the specified
torque.
9. Check the shift cable for proper opera-
tion.
2
1
1
1
2
3
2
b
1
2
a
Dimension “a”: 8.0 mm (0.31 in) or more
Shift cable locknut “2”:
5 N·m (0.5 kgf·m, 3.7 ft·lb)
1
1
2
a
3
b
c
1
2
To Next Page
