INSTRUMENT AND CONTROL FUNCTIONS
3-2
3
EAU03034
Indicator and warning lights
EAU04121
Turn signal indicator lights
“”and “”
The corresponding indicator light flash-
es when the turn signal switch is
pushed to the left or right.
EAU00061
Neutral indicator light “”
This indicator light comes on when the
transmission is in the neutral position.
EAU00063
High beam indicator light “”
This indicator light comes on when the
high beam of the headlight is switched
on.
EAU04877
Oil level warning light “”
This warning light comes on when the
engine oil level is low.
The electrical circuit of the warning light
can be checked by turning the key to
“ON”.
If the warning light does not come on
for a few seconds, then go off, have a
Yamaha dealer check the electrical cir-
cuit.
NOTE:
_
Even if the oil level is sufficient, the
warning light may flicker when riding on
a slope or during sudden acceleration
or deceleration, but this is not a mal-
function.
_
EAU04881
Coolant temperature warning light
“”
This warning light comes on when the
engine overheats. When this occurs,
stop the engine immediately and allow
the engine to cool.
The electrical circuit of the warning light
can be checked by turning the key to
“ON”.
If the warning light does not come on
for a few seconds, then go off, have a
Yamaha dealer check the electrical cir-
cuit.
EC000002
CAUTION:
_
Do not operate the engine if it is
overheated.
_

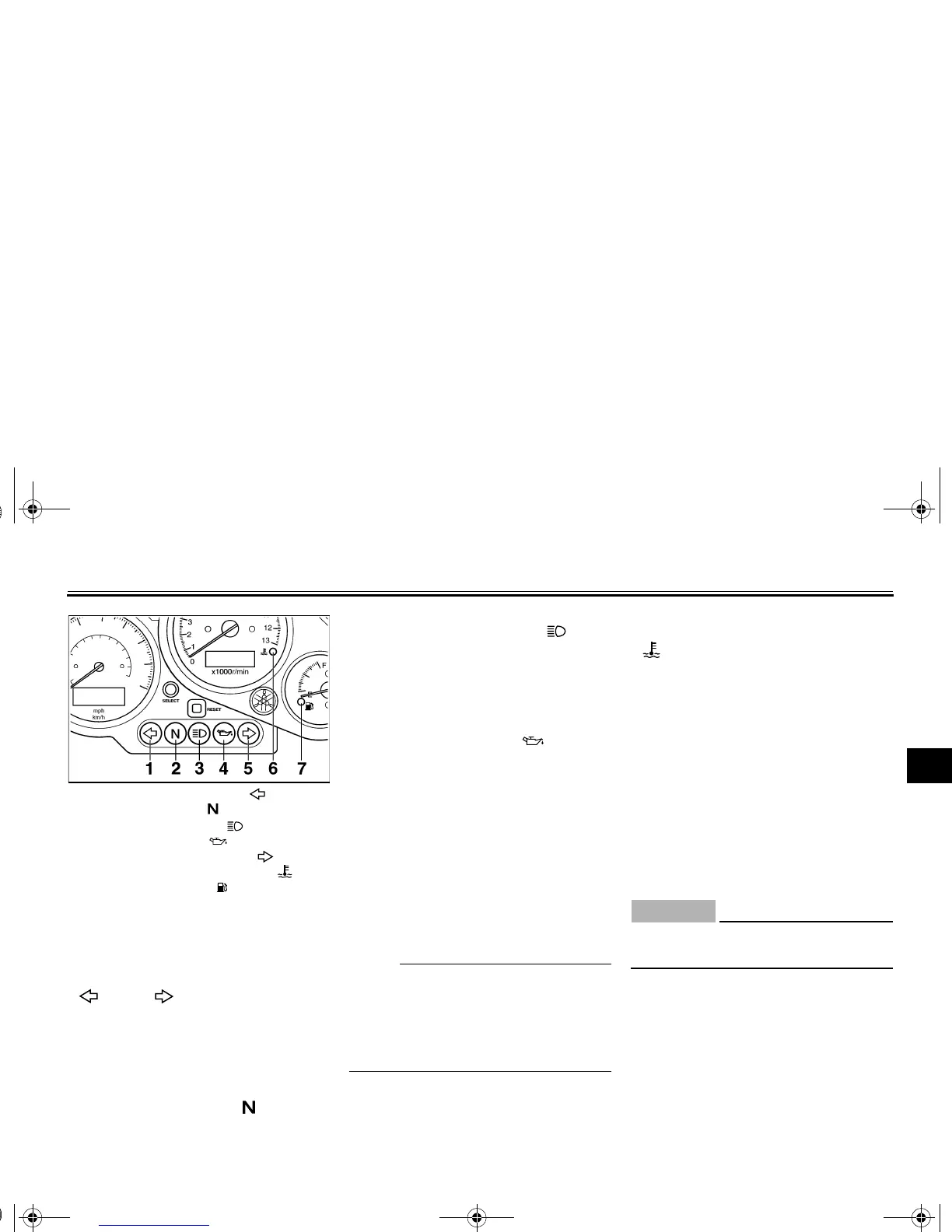

1. Left turn signal indicator light “”
2. Neutral indicator light “”
3. High beam indicator light “”
4. Oil level warning light “”
5. Right turn signal indicator light “”
6. Coolant temperature warning light “”
7. Fuel level warning light “”
U5LV12.book Page 2 Thursday, June 27, 2002 5:49 PM

Yamaha FZ1 Specifications

General

Displacement	998cc
Bore x Stroke	77.0 mm x 53.6 mm
Compression Ratio	11.5:1
Fuel Delivery	Fuel Injection
Transmission	6-speed
Final Drive	Chain
Front Tire	120/70-ZR17
Rear Tire	190/50-ZR17
Engine Type	Liquid-cooled, 4-stroke, DOHC, inline 4-cylinder
Ignition	TCI
Front Suspension	43mm inverted fork, fully adjustable
Rear Suspension	Single shock, adjustable preload and rebound damping
Front Brakes	Dual 320mm disc
Rear Brakes	245mm disc
Wheelbase	1, 460 mm (57.5 in)
Seat Height	815 mm (32.1 in)
Fuel Capacity	18 liters (4.8 gallons)
Curb Weight	487 lb
Torque	106 Nm (78.2 ft lbs) @ 8, 000 rpm
Length	2, 140 mm (84.3 in)
Width	770 mm (30.3 in)
Ground Clearance	135mm (5.3 inches)
Wet Weight	487 lb
