PERIODIC MAINTENANCE AND MINOR REPAIR
6-43
6
EAU03963
To install the front wheel
1. Lift the wheel up between the fork
legs.
2. Insert the wheel axle.
3. Lower the front wheel so that it is
on the ground.
4. Install the brake calipers by install-
ing the bolts.
NOTE:
_
Make sure that there is enough space
between the brake pads before install-
ing the brake calipers onto the brake
discs.
_
5. Install the brake hose holders by
installing the bolts.
6. Tighten the wheel axle, the wheel
axle pinch bolt and the brake cali-
per bolts to the specified torques.
7. Push down hard on the handlebar
several times to check for proper
fork operation.
EAU03964

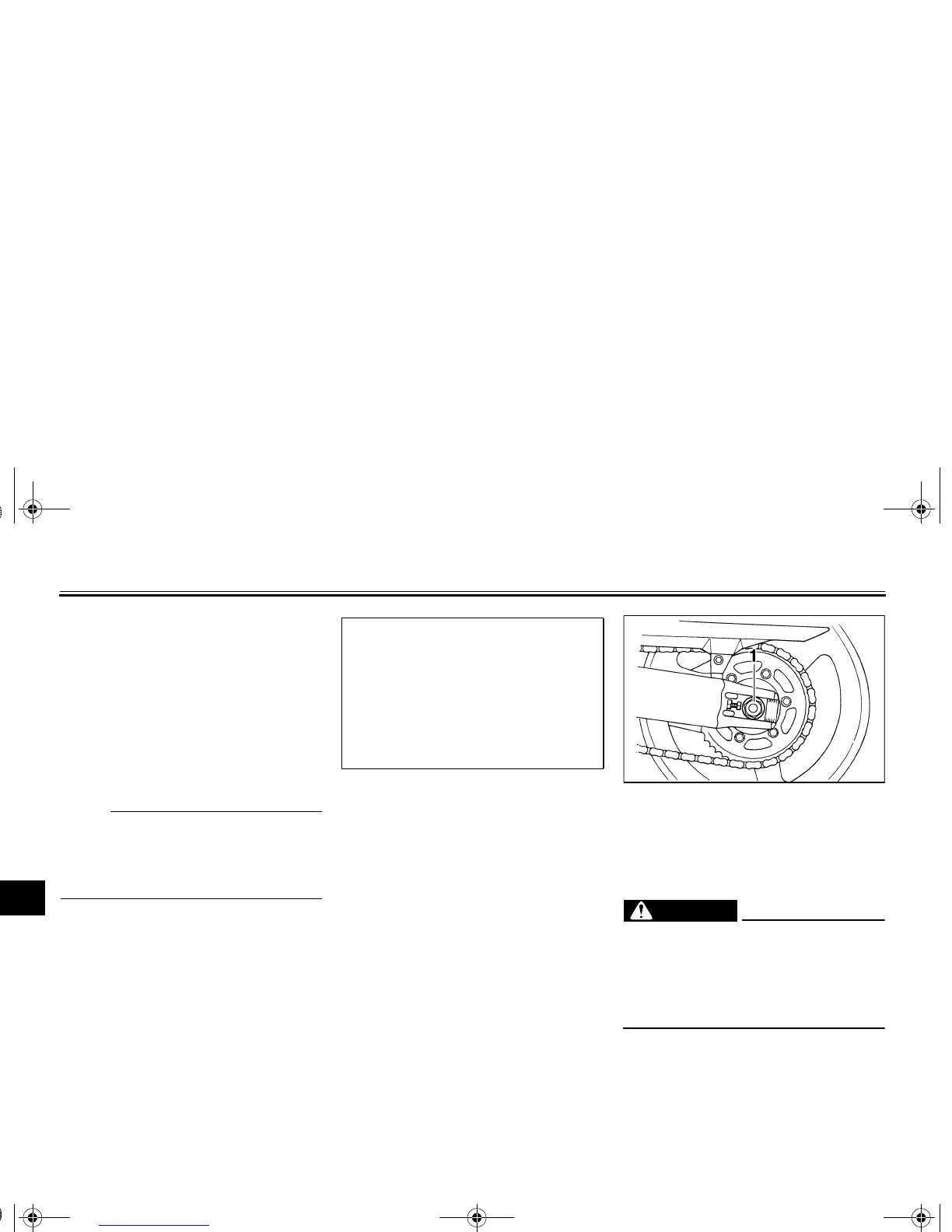

Rear wheel
To remove the rear wheel
EW000122
WARNING
_
●
It is advisable to have a Yamaha
dealer service the wheel.
●
Securely support the motor-
cycle so that there is no danger
of it falling over.
_
1. Loosen the axle nut and the brake
caliper bolts.
2. Place the motorcycle on the cen-
terstand.
Tightening torques:
Wheel axle:
72 Nm (7.2 m·kgf, 52 ft·lbf)
Front wheel axle pinch bolt:
23 Nm (2.3 m·kgf, 17 ft·lbf)
Brake caliper bolt:
40 Nm (4.0 m·kgf, 29 ft·lbf)
1. Axle nut
U5LV12.book Page 43 Thursday, June 27, 2002 5:49 PM
