INSTRUMENT AND CONTROL FUNCTIONS
3-7
3
EAU00152
Clutch lever
The clutch lever is located at the left
handlebar grip. To disengage the
clutch, pull the lever toward the handle-
bar grip. To engage the clutch, release
the lever. The lever should be pulled
rapidly and released slowly for smooth
clutch operation.
The clutch lever is equipped with a
clutch switch, which is part of the ignition
circuit cut-off system. (See page 3-18
for an explanation of the ignition circuit
cut-off system.)
EAU00157
Shift pedal
The shift pedal is located on the left
side of the engine and is used in com-
bination with the clutch lever when
shifting the gears of the 6-speed con-
stant-mesh transmission equipped on
this motorcycle.
EAU00161
Brake lever
The brake lever is located at the right
handlebar grip. To apply the front brake,
pull the lever toward the handlebar grip.
The brake lever is equipped with a po-
sition adjusting dial. To adjust the dis-
tance between the brake lever and the
handlebar grip, turn the adjusting dial
while holding the lever pushed away
from the handlebar grip. Make sure that
the appropriate setting on the adjusting
dial is aligned with the arrow mark on
the brake lever.

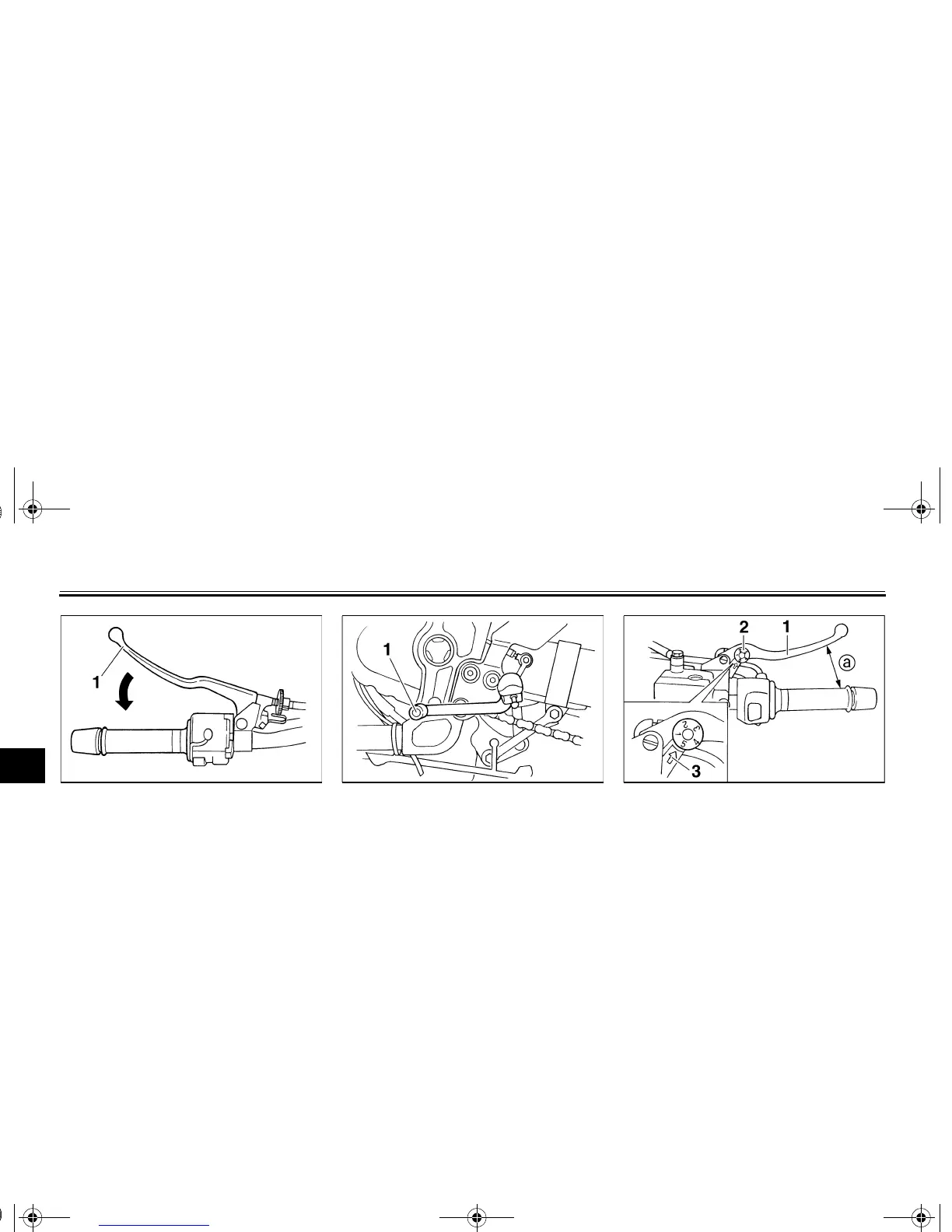

1. Clutch lever 1. Shift pedal 1. Brake lever
2. Brake lever position adjusting dial
3. Arrow mark
a. Distance between brake lever and handlebar
grip
U5LV12.book Page 7 Thursday, June 27, 2002 5:49 PM

Yamaha FZ1 Specifications

General

Displacement	998cc
Bore x Stroke	77.0 mm x 53.6 mm
Compression Ratio	11.5:1
Fuel Delivery	Fuel Injection
Transmission	6-speed
Final Drive	Chain
Front Tire	120/70-ZR17
Rear Tire	190/50-ZR17
Engine Type	Liquid-cooled, 4-stroke, DOHC, inline 4-cylinder
Ignition	TCI
Front Suspension	43mm inverted fork, fully adjustable
Rear Suspension	Single shock, adjustable preload and rebound damping
Front Brakes	Dual 320mm disc
Rear Brakes	245mm disc
Wheelbase	1, 460 mm (57.5 in)
Seat Height	815 mm (32.1 in)
Fuel Capacity	18 liters (4.8 gallons)
Curb Weight	487 lb
Torque	106 Nm (78.2 ft lbs) @ 8, 000 rpm
Length	2, 140 mm (84.3 in)
Width	770 mm (30.3 in)
Ground Clearance	135mm (5.3 inches)
Wet Weight	487 lb
