PERIODIC MAINTENANCE AND MINOR REPAIR
6-41
6
EAU03961
Replacing a tail/brake light
bulb
1. Remove the seat. (See page 3-11
for seat removal and installation
procedures.)
2. Remove the tail/brake light bulb
cover.
3. Remove the socket (together with
the bulb) by turning it counter-
clockwise.
4. Remove the defective bulb by
pushing it in and turning it counter-
clockwise.
5. Insert a new bulb into the socket,
push it in, and then turn it clock-
wise until it stops.
6. Install the socket (together with
the bulb) by turning it clockwise.
7. Install the bulb cover.
8. Install the seat.
EAU03497
Replacing a turn signal light
bulb
1. Remove the turn signal light lens
by removing the screw.
2. Remove the defective bulb by
pushing it in and turning it counter-
clockwise.
3. Insert a new bulb into the socket,
push it in, and then turn it clock-
wise until it stops.
4. Install the lens by installing the
screw.

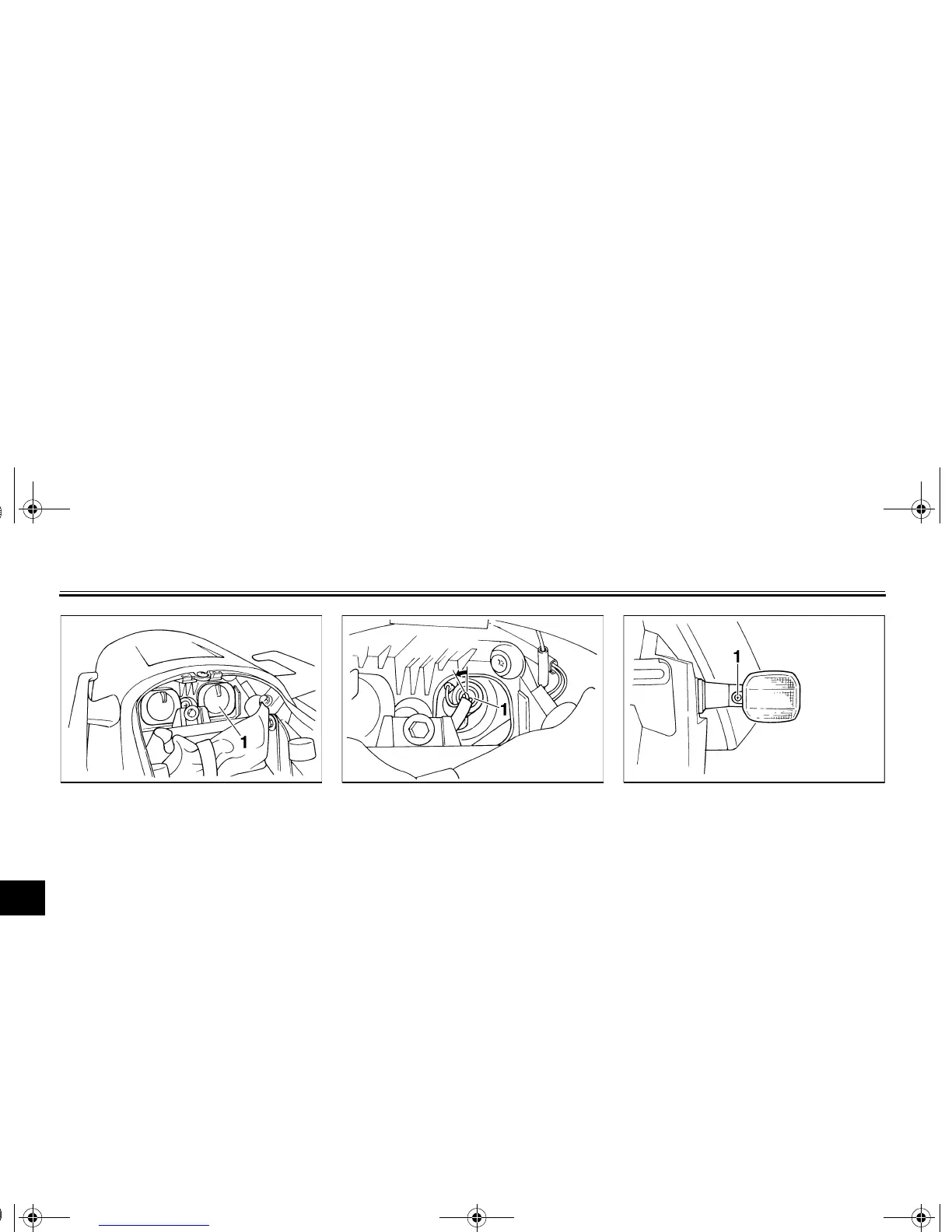

1. Tail/brake light bulb cover 1. Socket 1. Screw
U5LV12.book Page 41 Thursday, June 27, 2002 5:49 PM

Yamaha FZ1 Specifications

General

Displacement	998cc
Bore x Stroke	77.0 mm x 53.6 mm
Compression Ratio	11.5:1
Fuel Delivery	Fuel Injection
Transmission	6-speed
Final Drive	Chain
Front Tire	120/70-ZR17
Rear Tire	190/50-ZR17
Engine Type	Liquid-cooled, 4-stroke, DOHC, inline 4-cylinder
Ignition	TCI
Front Suspension	43mm inverted fork, fully adjustable
Rear Suspension	Single shock, adjustable preload and rebound damping
Front Brakes	Dual 320mm disc
Rear Brakes	245mm disc
Wheelbase	1, 460 mm (57.5 in)
Seat Height	815 mm (32.1 in)
Fuel Capacity	18 liters (4.8 gallons)
Curb Weight	487 lb
Torque	106 Nm (78.2 ft lbs) @ 8, 000 rpm
Length	2, 140 mm (84.3 in)
Width	770 mm (30.3 in)
Ground Clearance	135mm (5.3 inches)
Wet Weight	487 lb
