Yamaha FZ1 User Manual

PERIODIC MAINTENANCE AND MINOR REPAIR
6-39
6
EAU04226
Replacing a headlight bulb
This motorcycle is equipped with two
quartz bulb headlights. If a headlight
bulb burns out, replace it as follows.
1. Remove panel B. (See page 6-9
for panel removal and installation
procedures.)
2. Disconnect the headlight coupler,
and then remove the bulb cover.
3. Unhook the headlight bulb holder,
and then remove the defective
bulb.
EW000119
WARNING
_
Headlight bulbs get very hot. There-
fore, keep flammable products away
from a lit headlight bulb, and do not
touch the bulb until it has cooled
down.
_
4. Place a new headlight bulb into
position, and then secure it with
the bulb holder.

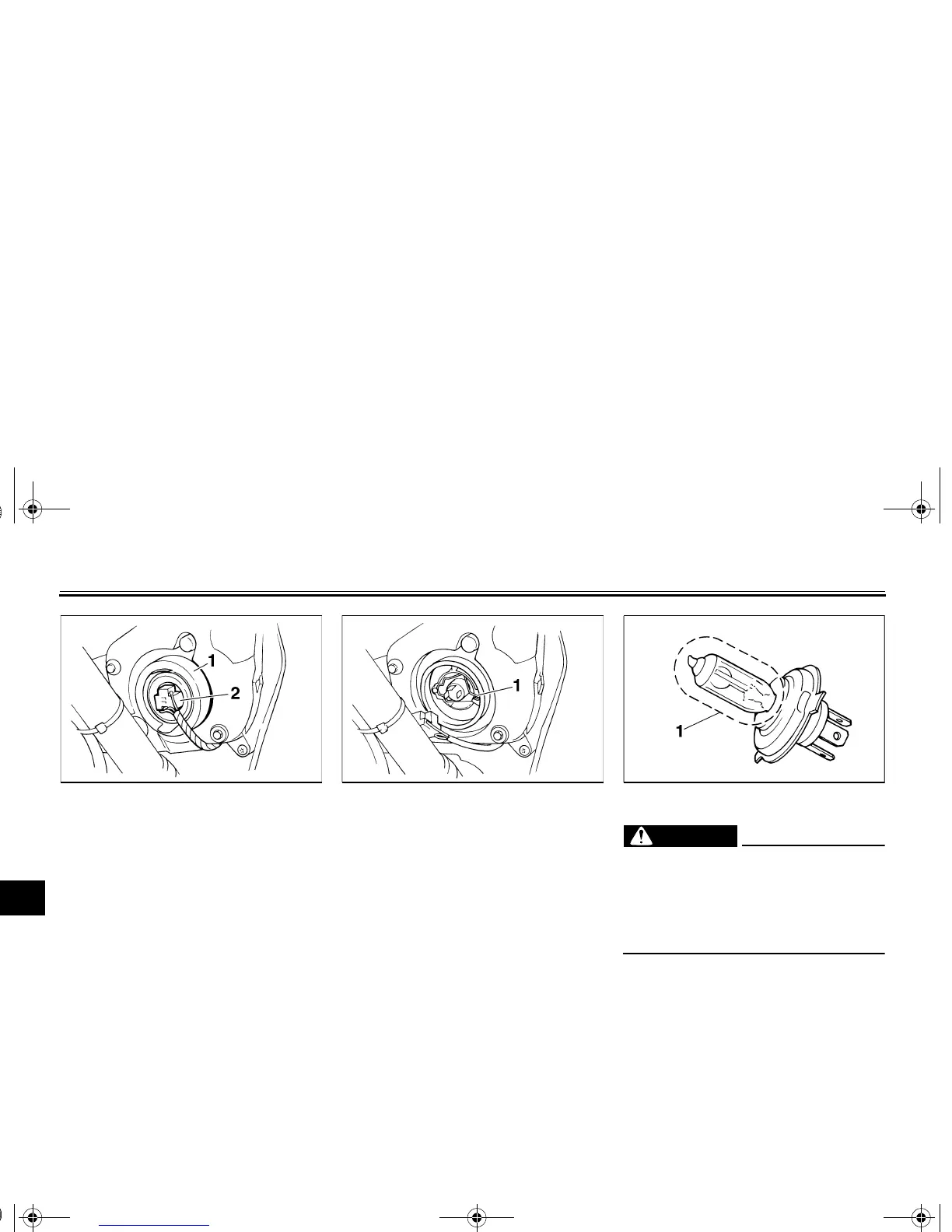

1. Headlight bulb cover
2. Headlight coupler
1. Headlight bulb holder 1. Do not touch the glass part of the bulb.
U5LV12.book Page 39 Thursday, June 27, 2002 5:49 PM

Yamaha FZ1 Specifications

General

Displacement	998cc
Bore x Stroke	77.0 mm x 53.6 mm
Compression Ratio	11.5:1
Fuel Delivery	Fuel Injection
Transmission	6-speed
Final Drive	Chain
Front Tire	120/70-ZR17
Rear Tire	190/50-ZR17
Engine Type	Liquid-cooled, 4-stroke, DOHC, inline 4-cylinder
Ignition	TCI
Front Suspension	43mm inverted fork, fully adjustable
Rear Suspension	Single shock, adjustable preload and rebound damping
Front Brakes	Dual 320mm disc
Rear Brakes	245mm disc
Wheelbase	1, 460 mm (57.5 in)
Seat Height	815 mm (32.1 in)
Fuel Capacity	18 liters (4.8 gallons)
Curb Weight	487 lb
Torque	106 Nm (78.2 ft lbs) @ 8, 000 rpm
Length	2, 140 mm (84.3 in)
Width	770 mm (30.3 in)
Ground Clearance	135mm (5.3 inches)
Wet Weight	487 lb
