Yamaha FZ1 User Manual

PERIODIC MAINTENANCE AND MINOR REPAIR
6-42
6
ECA00065
CAUTION:
_
Do not overtighten the screw, other-
wise the lens may break.
_
EAU03962
Front wheel
To remove the front wheel
EW000122
WARNING
_
●
It is advisable to have a Yamaha
dealer service the wheel.
●
Securely support the motor-
cycle so that there is no danger
of it falling over.
_

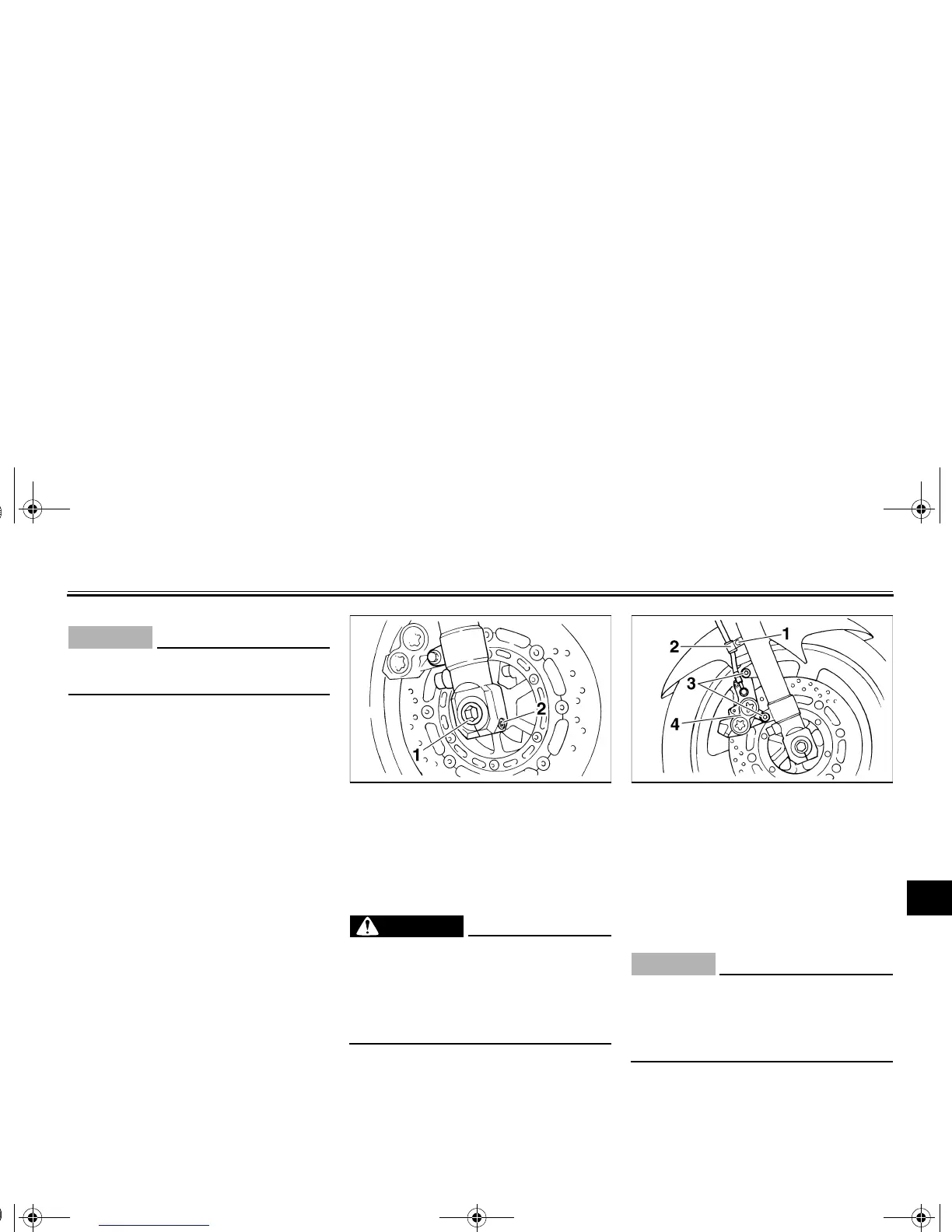

1. Place the motorcycle on the cen-
terstand.
2. Loosen the front wheel axle pinch
bolt, then the wheel axle and the
brake caliper bolts.
3. Remove the brake hose holder on
each side by removing the bolts.
4. Remove the brake caliper on each
side by removing the bolts.
ECA00046
CAUTION:
_
Do not apply the brake after the
brake calipers have been removed,
otherwise the brake pads will be
forced shut.
_
5. Pull the wheel axle out, and then
remove the wheel.
1. Wheel axle
2. Front wheel axle pinch bolt
1. Bolt
2. Brake hose holder
3. Bolt (× 2)
4. Brake caliper
U5LV12.book Page 42 Thursday, June 27, 2002 5:49 PM

Yamaha FZ1 Specifications

General

Displacement	998cc
Bore x Stroke	77.0 mm x 53.6 mm
Compression Ratio	11.5:1
Fuel Delivery	Fuel Injection
Transmission	6-speed
Final Drive	Chain
Front Tire	120/70-ZR17
Rear Tire	190/50-ZR17
Engine Type	Liquid-cooled, 4-stroke, DOHC, inline 4-cylinder
Ignition	TCI
Front Suspension	43mm inverted fork, fully adjustable
Rear Suspension	Single shock, adjustable preload and rebound damping
Front Brakes	Dual 320mm disc
Rear Brakes	245mm disc
Wheelbase	1, 460 mm (57.5 in)
Seat Height	815 mm (32.1 in)
Fuel Capacity	18 liters (4.8 gallons)
Curb Weight	487 lb
Torque	106 Nm (78.2 ft lbs) @ 8, 000 rpm
Length	2, 140 mm (84.3 in)
Width	770 mm (30.3 in)
Ground Clearance	135mm (5.3 inches)
Wet Weight	487 lb
