INSTRUMENT AND CONTROL FUNCTIONS
3-3
3
EAU04878
Fuel level warning light “”
This warning light comes on when the
fuel level drops below approximately
4 L (0.9 Imp gal, 1.1 US gal). When this
occurs, refuel as soon as possible.
The electrical circuit of the warning light
can be checked by turning the key to
“ON”.
If the warning light does not come on
for a few seconds, then go off, have a
Yamaha dealer check the electrical cir-
cuit.
EAU04289
Speedometer unit
The speedometer unit is equipped with
the following:
●
an odometer
●
two tripmeters
When set to “ODO”, the motorcycle’s
total mileage is indicated.
When set to “TRIP 1” or “TRIP 2”, the
motorcycle’s mileage since the tripme-
ter was last reset is indicated. The trip-
meters can be used together with the
fuel gauge to estimate the distance that
can be traveled on a full tank of fuel.
This information will enable you to plan
future fuel stops.
To set a mode
Push the “SELECT” button to change
between the odometer mode “ODO”,
and the tripmeter modes “TRIP 1” and
“TRIP 2” in the following order:
ODO
→
TRIP 1
→
TRIP 2
→
ODO
To reset a meter
To reset either tripmeter 1 or 2 to 0.0,
select either by pushing the “SELECT”
button, and then push the “RESET”
button for at least one second.

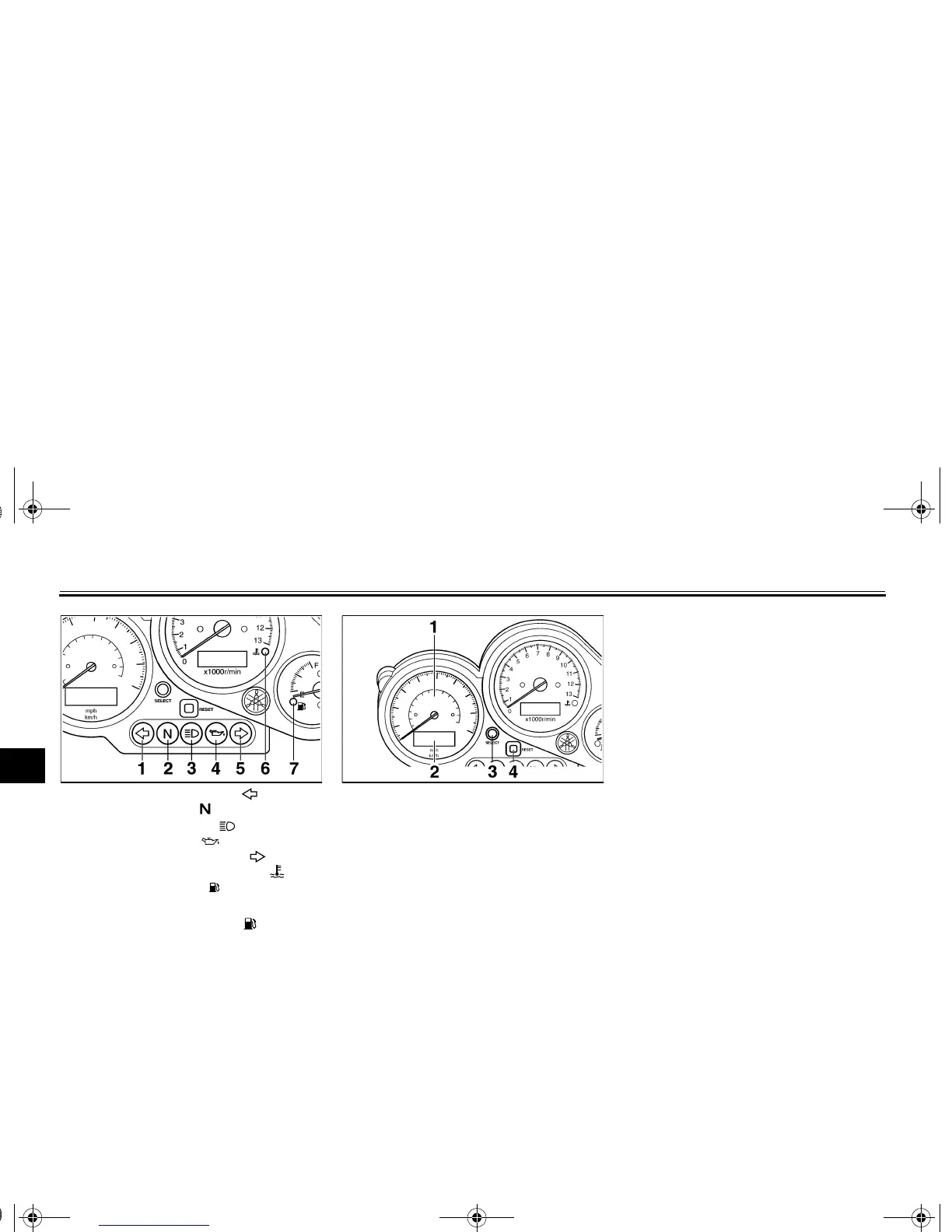

1. Left turn signal indicator light “”
2. Neutral indicator light “”
3. High beam indicator light “”
4. Oil level warning light “”
5. Right turn signal indicator light “”
6. Coolant temperature warning light “”
7. Fuel level warning light “”
1. Speedometer
2. Odometer/tripmeter
3. “SELECT” button
4. “RESET” button
U5LV12.book Page 3 Thursday, June 27, 2002 5:49 PM

Yamaha FZ1 Specifications

General

Displacement	998cc
Bore x Stroke	77.0 mm x 53.6 mm
Compression Ratio	11.5:1
Fuel Delivery	Fuel Injection
Transmission	6-speed
Final Drive	Chain
Front Tire	120/70-ZR17
Rear Tire	190/50-ZR17
Engine Type	Liquid-cooled, 4-stroke, DOHC, inline 4-cylinder
Ignition	TCI
Front Suspension	43mm inverted fork, fully adjustable
Rear Suspension	Single shock, adjustable preload and rebound damping
Front Brakes	Dual 320mm disc
Rear Brakes	245mm disc
Wheelbase	1, 460 mm (57.5 in)
Seat Height	815 mm (32.1 in)
Fuel Capacity	18 liters (4.8 gallons)
Curb Weight	487 lb
Torque	106 Nm (78.2 ft lbs) @ 8, 000 rpm
Length	2, 140 mm (84.3 in)
Width	770 mm (30.3 in)
Ground Clearance	135mm (5.3 inches)
Wet Weight	487 lb
