INSTRUMENT AND CONTROL FUNCTIONS
3-6
3
EAU00118
Handlebar switches
EAU03888
Dimmer switch “ / ”
Set this switch to “” for the high
beam and to “” for the low beam.
EAU03889
Turn signal switch “ / ”
To signal a right-hand turn, push this
switch to “”. To signal a left-hand
turn, push this switch to “”. When
released, the switch returns to the cen-
ter position. To cancel the turn signal
lights, push the switch in after it has re-
turned to the center position.
EAU00129
Horn switch “”
Press this switch to sound the horn.
EAU03890
Engine stop switch “ / ”
Set this switch to “” before starting
the engine. Set this switch to “” to
stop the engine in case of an emergen-
cy, such as when the motorcycle over-
turns or when the throttle cable is
stuck.
EAU00143
Start switch “”
Push this switch to crank the engine
with the starter.
EC000005
CAUTION:
_
See page 5-1 for starting instruc-
tions prior to starting the engine.
_

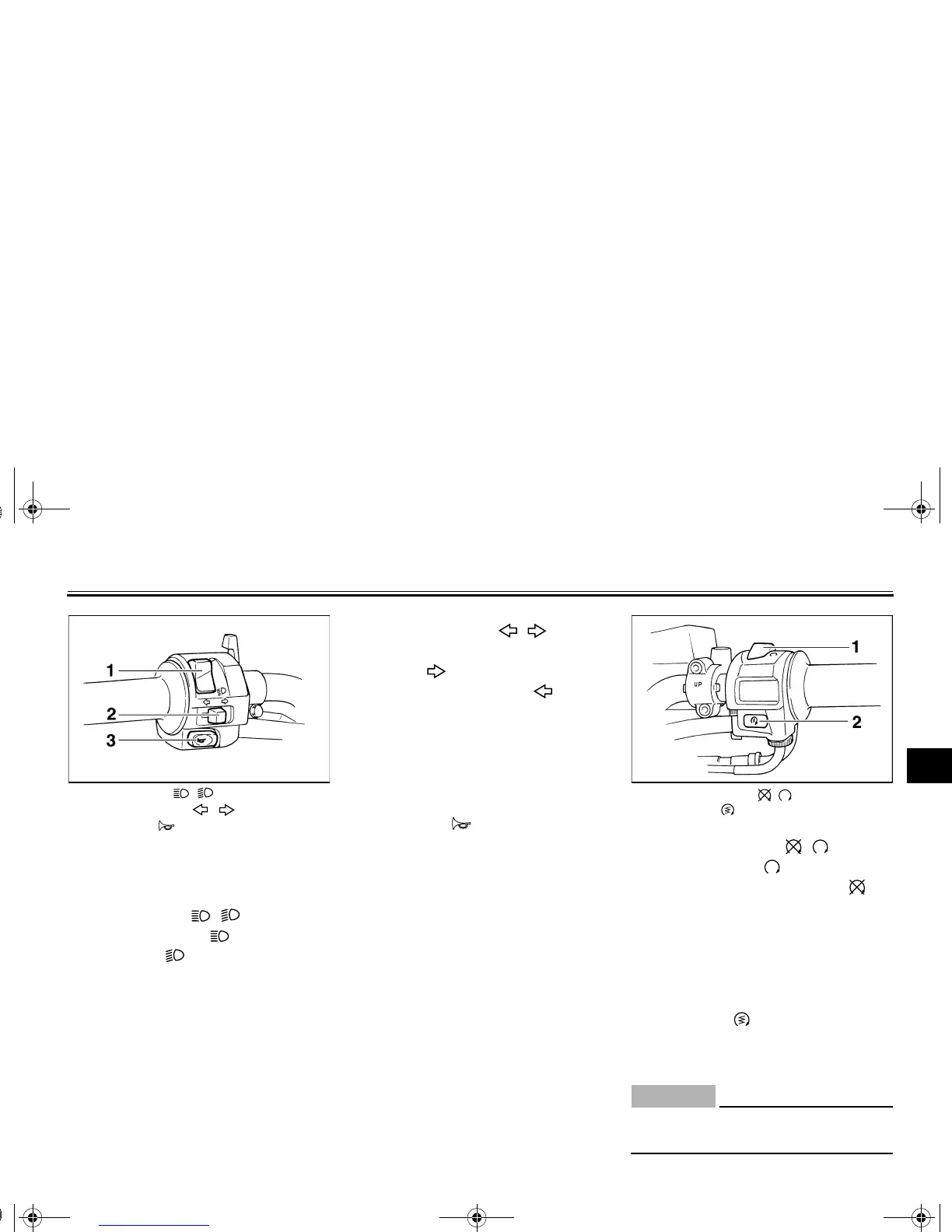

1. Dimmer switch “ / ”
2. Turn signal switch “ / ”
3. Horn switch “”
1. Engine stop switch “ / ”
2. Start switch “”
