PERIODIC MAINTENANCE AND MINOR REPAIR
6-21
6
ECA00089*
CAUTION:
_
The engine should never be operat-
ed without the air filter element in-
stalled, otherwise the pistons and/or
cylinders may become excessively
worn.
_
10. Install the air filter case cover by
installing the screws.
11. Place the rubber cover in the orig-
inal position.
12. Install the panels.
13. Install the fuel tank by installing the
bolts.
EWA00052
WARNING
_
●
Before installing the fuel tank,
make sure that the fuel hoses
are not damaged. If any fuel
hose is damaged, do not start
the engine but have a Yamaha
dealer replace the hose, other-
wise fuel may leak.
●
Make sure that the fuel hoses
are properly connected and
routed, and not pinched.
●
Be sure to place the fuel tank
breather hose in the original po-
sition.
_
14. Install the seat.
EAU00628
Adjusting the carburetors
The carburetors are important parts of
the engine and emission control sys-
tem, which require very sophisticated
adjustment. Therefore, all carburetor
adjustments should be left to a
Yamaha dealer, who has the neces-
sary professional knowledge and
experience.

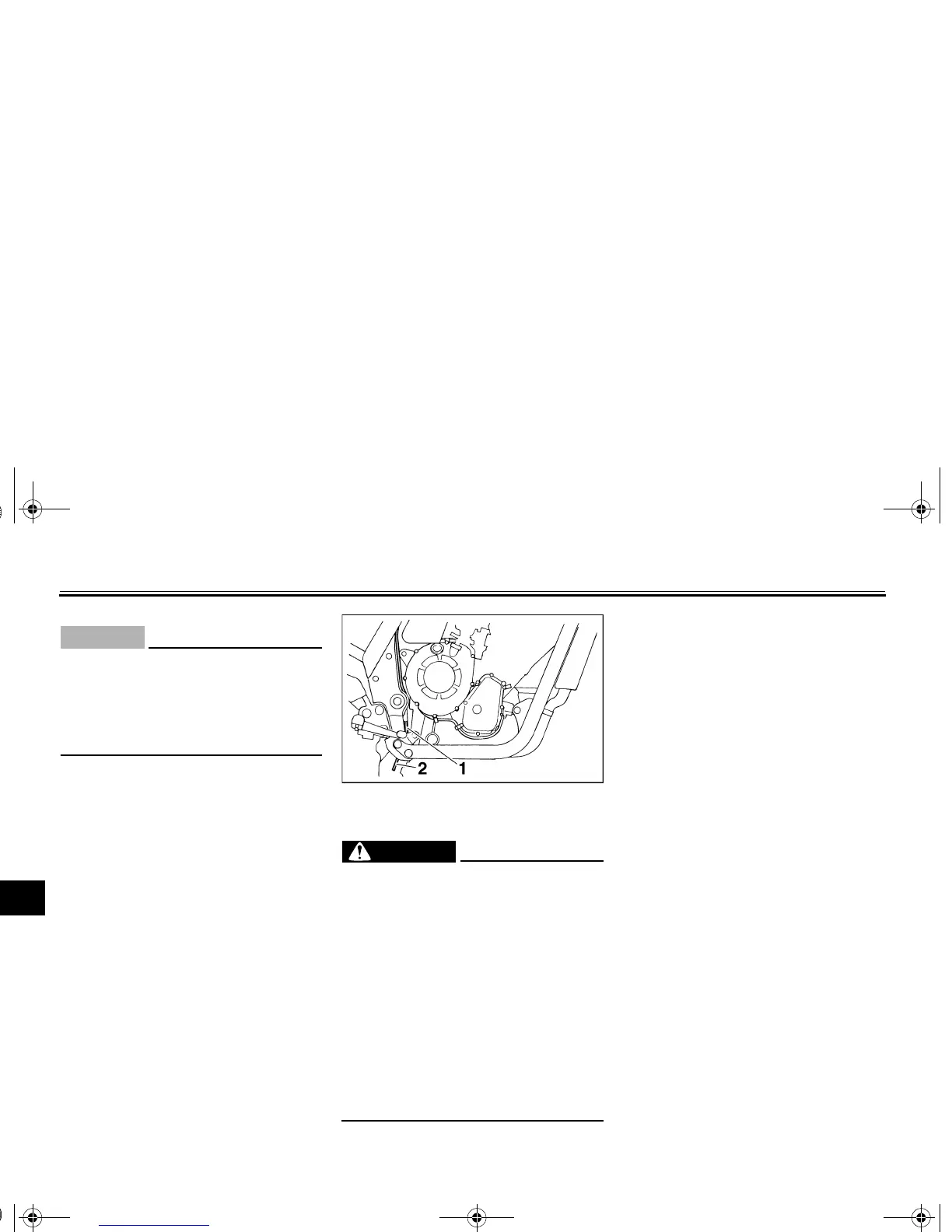

1. Fuel tank breather hose
2. Original position (white mark)
