Yamaha FZ1 User Manual

PERIODIC MAINTENANCE AND MINOR REPAIR
6-27
6
EAU04005
Adjusting the clutch lever free
play
The clutch lever free play should mea-
sure 10–15 mm (0.4–0.6 in) as shown.
Periodically check the clutch lever free
play and, if necessary, adjust it as fol-
lows.
To increase the clutch lever free play,
turn the adjusting bolt in direction
a
.
To decrease the clutch lever free play,
turn the adjusting bolt in direction
b
.
NOTE:
_
If the specified free play cannot be ob-
tained as described above or if the
clutch does not operate correctly, have
a Yamaha dealer check the internal
clutch mechanism.
_
EAU00712
Adjusting the brake pedal
position
The top of the brake pedal should be po-
sitioned approximately 43 mm (1.7 in)
below the top of the footrest as shown.
Periodically check the brake pedal posi-
tion and, if necessary, have a Yamaha
dealer adjust it.

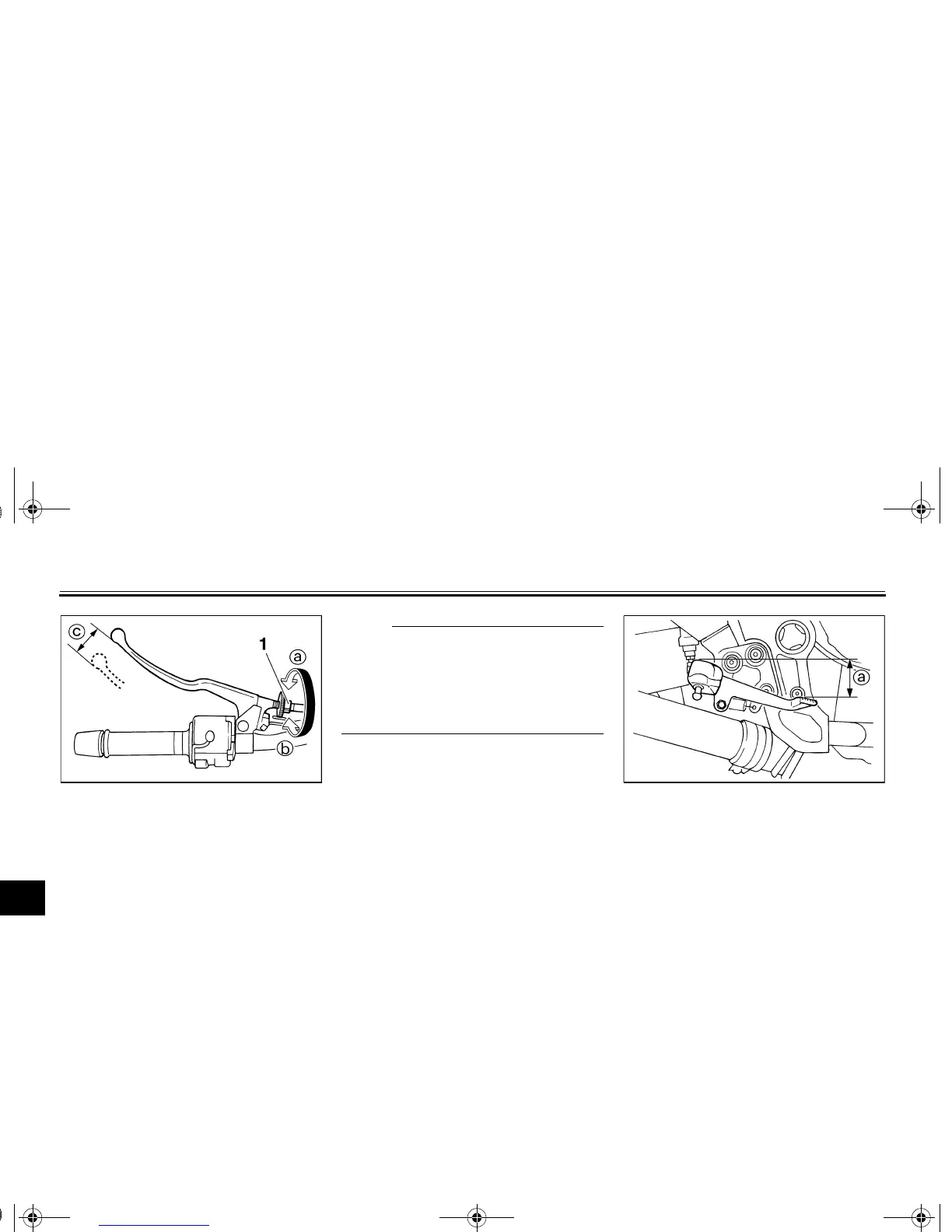

1. Clutch lever free play adjusting bolt
c. Clutch lever free play
a. Distance between brake pedal and footrest
U5LV12.book Page 27 Thursday, June 27, 2002 5:49 PM

Yamaha FZ1 Specifications

General

Displacement	998cc
Bore x Stroke	77.0 mm x 53.6 mm
Compression Ratio	11.5:1
Fuel Delivery	Fuel Injection
Transmission	6-speed
Final Drive	Chain
Front Tire	120/70-ZR17
Rear Tire	190/50-ZR17
Engine Type	Liquid-cooled, 4-stroke, DOHC, inline 4-cylinder
Ignition	TCI
Front Suspension	43mm inverted fork, fully adjustable
Rear Suspension	Single shock, adjustable preload and rebound damping
Front Brakes	Dual 320mm disc
Rear Brakes	245mm disc
Wheelbase	1, 460 mm (57.5 in)
Seat Height	815 mm (32.1 in)
Fuel Capacity	18 liters (4.8 gallons)
Curb Weight	487 lb
Torque	106 Nm (78.2 ft lbs) @ 8, 000 rpm
Length	2, 140 mm (84.3 in)
Width	770 mm (30.3 in)
Ground Clearance	135mm (5.3 inches)
Wet Weight	487 lb
