INSTRUMENT AND CONTROL FUNCTIONS

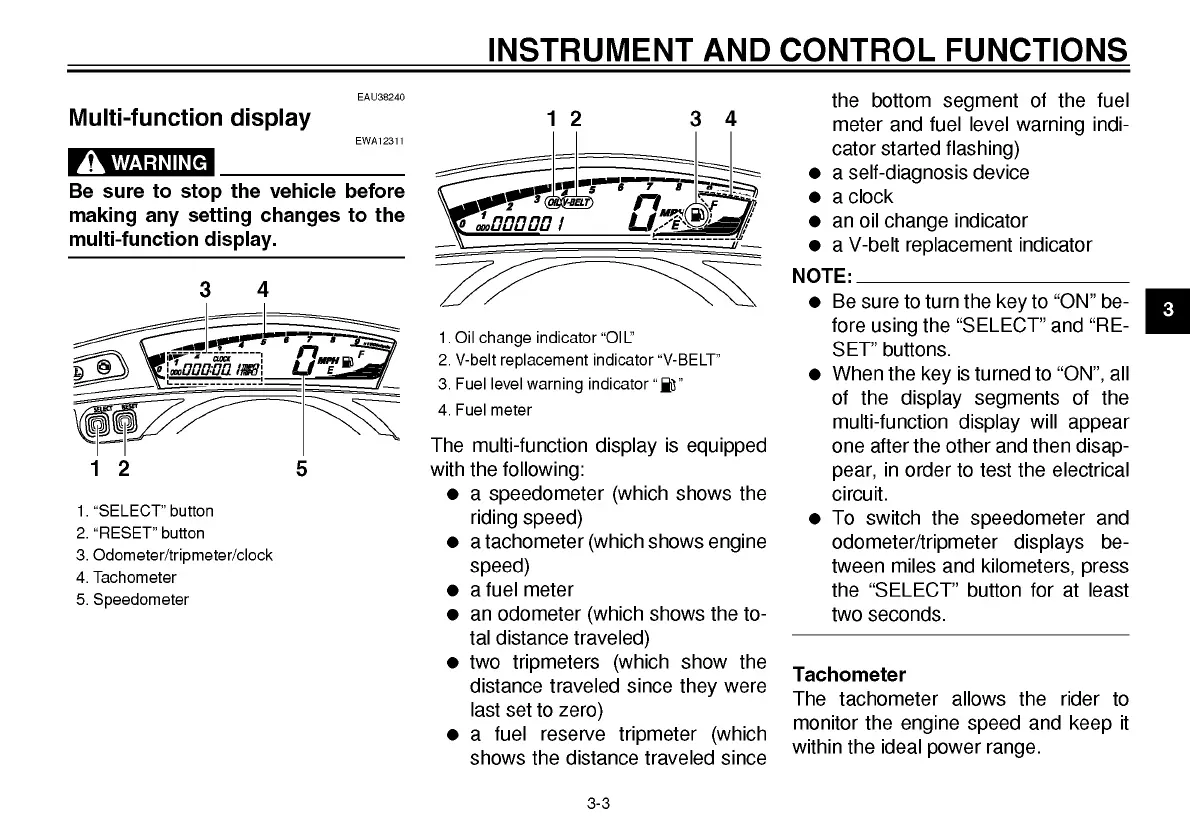

Multi-function display
A WARNING
EAU38240
EWA12311
Be sure to stop the vehicle before
making any setting changes to the
multi-function display.
1 2
3 4
the bottom segment of the fuel
meter and fuel level warning
indi-
cator started flashing)
a self-diagnosis device
•
• a clock
• an oil change indicator
• a V-belt replacement indicator
1.
“SELECT” button
2.
“RESET” button
3. Odometer/tripmeter/clock
4.
Tachometer
5. Speedometer
1.
Oil change indicator “OIL”
2.
V-belt replacement indicator “V-BELT”
3. Fuel level warning indicator “JjS”
4.
Fuel meter
The multi-function display is equipped
with the following:
• a speedometer (which shows the
riding speed)
• a tachometer (which shows engine
speed)
• a fuel meter
• an odometer (which shows the to-
tal distance traveled)
• two tripmeters (which show the
distance traveled since they were
last set to zero)
• a fuel reserve tripmeter (which
shows the distance traveled since
NOTE:.
• Be sure to turn the key to “ON” be-
fore using the “SELECT” and “RE-
SET” buttons.
• When the key is turned to “ON”, all
of the display segments of the
multi-function display will appear
one after the other and then disap-
pear, in order to test the electrical
circuit.
• To switch the speedometer and
odometer/tripmeter displays be-
tween miles and kilometers, press
the “SELECT” button for at least
two seconds.
Tachometer
The tachometer allows the rider to
monitor the engine speed and keep it
within the ideal power range.
3
3-3
