Yamaha Morphous CP250W User Manual

PERIODIC MAINTENANCE AND MINOR REPAIR
EAU38221

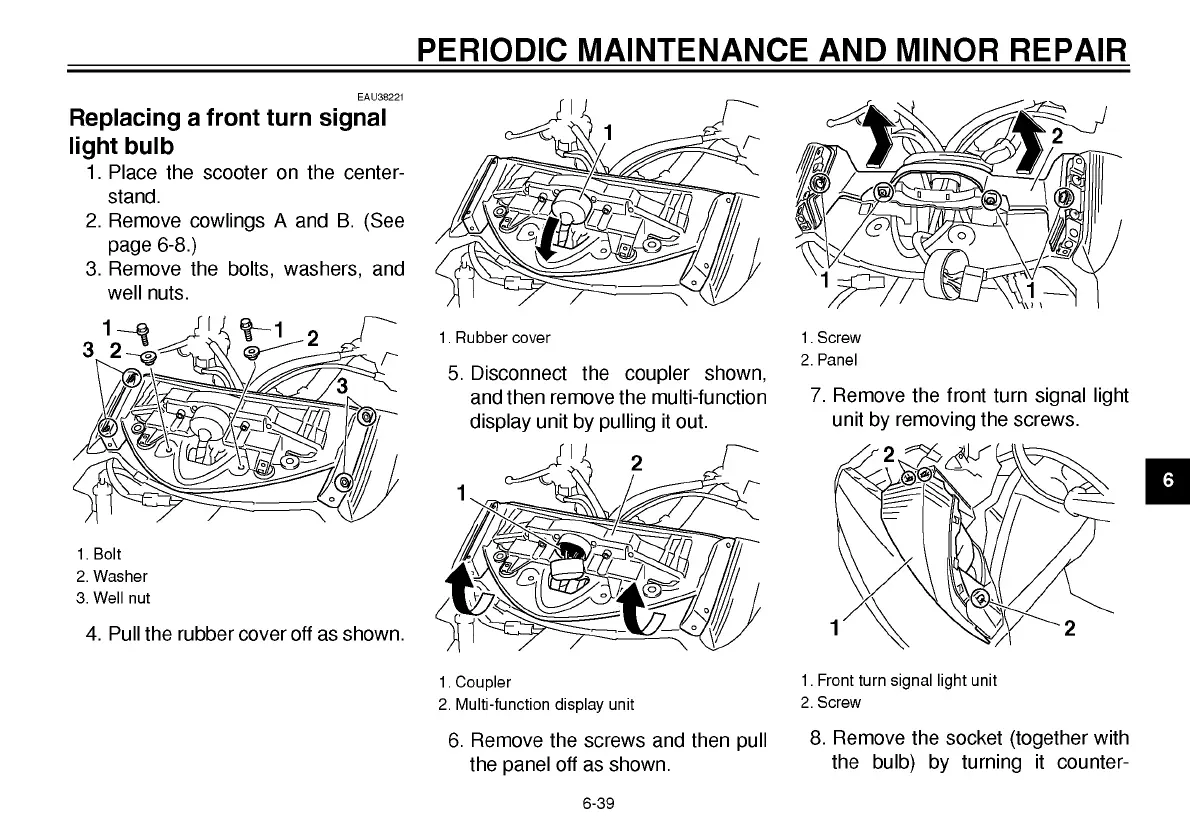

Replacing a front turn signal
light bulb
1. Place the scooter on the center-
stand.
2. Remove cowlings A and B. (See
page 6-8.)
3. Remove the bolts, washers, and
well nuts.
1. Bolt
2. Washer
3. Well nut
4. Pull the rubber cover off as shown.
1. Rubber cover
5. Disconnect the coupler shown,
and then remove the multi-function
display unit by pulling it out.
1. Screw
2. Panel
7. Remove the front turn signal light
unit by removing the screws.
6
1. Coupler
2. Multi-function display unit
6. Remove the screws and then pull
the panel off as shown.
6-39
1. Front turn signal light unit
2. Screw
8. Remove the socket (together with
the bulb) by turning it counter-
