PERIODIC MAINTENANCE AND MINOR REPAIR
EAU38231

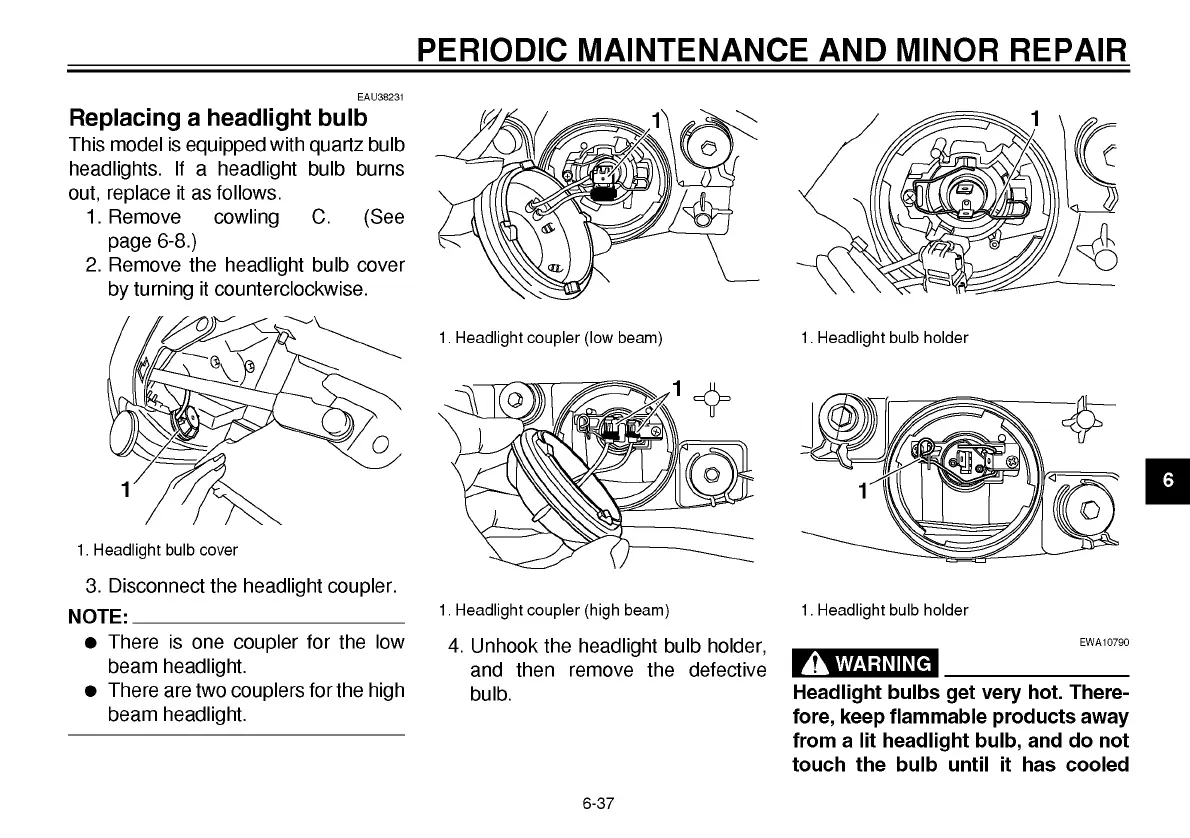

Replacing a headlight bulb
This model is equipped with quartz bulb
headlights. If a headlight bulb burns
out, replace it as follows.
1.
Remove cowling C. (See
page 6-8.)
2.
Remove the headlight bulb cover
by turning it counterclockwise.
Wjk
s^
1\
r©i
^1
X2rj
^1
V-
1.
Headlight bulb holder
1.
Headlight bulb cover
3. Disconnect the headlight coupler.
NOTE:.
1.
Headlight coupler (high beam)
1.
Headlight bulb holder
• There is one coupler for the low
beam headlight.
• There are two couplers for
the
high
beam headlight.
4.
Unhook the headlight bulb holder,
and then remove the defective
bulb.
EWA10790
A WARNING
Headlight bulbs get very hot. There-
fore,
keep flammable products away
from a lit headlight bulb, and do not
6
touch the bulb until it has cooled
6-37
