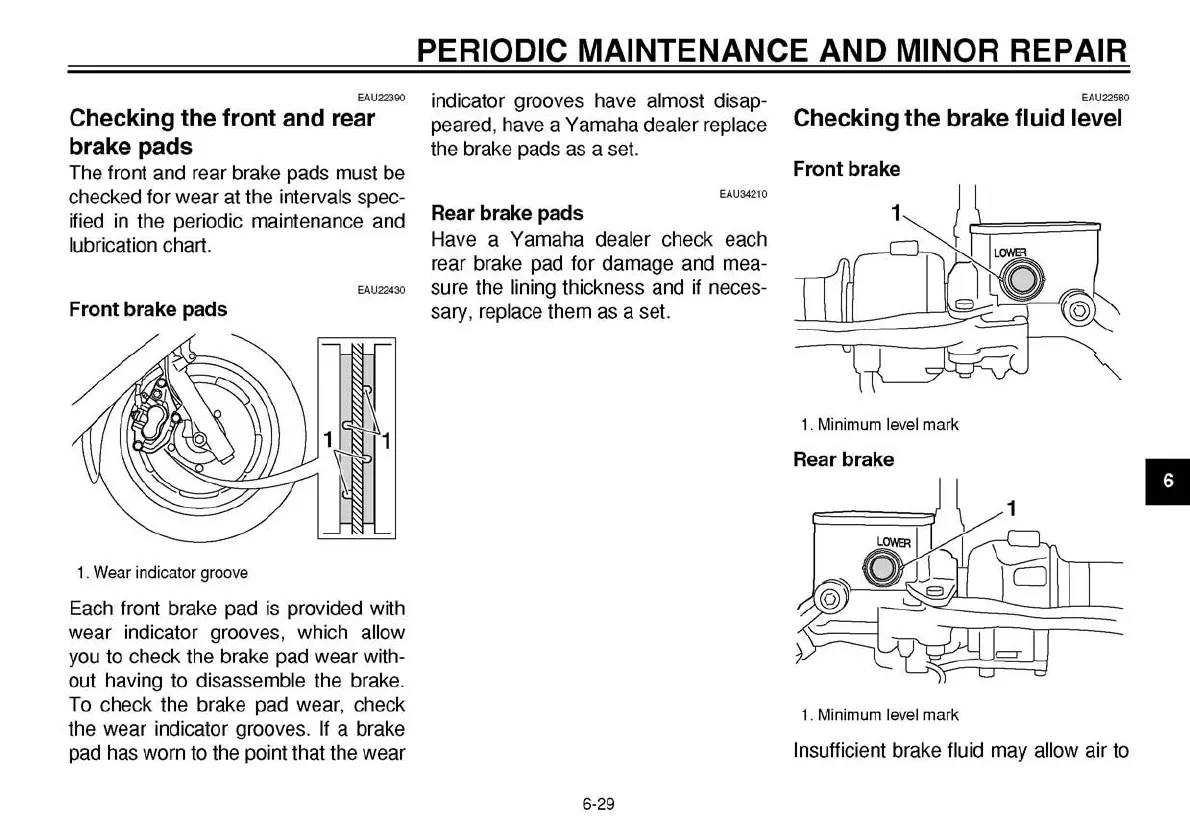

PERIODIC MAINTENANCE AND MINOR REPAIR
EAU22390
Checking the front and rear
brake pads
The front and rear brake pads must be
checked for wear at the intervals spec-
ified in the periodic maintenance and
lubrication chart.
Front brake pads
EAU22430
/k%^\ "Hif"
<fljj11
\^ ^/ _r?H_
1.
Wear indicator groove
Each front brake pad is provided with
wear indicator grooves, which allow
you to check the brake pad wear
with-
out having to disassemble the brake.
To check the brake pad wear, check
the wear indicator grooves. If a brake
pad has worn to the point that the wear
indicator grooves have almost disap-
peared,
have a Yamaha dealer replace
the brake pads as a set.
EAU22580
Checking the brake fluid level
Front brake
EAU34210
Rear brake pads
Have a Yamaha dealer check each
rear brake pad for damage and mea-
sure the lining thickness and if neces-
sary, replace them as a set.
1.
Minimum level mark
Rear brake
6
1.
Minimum level mark
Insufficient brake fluid may allow air to
6-29
