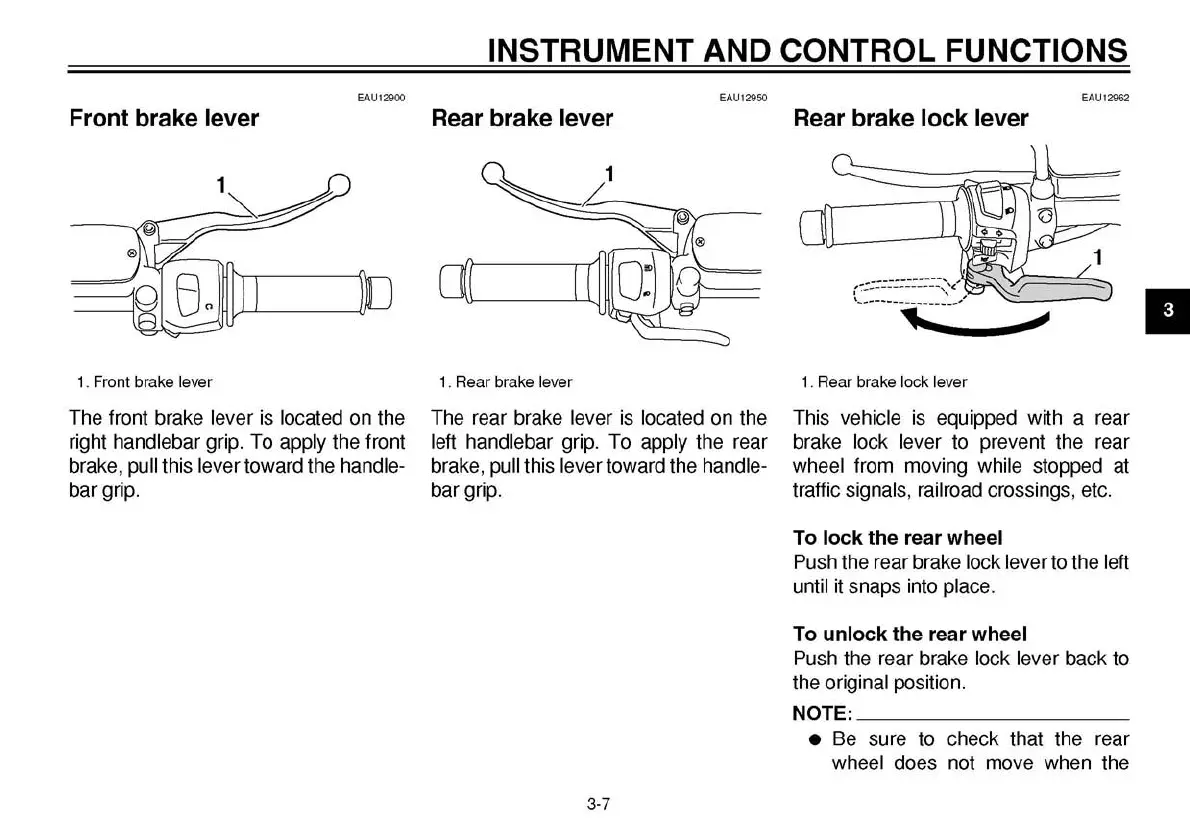

INSTRUMENT AND CONTROL FUNCTIONS
EAU12900 EAU12950 EAU12962
Front brake lever Rear brake lever Rear brake lock lever
%^
(f
(
E^ E^
1.
Front brake lever
The front brake lever is located on the
right handlebar grip. To apply the front
brake,
pull this lever toward the handle-
bar grip.
1.
Rear brake lever
The rear brake lever is located on the
left handlebar grip. To apply the rear
brake,
pull this lever toward the handle-
bar grip.
1.
Rear brake lock lever
This vehicle is equipped with a rear
brake lock lever to prevent the rear
wheel from moving while stopped at
traffic signals, railroad crossings, etc.
To lock the rear wheel
Push the rear brake lock lever
to
the left
until it snaps into place.
To unlock the rear wheel
Push the rear brake lock lever back to
the original position.
NOTE:
• Be sure to check that the rear
wheel does not move when the
3
3-7
