PERIODIC MAINTENANCE AND MINOR REPAIR
EAU18781
6

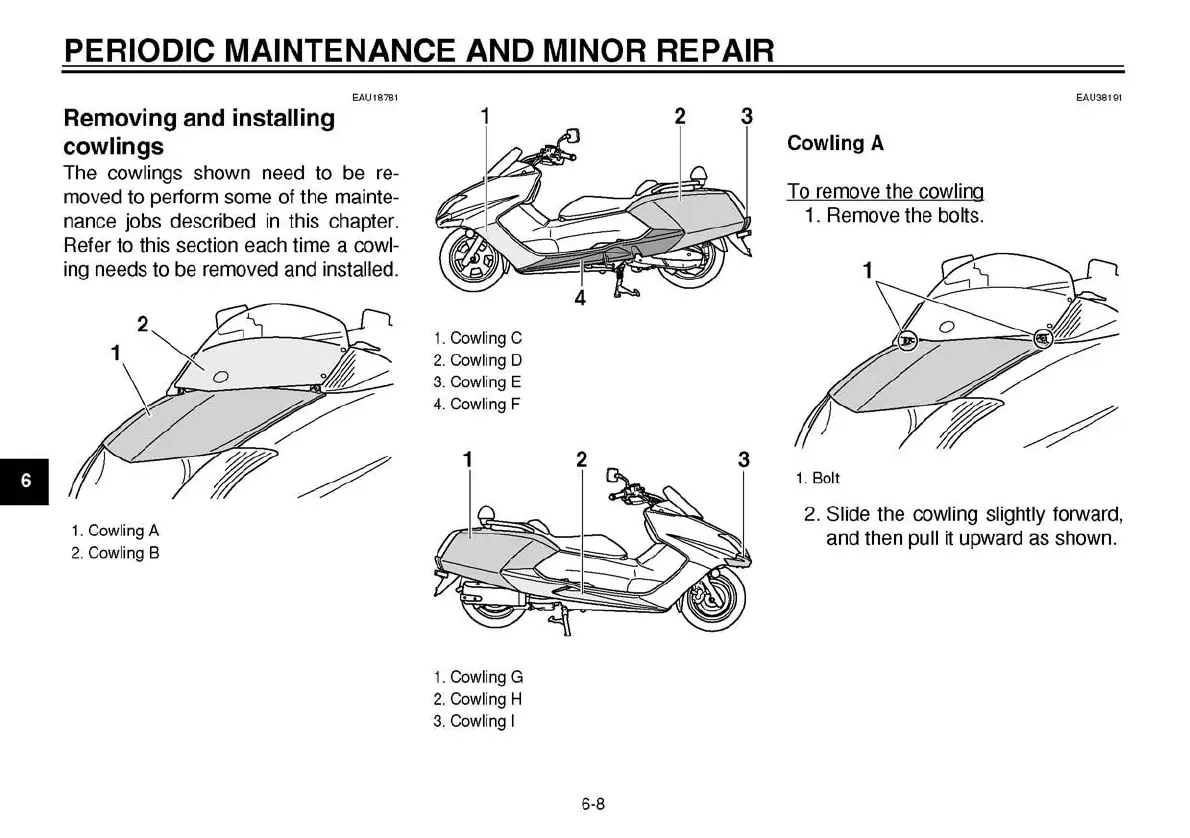

Removing and installing
cowlings
The cowlings shown need to be re-
moved to perform some of the mainte-
nance jobs described in this chapter.
Refer to this section each time a cowl-
ing needs to be removed and installed.
1.
Cowling A
2.
Cowling B
EAU38191
1.
Cowling C
2.
Cowling D
3. Cowling E
4.
Cowling F
1.
Cowling G
2.
Cowling H
3. Cowling I
Cowling A
To remove the cowling
1.
Remove the bolts.
1.
Bolt
2.
Slide the cowling slightly forward,
and then pull it upward as shown.
6-8
