Yealink SIP-T29G User Manual

User Guide for the SIP-T29G IP Phone
188
The default channel is 0.
7. Click Confirm to accept the change.
Note
Using Multicast Paging
To send RTP stream via a multicast paging key when the receiver’s phone is idle:
1. Press the multicast paging key when the phone is idle.
The phone sends RTP to a preconfigured multicast address (IP: Port).
Both the sender’s and receiver’s phones play a warning tone and the receiver automatically
answers the multicast RTP session in the speakerphone mode.
The multicast paging key LED illuminates solid green.

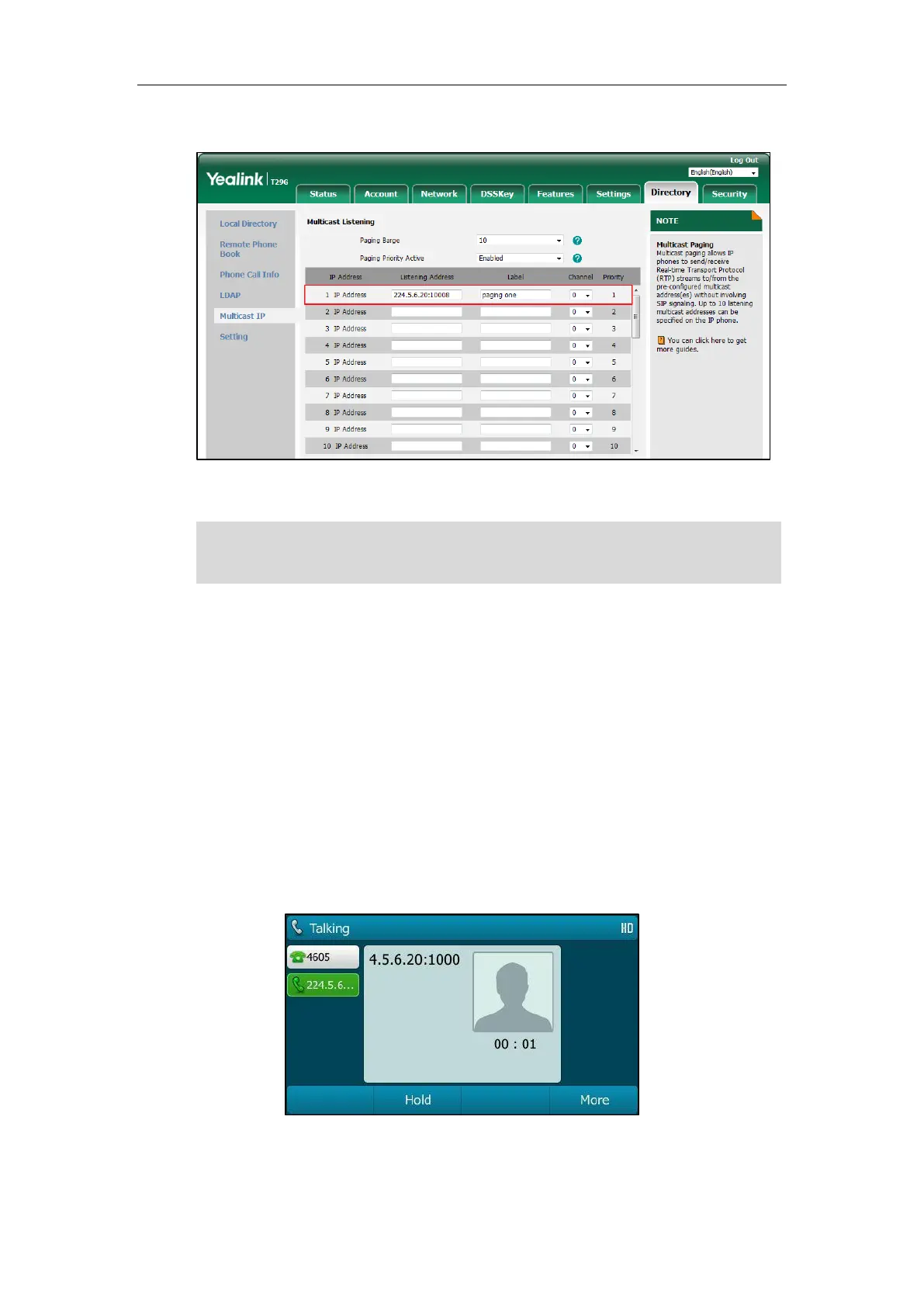

The following figure shows a multicast RTP session on the phone:
The priorities of listening addresses are predefined: 1 with the highest priority, 31 with the lowest.
Multicast listening addresses are configurable via web user interface only.

Yealink SIP-T29G Specifications

General

Speakerphone	Yes
Voice codecs	G.711, G.722, G.723, G.726, G.729ab, iLBC
Dual-Tone Multi-Frequency (DTMF) modes	In-band, Out-of band, SIP info
Lines quantity	10 lines
Phonebook capacity	1000 entries
Number of VoIP accounts	16
Display diagonal	4.3 \
Display resolution	480 x 272 pixels
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	2
AC adapter input voltage	100 - 240 V
AC adapter output current	2 A
AC adapter output voltage	5 V
Power over Ethernet (PoE)	-
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	10 - 95 %
Handset type	Wired handset
Product type	IP Phone
Product color	Black
Number of handles included	1 pc(s)
Harmonized System (HS) code	85171800
Volume control	Buttons

Weight and Dimensions

Depth	213 mm
Width	244 mm
Height	185 mm
